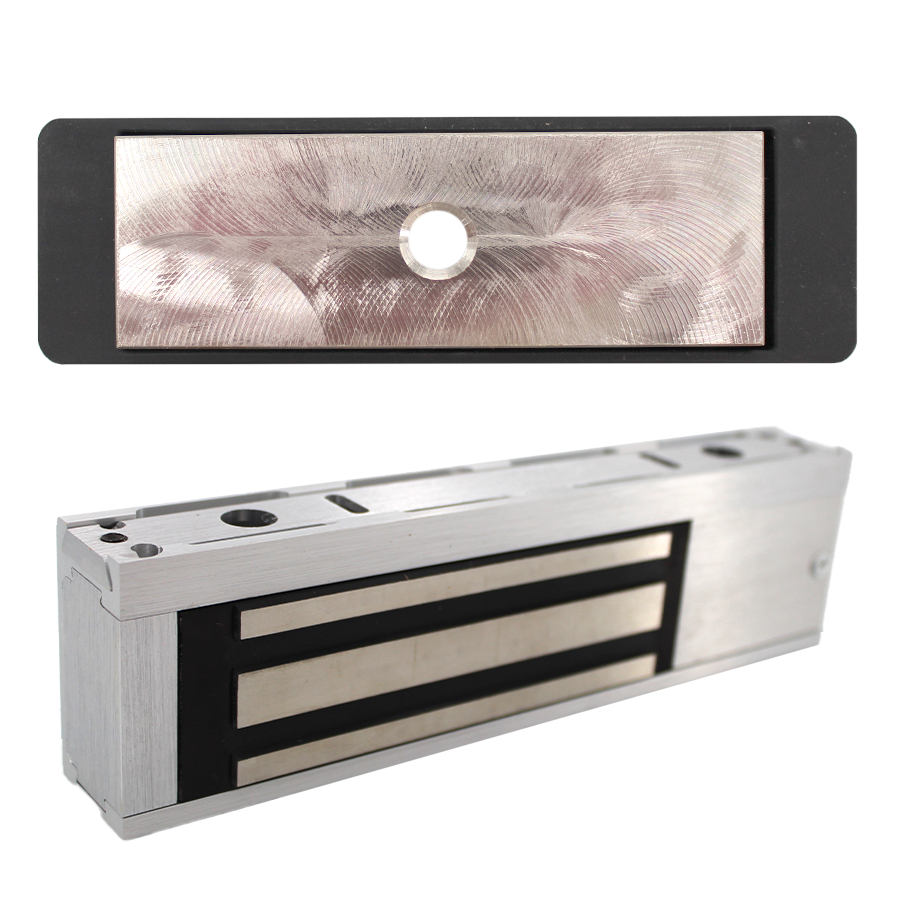

Schlage M420P-628 500lbs Electromagnetic Lock, 12/24VDC, MBS, RTD, DPS, Satin Aluminum

Schlage Electronic Security M420P-628 500lbs Single Electromagnetic Lock offers a robust solution for traffic control applications, ensuring your security needs are met with reliability and ease of installation. With a substantial 500-pound holding force, this lock is designed to exceed industry standards, including UL 1034 and BHMA certifications. Featuring automatic voltage selection, the M420P-628 seamlessly adapts to both 12 and 24 VDC systems, simplifying wiring with built-in polarity protection. The innovative bayonet mount system allows for hands-free installation, making it easier for professionals to secure the lock without hassle. Its symmetrical design and field-selectable handing enable optimal placement and flexibility across various door types. This model also includes advanced features such as a Magnetic Bond Sensor (MBS), an adjustable Relock Time Delay (RTD), and a Door Position Switch (DPS), enhancing integration with access control systems. Constructed with a durable aluminum housing in a sleek satin finish (628/US28), the M420P-628 is built to withstand a temperature range of 0° to 49°C (32° to 120°F). For various applications, optional mounting kits are available, including those for top jamb and glass doors. Choose the Schlage M420P-628 for a secure, efficient, and user-friendly locking solution.

500lbs Single Electromagnetic Lock, 12/24VDC Automatic Voltage Selection (AVS), with Magnetic Bond Sensor (MBS), Adjustable Relock Time Delay (RTD) and Door Position Switch (DPS), 628/US28 Satin Aluminum

M400 Series electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy-to-install, and secure. The unique bayonet mounting feature makes installation easier, allowing the installer to have their hands free during the mounting process. All M400 series electromagnetic locks are symmetrical with field selectable handing, allowing optimum placement of the magnet, no matter the application. They are designed to provide automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. M420 models are tested and certified to meet or exceed UL 1034 and BHMA 500lb hold force requirements. The M420 electromagnetic locks come in four configurations to meet your specific security needs. Single and double door models are offered in standard configurations. Plus versions of these models with "P" designations add intelligent sensing and reporting features needed to integrate with access control systems along with additional available options. Kits are available for top jam, double door, and glass door applications.

Features:

• 500lb hold force rating for traffic control applications
• "Plus" models offer magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS)
• Automatic voltage selection (AVS)
• Symmetrical design with field-selectable handing for optimum placement
• Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing
• Armature mount pivot feature compensates for slight opening imperfections
• Optional mounting kits available for top jamb mount, double door and Herculite brand glass doors
• Aluminum housing in 628 satin finish
• ANSI/BHMA 156.23 grade 1, UL 1034, UL 10C, UL 294, cUL, CFSM certifications
• Limited lifetime warranty on magnetic coil assembly

M420/M420P Specifications:

• Holding force: meets or exceeds BHMA standard of 500 lbs.
• Door Type: Single
• Input Voltage (auto selected): 12/24 VDC
• Current Draw: .75A @ 12 VDC, .38A @ 24 VDC
• Height: 2-1/2"
• Length: 9"
• Depth: 1-3⁄8"
• Weight (Approximate): 6 lbs
• Temperature: 0° to 49°C (32° to 120° F)
• Wire Gauge: 14-22 AWG

Optional Accessories:

• Glass door bracket kit designed for use with Herculite brand glass doors.
• Top jamb (inswinging doors) kit.
• Double door connector kit (converts two single magnetic locks to a double).
