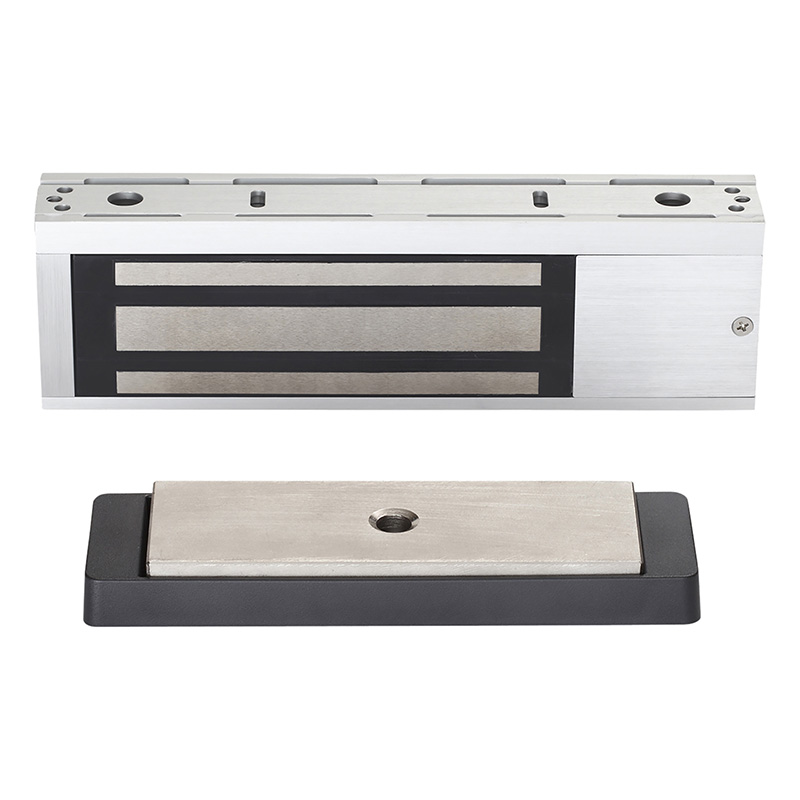

Schlage Electronics M450PATSLED Single High Security Magnetic Lock with Door Status Monitor offers an exceptional level of security for various applications, boasting a robust 1000 lb. hold force rating. Ideal for commercial settings, this magnetic lock features a magnetic bond sensor (MBS), adjustable relock time delay (RTD), and a door position switch (DPS), ensuring that your premises remain secure while providing flexibility in operation. Designed with user convenience in mind, the M450PATSLED has an automatic voltage selection (AVS) feature, allowing it to adapt seamlessly to different power supply requirements at 12 or 24 VDC. The symmetrical design includes field-selectable handing, enabling optimal placement on any door. Installation is simplified with a bayonet mount, which eliminates the need to hold the lock overhead during setup, making it a time-efficient choice for building professionals. Constructed from durable aluminum, this magnetic lock is designed for longevity and reliability. It measures 3" x 10-1/4" x 1-3/4" and is suitable for doors with a thickness of 1-3/4". Backed by a limited lifetime magnetic warranty and a one-year electro-mechanical warranty, the Schlage M450PATSLED ensures peace of mind and security for your properties.
Single High Security Magnetic Lock with Door Status Monitor Magnetic Bond Sensor and Relocking Time Delay with Anti Tamper Switch and MBS Indicator
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Amp Draw: 750/380mA @ 12/24 VDC Current
Base Material: Aluminum
Base Series: M400 Series
Category: Commercial Electronic Devices
Commercial Residential: Commercial
Dimension: 3" x 10-1/4" x 1-3/4"
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish Description: Satin Aluminum
Finish Family: Matte Silver
Fire Rated: No
Grade: Grade 1
Hazardous Material: NO
Holding Force: 1000 Pound
Installation: Commercial
Limited Warranty: Limited Warranty
Magnet Size: 3" x 10-1/4" x 1-3/4"
Manufacturer Warranty: Limited Lifetime Magnetic and 1 Year Electro Mechanical Warranty
Material: Aluminum
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
Pack Qty: 1
Pbs Options: 22951026
Power Supply: Wired
Product Height: 3"
Product Length: 10.25"
Product Type Used With: Push Button, Reader, or Sensor
Product Width: 1.75"
Series: Schlage Electronics Electromagnetic Locks
Ship Weight: 10 lbs.
Subcategory: Maglocks
Subtype: Maglock
Switch Type: Door Position Switch
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034, UL 10C 3 hour fire rating
Ul Listing Type: UL 10C Listed, cUL
Unit of Measure: Each
