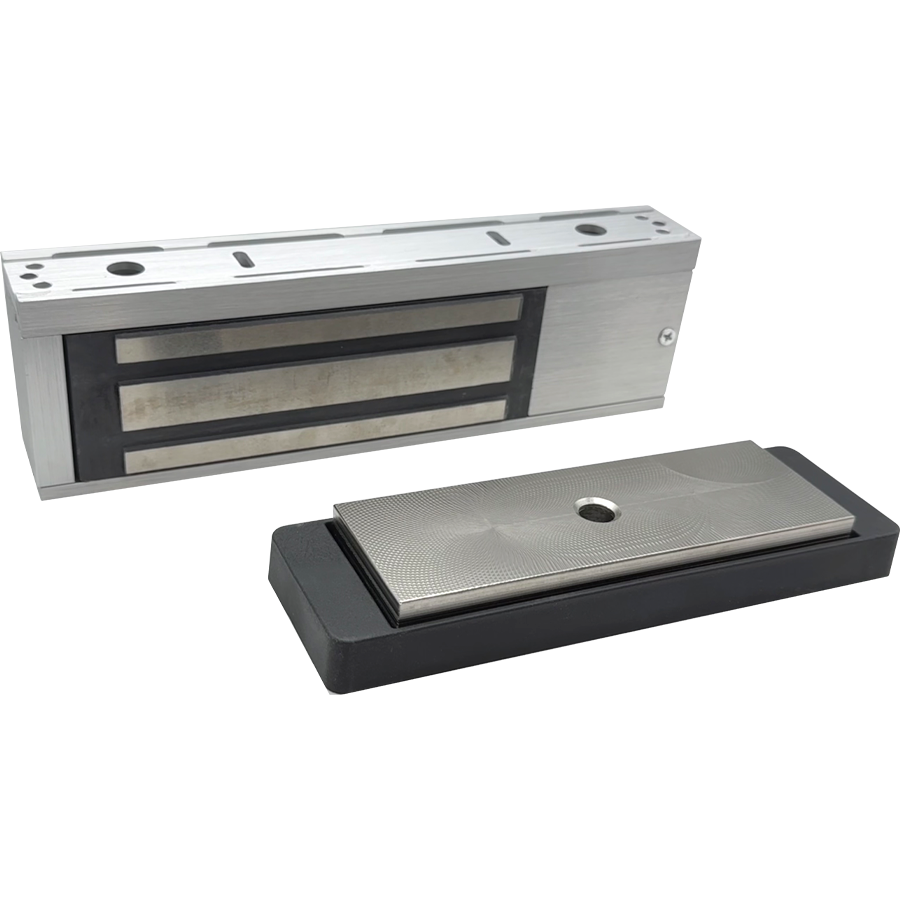

Schlage M452-628 1000lbs Double Electromagnetic Lock, AVS 12/24VDC, Satin Aluminum

Schlage Electronic Security M452-628 1000lbs Double Electromagnetic Lock is engineered for maximum security applications, making it an ideal choice for both residential and commercial environments. With a robust holding force of 1000 lbs per door leaf, this electromagnetic lock ensures that your entry points are secure against unauthorized access. The M452-628 features automatic voltage selection (AVS) for 12/24 VDC, simplifying installation and reducing wiring complexity. Its symmetrical design with field-selectable handing allows for flexible placement, while the innovative bayonet mount enables hands-free installation, enhancing both efficiency and safety during setup. The armature mount pivot feature compensates for minor door alignment issues, ensuring reliable operation at all times. Certifications such as ANSI/BHMA 156.23 grade 1 and UL 1034 affirm the M452-628’s superior quality and performance. This model also offers optional accessories, including a glass door bracket kit and a top jamb kit, catering to diverse installation needs. The sleek satin aluminum finish (628/US28) not only enhances aesthetic appeal but also ensures durability. Weighing approximately 20 lbs and operating in temperatures from 0° to 49°C, this lock is built to withstand various environmental conditions. Invest in the Schlage M452-628 for reliable, high-security access control solutions.

1000lbs (Per Leaf) Double Electromagnetic Lock for Maximum Security Applications, Automatic Voltage Selection (AVS) 12/24VDC, 628/US28 Satin Aluminum

M400 Series electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy-to-install, and secure. The unique bayonet mounting feature makes installation easier, allowing the installer to have their hands free during the mounting process. All M400 series electromagnetic locks are symmetrical with field-selectable handing, allowing optimum placement of the magnet, no matter the application. They are designed to provide automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. M450 models are tested and certified to meet or exceed UL 1034 and BHMA 1000 lb hold force requirements. The M450 electromagnetic locks come in four configurations to meet your specific security needs. Single and double door models are offered in standard configurations. Plus versions of these models with "P" designations add intelligent sensing and reporting features needed to integrate with access control systems along with additional available options. Kits are also available for top jam, double door, and glass door applications.

Features:

• 1000lb. hold force rating for high security applications
• "Plus" models offer magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS)
• Automatic voltage selection (AVS)
• Symmetrical design with field-selectable handing for optimum placement
• Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing
• Armature mount pivot feature compensates for slight opening imperfections
• Optional mounting kits available for top jamb mount, double door and Herculite brand glass doors
• Aluminum housing in 628 satin finish.
• ANSI/BHMA 156.23 grade 1, UL 1034, UL 10C, UL 294, cUL, CFSM certifications
• Limited lifetime warranty on magnetic coil assembly

M452/M452P Specifications:

• Holding Force: 1000 lbs. per door leaf
• Door Type: Double
• Input Voltage (auto selected): 12/24 VDC
• Current Draw: 1.5A @ 12 VDC, .75A @ 24 VDC
• Height: 3"
• Length: 20-9⁄16"
• Depth: 1-3⁄4"
• Weight (Approximate): 20 lbs
• Temperature: 0° to 49°C (32° to 120° F)
• Wire Gauge: 14-22 AWG

Optional Accessories:

• Glass door bracket kit designed for use with Herculite brand glass doors.
• Top jamb (inswinging doors) kit.
• Double door connector kit (converts two single magnetic locks to a double).
