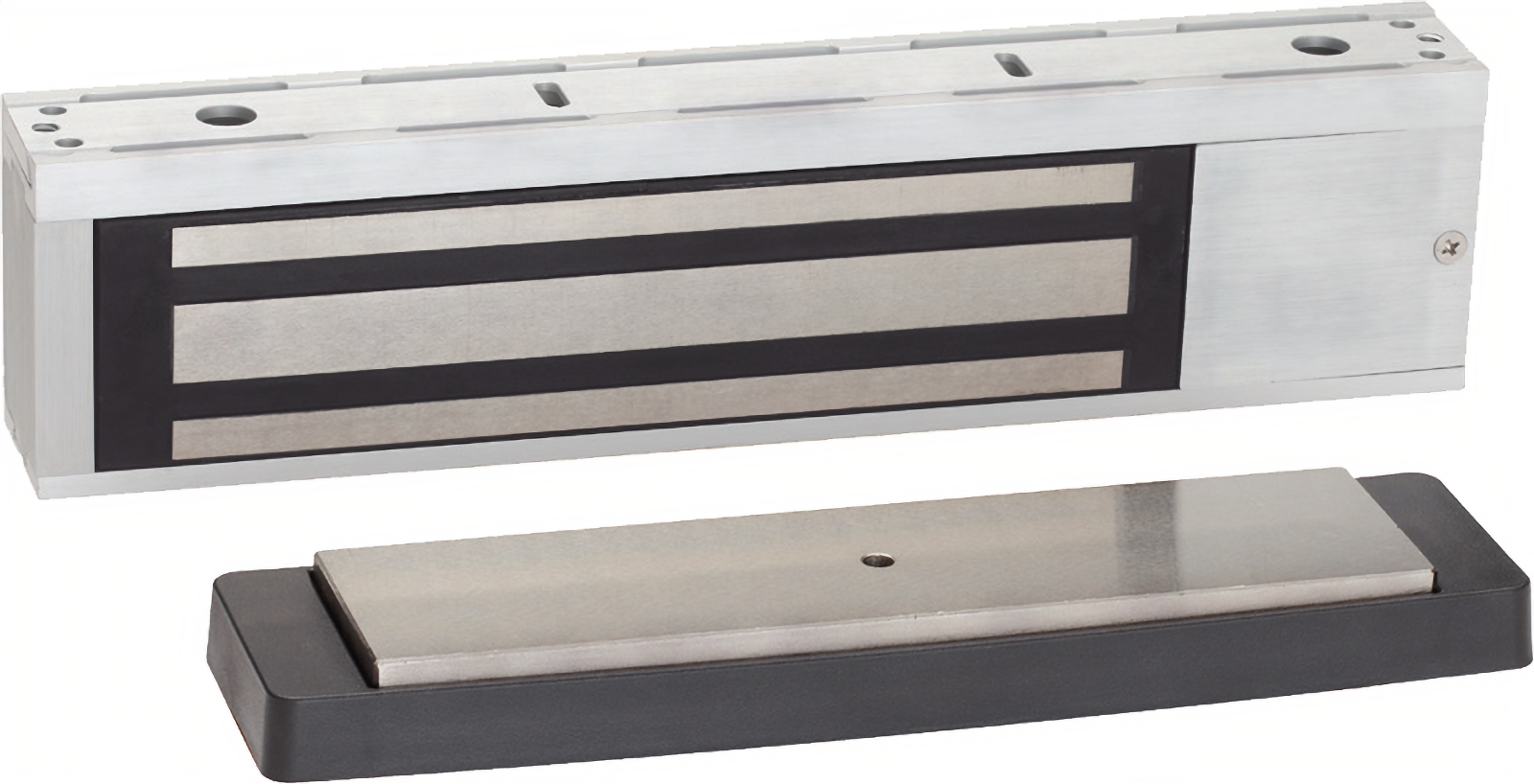

Schlage Electronic Security M490-628 is a robust single electromagnetic lock engineered for maximum security applications, offering a formidable 1500 lb hold force. Designed for ease of installation, the M490 features a unique bayonet mounting system that allows for hands-free operation during setup. This lock is symmetrical with field-selectable handing, ensuring optimal placement regardless of the application. With automatic voltage selection (AVS) for both 12 and 24 VDC, the M490 simplifies wiring and enhances compatibility. It also incorporates polarity protection, making it a reliable choice for various environments. The aluminum housing in a sleek 628 satin finish not only provides durability but also complements modern aesthetics. Certified to meet or exceed UL 1034 and ANSI/BHMA A156.23 Grade 1 standards, the M490-628 is built to withstand the demands of high-security installations. The armature mount pivot feature accommodates minor door imperfections, ensuring seamless operation. For added functionality, optional "Plus" models include advanced features like magnetic bond sensors and door position switches, enhancing integration with access control systems. Whether for commercial or residential use, the Schlage M490-628 is a trustworthy choice for anyone seeking reliable security solutions.

1500lbs Single Electromagnetic Lock for Maximum Security Applications, Automatic Voltage Selection (AVS) 12/24VDC, 628/US28 Satin Aluminum

M400 Series electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy-to-install, and secure. The unique bayonet mounting feature makes installation easier, allowing the installer to have their hands free during the mounting process. All M400 series electromagnetic locks are symmetrical with field-selectable handing, allowing optimum placement of the magnet no matter the application. They are designed to provide automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. M490 models are tested and certified to meet or exceed UL 1034 and BHMA 1500 lb hold force requirements. The M490 electromagnetic locks come in four configurations to meet your specific security needs. Single and double door models are offered in standard configurations. Plus versions of these models with "P" designations add intelligent sensing and reporting features needed to integrate with access control systems along with additional available options. Kits are also available for top jam, double door, and glass door applications.

Features:

• 1500 lb. hold force rating for maximum security applications
• "Plus" models offer magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS)
• Automatic voltage selection (AVS)
• Symmetrical design with field-selectable handing for optimum placement
• Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing
• Armature mount pivot feature compensates for slight opening imperfections
• Optional mounting kits available for top jamb mount, double door and Herculite glass doors
• Aluminum housing in 628 satin finish
• ANSI/BHMA 156.23 Grade 1, UL 1034, UL 10C, cUL, CFSM certifications
• Limited lifetime warranty on magnetic coil assembly

Specifications:

Resources

• Cut Sheet
