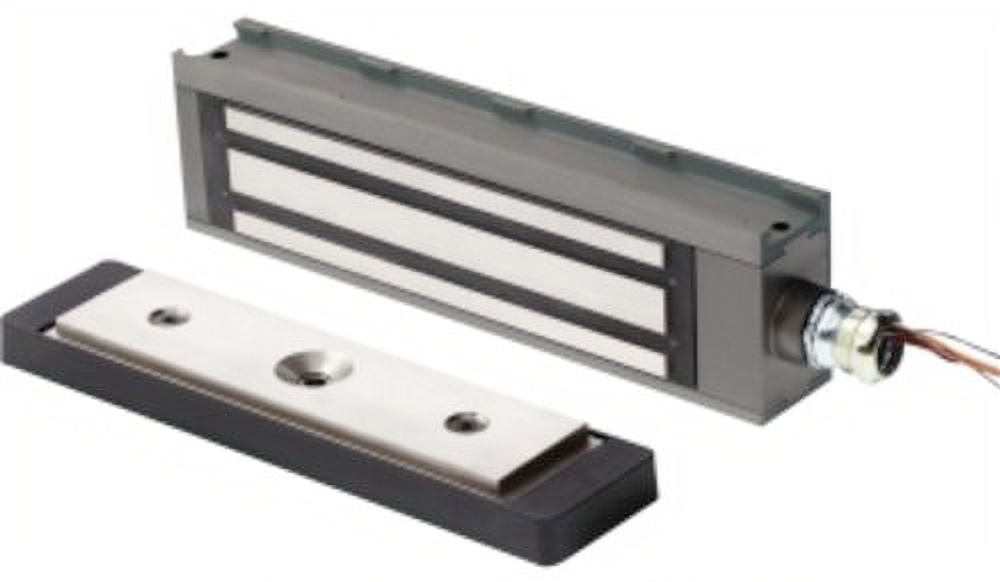

Schlage M490G-628 1500lbs Electromagnetic Lock, 12/24VDC, Weather Resistant for Gates

Schlage Electronic Security M490G-628 1500lbs Gate Electromagnetic Lock delivers unmatched security for your gates, whether sliding or swinging. With an impressive holding force of 1500 lbs, this electromagnetic lock is engineered to withstand the rigors of outdoor environments, featuring a corrosion-resistant electroless nickel plated finish that guarantees durability and low maintenance. Designed for versatility, the M490G can be field configured for either 12V or 24V DC operation, making it adaptable to various security setups. Equipped with a magnetic bond sensor (MBS) and a gate status monitor (DPS), this lock provides real-time feedback on the security status, ensuring your gate remains secure. The universal mounting brackets simplify installation, allowing for a range of setup options on different gate frames. The lock’s built-in voltage spike suppressor protects your investment from electrical surges, while the 1/2" EMT compression fitting safeguards the hook-up wiring from weather and vandalism. The M490G is designed to accommodate gate misalignment, eliminating common installation issues. With a temperature range of -31° to 151°F and an ANSI/BHMA 156.23 outdoor rating, this lock is built to perform reliably in various weather conditions. Elevate your security with the Schlage M490G-628, a robust solution for demanding applications.

1500lbs Gate Electromagnetic Lock, 12/24VDC Field Selectable, Corrosion and Weather Resistant, Swinging or Sliding Gates, 628/US28 Satin Aluminum

The M490G is a weather resistant electromagnetic gate lock with 1500lbs of holding force designed for use on all types of sliding and swinging gates. As a high security magnetic lock, it can accommodate misalignment problems while supplying superior holding force. A 1⁄2" compression connector is provided for installation of 1⁄2" EMT conduit, ensuring protection of hook-up wiring from weather and vandalism. Heavy-duty plating resists corrosion of mating surfaces, providing a low maintenance locking device. A modified top jamb mounting bracket allows a single M490G to be mounted in a variety of positions. The M490G gate lock may be mounted to any gate frame or post. Special brackets may be required to adapt the lock to a particular frame or post. It is important that the lock is mounted so that the armature pulls straight back from the magnet face. The M490G can be field configured for either 12 or 24 VDC operation. Magnetic bond sensor (MBS) and gate status monitor (DPS) are standard.

Features:

• 1500lb hold force rating
• Magnetic bond sensor (MBS) and gate status monitor (DPS)
• Field selectable 12 or 24VDC operation
• Built-in voltage spike suppressor
• Electroless nickel plated finish
• Corrosion and weather resistant for exterior use
• Universal mounting brackets for swinging or sliding gate applications
• 1⁄2" EMT compression fitting protects hookup wires from weather and vandalism
• Two foot wire leads
• Accommodates gate misalignment
• No moving parts - low maintenance
• Limited lifetime warranty on magnetic coil assembly
• ANSI/BHMA 156.23 Outdoor rated

Additional Features:

• Magnetic bond sensor (MBS) monitors the strength of the bond between the lock and armature so you know the door is secure
• Door position switch (DPS) monitors whether the door is open or closed
• Universal mounting brackets for swinging or sliding gate applications
• Built-in voltage spike suppression
• 1/2" EMT compression fitting
• Special corrosion resistant plating

Specifications:

• Holding Force: Meets or exceeds BHMA standard of 1500 lbs
• Input Voltage (auto selected): 12/24 VDC
• Current Draw (amps standard unit): .65A @ 12 VDC, .35A @ 24 VDC
• Height: 3"
• Length: 11"
• Depth: 1-3⁄4"
• Weight (approximate): 14 lbs
• Certifications: ANSI/BHMA 156.23 Outdoor rated
• Temperature: -31° to 151° F (-35° to 66° C)
• Wire Gauge: 14-22 AWG

Resources

• Cut Sheet
