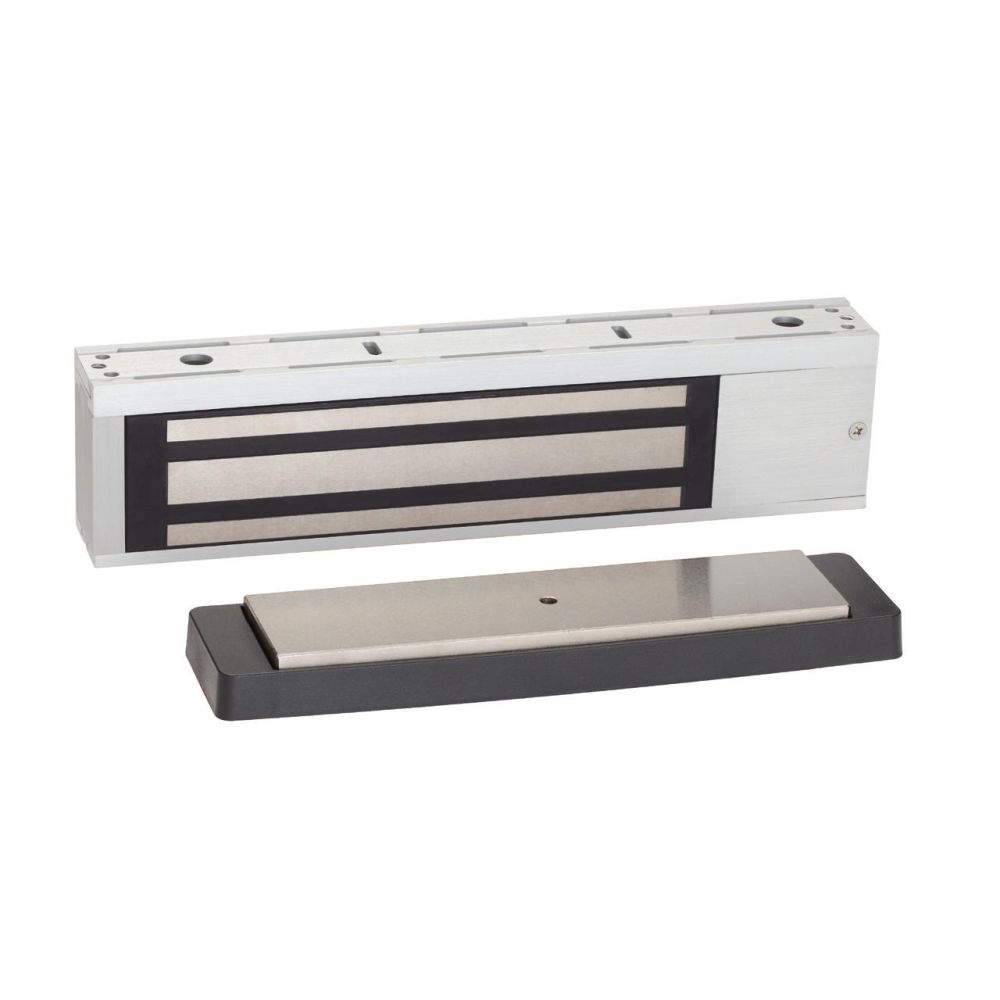

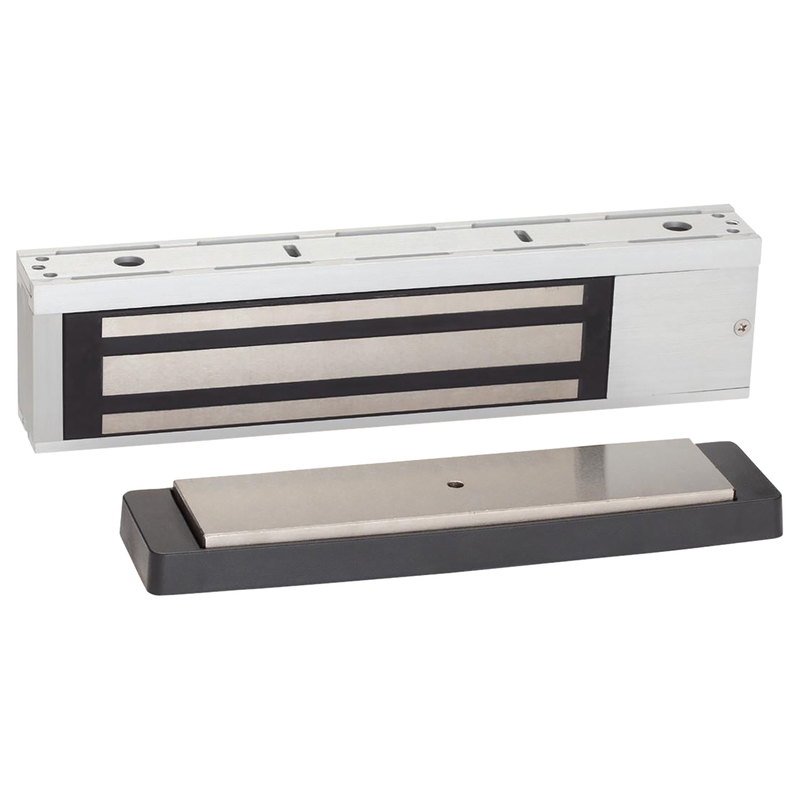

Schlage Electronics M490P Single Maximum Security Magnetic Lock with Door Status Monitor offers unparalleled security for a variety of applications, ensuring peace of mind for both building professionals and homeowners. With an impressive 1500 lb. hold force rating, this magnetic lock is designed for maximum security needs, making it ideal for commercial, institutional, and multi-family buildings. The M490P features advanced capabilities including a magnetic bond sensor, adjustable relock time delay, and a door position switch, enhancing its functionality. Automatic voltage selection simplifies installation and ensures compatibility with existing systems, while its symmetrical design allows for field-selectable handing, providing flexibility in placement. Installation is made easy with the bayonet mount, which secures the lock without the need for overhead support. Constructed from durable aluminum, the lock measures 3" x 12-1/2" x 1-3/4", perfectly suited for doors with a thickness of 1-3/4". It operates on dual voltage (12/24 VDC) and is compatible with push buttons, readers, or sensors. Backed by a limited lifetime warranty on the magnetic components and a one-year electro-mechanical warranty, the Schlage M490P is a reliable choice for those seeking strength and security in their access control solutions.
Single Maximum Security Magnetic Lock with Door Status Monitor Magnetic Bond Sensor and Relocking Time Delay
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Manufacturer surcharge: $ 0.0
Amp Draw: 1.5A/760mA @ 12/24 VDC Current
Base Material: Aluminum
Base Series: M400 Series
Category: Commercial Electronic Devices
Commercial Residential: Commercial
Dimension: 3" x 12-1/2" x 1-3/4"
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish Description: Satin Aluminum
Finish Family: Matte Silver
Fire Rated: No
Function: Single Door
Grade: Grade 1
Hazardous Material: NO
Holding Force: 1500 Lbs.
Installation: Commercial
Limited Warranty: Limited Warranty
Magnet Size: 12-1/2" x 3" x 1-3/4"
Manufacturer Warranty: Limited Lifetime Magnetic and 1 Year Electro Mechanical Warranty
Material: Aluminum
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
Pack Qty: 1
Power Supply: Wired
Product Height: 3"
Product Length: 12.5"
Product Type Used With: Push Button, Reader, or Sensor
Product Width: 1.75"
Series: Schlage Electronics Electromagnetic Locks
Ship Weight: 14 lbs.
Subcategory: Maglocks
Subtype: Magnetic Locks
Switch Type: Door Position Switch
Type: Electronics
Ul Listing: UL 1034, UL 10C 3 hour fire rating
Ul Listing Type: UL 10C Listed, cUL
Unit of Measure: Each
Use With: Maximum Security
