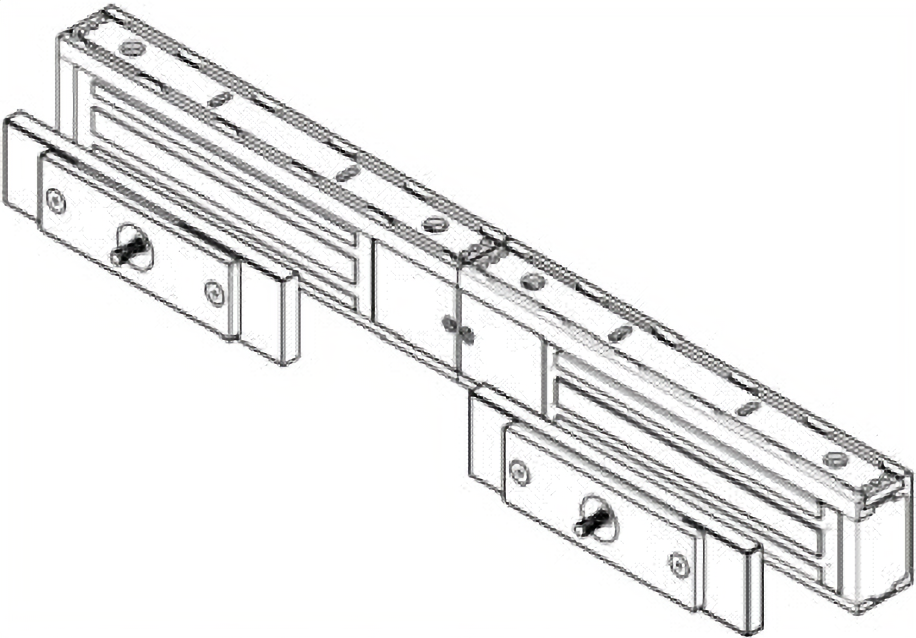

Schlage M492P-628 1500lbs Double Electromagnetic Lock, AVS 12/24VDC, MBS, RTD, DPS, Satin Aluminum

Schlage Electronic Security M492P-628 1500lbs Double Electromagnetic Lock delivers unparalleled security for maximum protection applications. With a formidable 1500 lb hold force, this lock is engineered for those who demand the highest levels of safety. The automatic voltage selection (AVS) feature simplifies installation by accommodating 12 or 24 VDC input while ensuring polarity protection. Designed with user convenience in mind, the M492P-628 incorporates a magnetic bond sensor (MBS), adjustable relock time delay (RTD), and a door position switch (DPS), enhancing its integration with access control systems. Its symmetrical design allows for field-selectable handing, making it versatile for various door types, including double doors. Installation is further streamlined thanks to the innovative bayonet mounting system, which allows for hands-free operation during setup. The armature mount pivot feature compensates for minor door alignment imperfections, ensuring a seamless fit. Crafted from durable aluminum in a satin finish, this lock not only offers strength but also complements any architectural style. Certified to meet stringent ANSI/BHMA Grade 1, UL 1034, and UL 10C standards, the Schlage M492P-628 is a reliable choice for commercial and residential applications. With a limited lifetime warranty on the magnetic coil assembly, you can trust in its long-lasting performance.

1500lbs (Per Leaf) Double Electromagnetic Lock for Maximum Security Applications, Automatic Voltage Selection (AVS) 12/24VDC, with Magnetic Bond Sensor (MBS), Adjustable Relock Time Delay (RTD) and Door Position Switch (DPS), 628/US28 Satin Aluminum

M400 Series electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy-to-install, and secure. The unique bayonet mounting feature makes installation easier, allowing the installer to have their hands free during the mounting process. All M400 series electromagnetic locks are symmetrical with field-selectable handing, allowing optimum placement of the magnet no matter the application. They are designed to provide automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. M490 models are tested and certified to meet or exceed UL 1034 and BHMA 1500 lb hold force requirements. The M490 electromagnetic locks come in four configurations to meet your specific security needs. Single and double door models are offered in standard configurations. Plus versions of these models with "P" designations add intelligent sensing and reporting features needed to integrate with access control systems along with additional available options. Kits are also available for top jam, double door, and glass door applications.

Features:

• 1500 lb. hold force rating for maximum security applications
• "Plus" models offer magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS)
• Automatic voltage selection (AVS)
• Symmetrical design with field-selectable handing for optimum placement
• Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing
• Armature mount pivot feature compensates for slight opening imperfections
• Optional mounting kits available for top jamb mount, double door and Herculite glass doors
• Aluminum housing in 628 satin finish
• ANSI/BHMA 156.23 Grade 1, UL 1034, UL 10C, cUL, CFSM certifications
• Limited lifetime warranty on magnetic coil assembly

Specifications:
