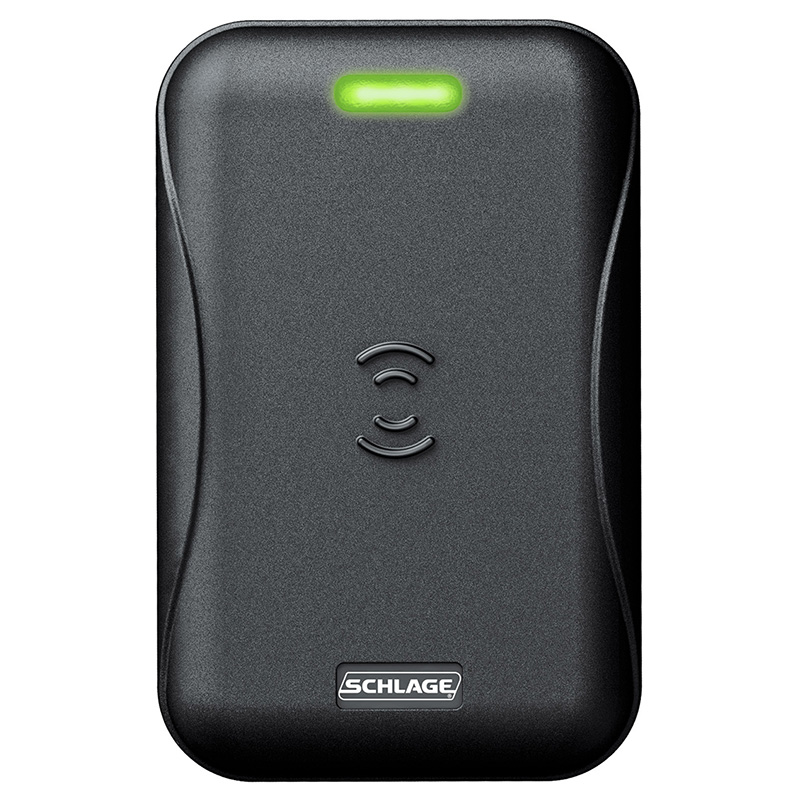

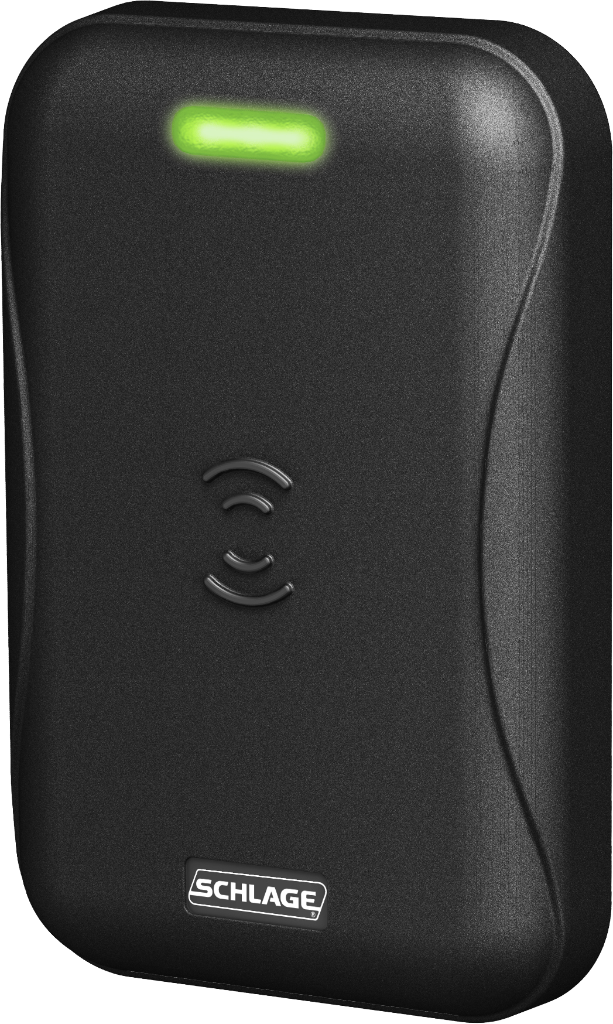

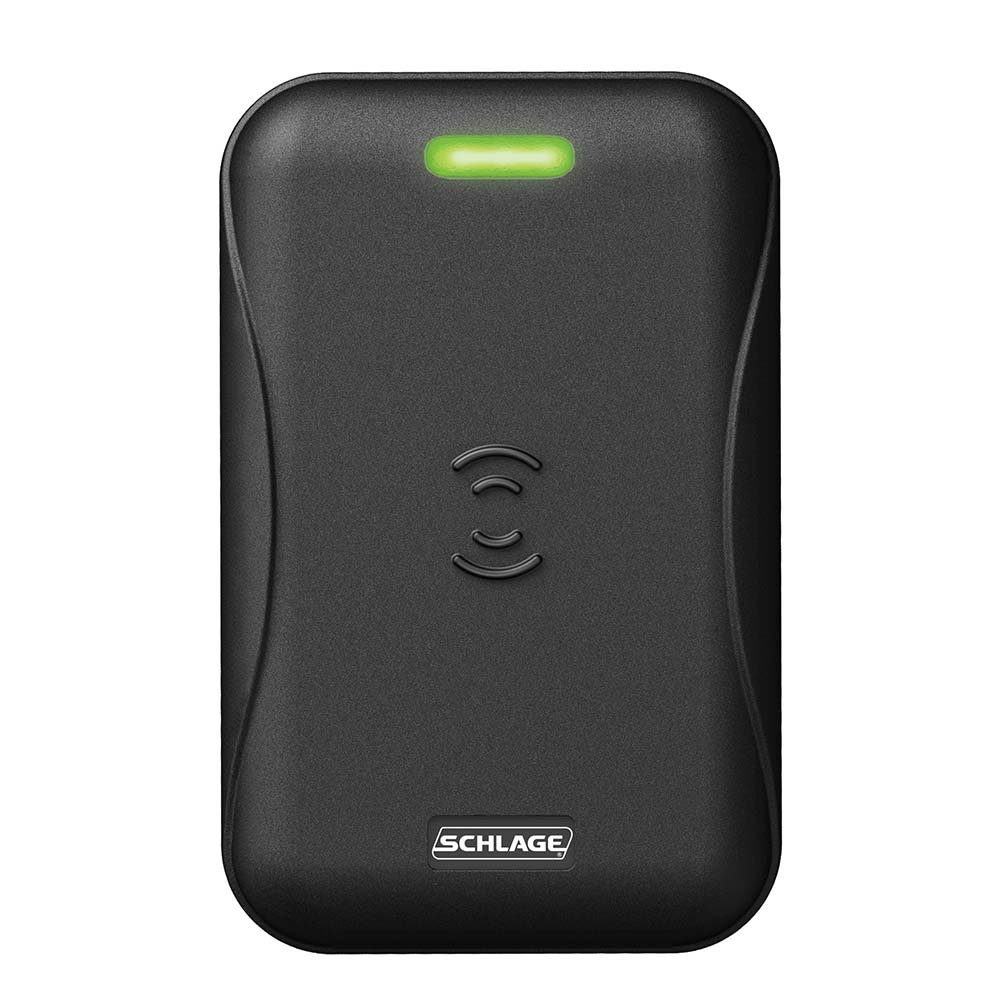

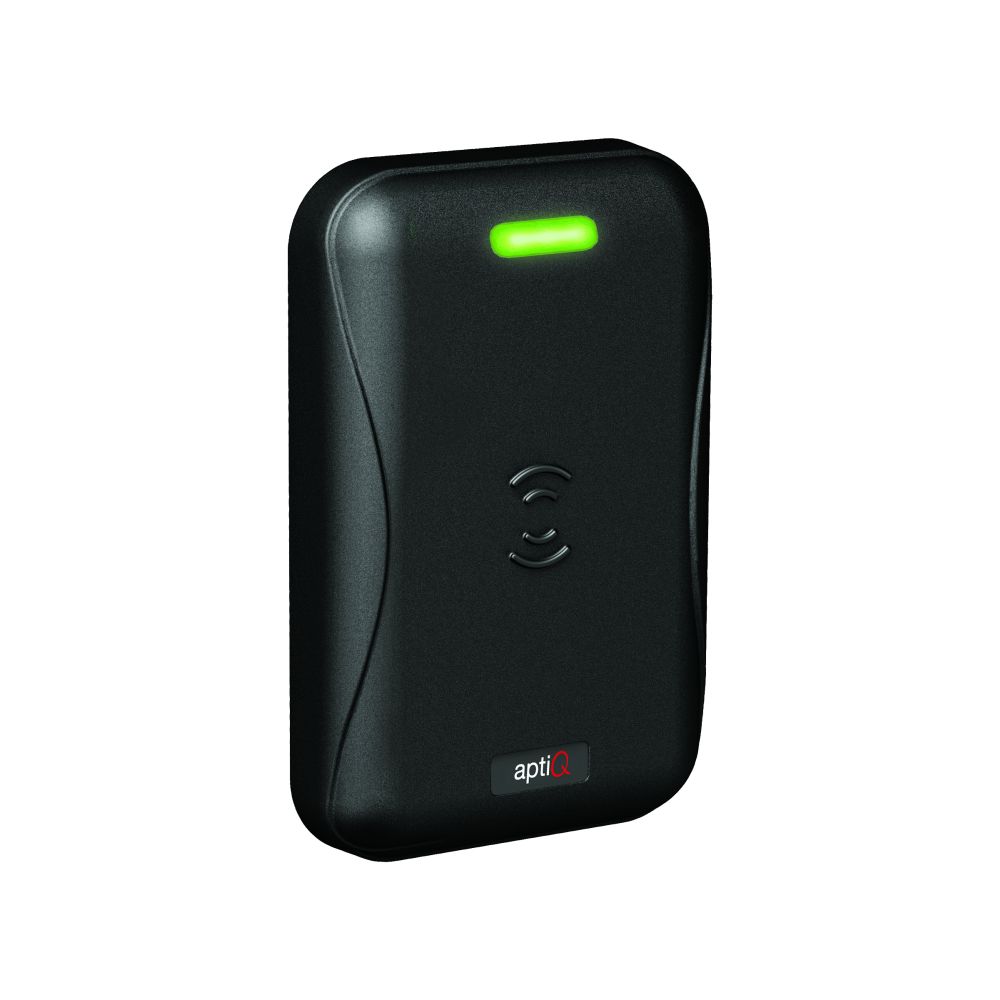

Schlage MT15 Multi-Tech Single Gang Access Reader

Schlage Electronics MT15 Multi Technology Single Gang Reader offers a sophisticated solution for modern access control needs, seamlessly integrating with both legacy and emerging technologies. Designed for commercial applications, this reader facilitates effortless migration from traditional cards to advanced credentials, including NFC-based smart cards, LEAF, and Bluetooth mobile credentials, ensuring your security infrastructure remains cutting-edge. Measuring 3-1/4" x 5-1/10", the MT15 is crafted from durable PNT polymer, combining resilience with a sleek profile that fits seamlessly into various environments. The device is compatible with Schlage and other industry manufacturers' credentials, simplifying transitions to the latest technology without the need for complete system overhauls. Equipped with NFC capabilities for Apple and Google Wallet, as well as support for BLE and MIFARE, the MT15 caters to a broad range of access requirements. Its UL 294 Listing ensures compliance with industry standards, providing peace of mind in security applications. Backed by a limited 1-year warranty, the Schlage MT15 Multi Technology Single Gang Reader is an ideal choice for businesses looking to enhance their security while embracing future-ready solutions. Whether for public buildings or commercial spaces, this reader delivers reliability and flexibility when it matters most.

Multi Technology Single Gang Reader

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Read Range:
• Proximity–Up to 5"
• MIFARE–Up to 4"
• MIFARE DESFire EV1–Up to 2"
• PIV Credential–Up to 2.5"
• Weight: 9.1 oz
• Dimensions: 5.1" x 3.25" x 1.9"
• Accommodates interior, exterior, metal, and non-metal installation environments
• Recognizes most proximity, aptiQ MIFARE® Classic, and aptiQ MIFARE DESFire™ EV1 credentials in one multi-technology reader
• FIPS 201-1 Compliant
• NFC Compatible
• Quick-connect cable for easy installation
• Easy-to-install mounting bracket
• Tri-state LED (red, green, amber) visual indicator and audio feedback representing status and activity information, easily discernible for the auldibly or visually impaired
• Wiegand output for simple interface with most access control panels
• May be ordered with RS-485 capability
• Multiple color options
• Limited Lifetime Warranty
• Schlage Readers Offer a Complete Solution that Features Functionality Allowing for an Effortless Migration Path from Legacy Cards to Future Technologies Including NFC Based Smart Cards, LEAF, and Bluetooth Mobile Credentials
• Compatible with Schlage and Other Industry Manufacturers Credentials and Functionality for Effortless migration to the Latest Credential Technology
• Limited 1 Year Warranty
• NFC in the Apple/Google Wallet, BLE, and MIFARE
• Extensive Range to Accommodate any Business Requirement

Resources

• 2021 Electronic Access Control Catalog
• Cut Sheet
• MTB11 Installation Instructions
• MTB15, MTKB15 Installation Instructions
• Mobile Enabled Multi-Tech Readers Data Sheet
• Multi-Technology Readers Data Sheet
• RC IP Reader Controller Data Sheet
• RC Pure IP User Guide
• Von Duprin Finishes Chart
