Schlage ND10S BRK 622 Grade 1 Passage Latch offers a robust solution for high-traffic environments, making it an ideal choice for healthcare, education, and commercial applications. This Grade 1 passage latch features the sleek Boardwalk lever design in a sophisticated matte black finish, ensuring both style and functionality without the need for a key. Designed for easy installation, the ND Series lockset is non-handed, accommodating door thicknesses from 1 5/8" to 2 1/8". With a standard backset of 2 3/4" and a durable steel latch bolt with a 1/2" throw, this lock guarantees reliable performance, exceeding 3 million operating cycles without failure. The corrosion-resistant zinc-plated lock chassis reinforces its longevity, making it a trusted option in demanding environments. The Schlage ND10S is also UL/cUL listed and meets ANSI A156.2, Series 4000, Grade 1 standards, further ensuring its reliability and security. Backed by a ten-year limited warranty, this passage latch offers peace of mind for facility owners. With its versatile functionality and proven durability, the Schlage ND10S BRK 622 is a perfect blend of style and strength, ready to meet a variety of access control needs.

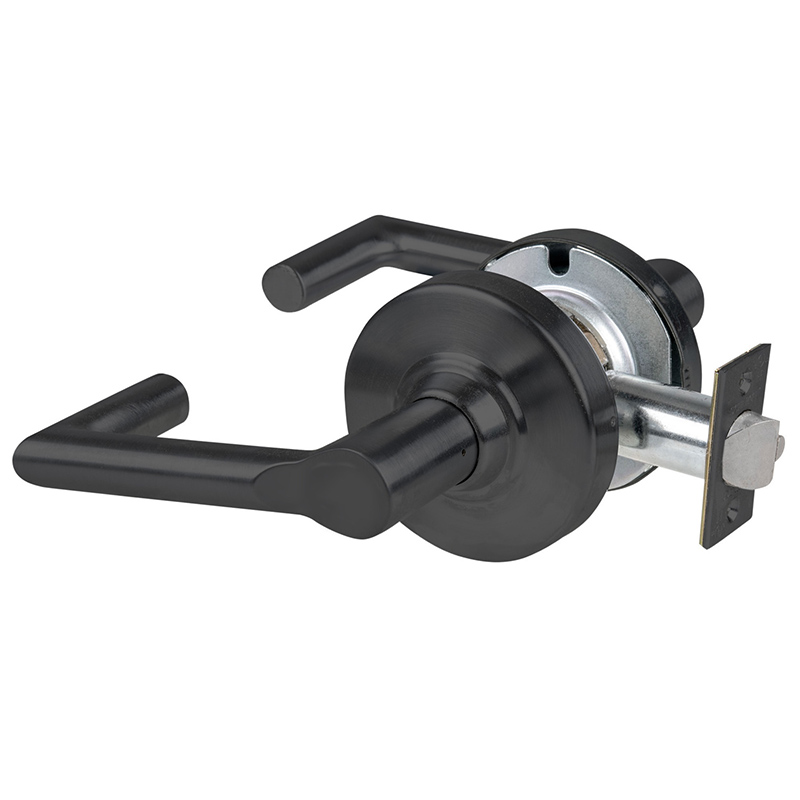

Grade 1 Passage Latch, Boardwalk Lever, Non-Keyed, Matte Black Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F75 - Passage
Baa Qualified: Yes
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 622/US19
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 10-Passage Latch
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Boardwalk
Leverknob Design: BRK - Boardwalk Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Passage Latch
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Product Height: 3.44"
Projection: 3-1/16 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-248
Std Latch Type: Springlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
