Schlage ND40S RHO 622 RH OS-OCC Grade 1 Privacy LockSchlage ND40S RHO 622 RH OS-OCC Grade 1 Privacy Lock offers a robust solution for your privacy needs in commercial settings. This Grade 1 bed and bathroom privacy cylindrical lock features a non-keyed design and the elegant Rhodes lever, ensuring both style and functionality. With a 3-7/16" rose diameter and a flat black coated finish, it seamlessly integrates into various décors while maintaining a high level of durability. Engineered for extensive use, the ND Series exceeds BHMA Grade 1 requirements, demonstrating resilience through over 3 million operating cycles without failure. This lockset is ideal for applications in healthcare, education, government, and retail environments, where reliability is paramount. The exterior indicator clearly displays "VACANT/OCCUPIED," providing added convenience and security. Designed for doors with a thickness ranging from 1 5/8" to 2 1/8", the lock features a zinc-plated chassis for corrosion resistance and a steel latch bolt with a 1/2" throw for enhanced security. Installation is straightforward, making it a practical choice for both building professionals and knowledgeable homeowners. With a ten-year limited warranty, the Schlage ND40S promises long-lasting performance and peace of mind, making it a smart investment for any facility.
Grade 1 Privacy Lock

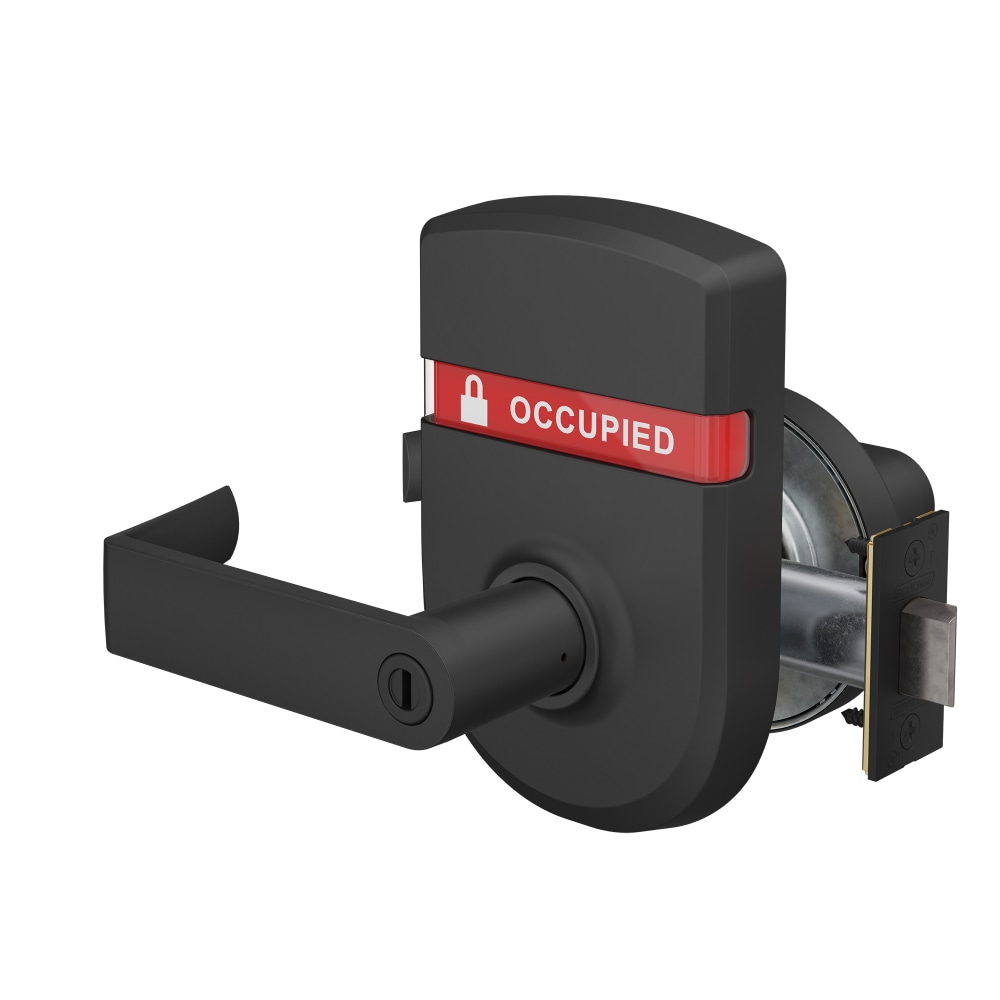

Grade 1 Bed Bathroom Privacy Cylindrical Lock, Non-Keyed, Rhodes Lever, 3-7/16" Rose Diameter, Exterior Indicator "VACANT/OCCUPIED", Flat Black Coated Finish, Right-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
- Handing: All ND-Series lever locksets are non-handed.
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F76 - Privacy
Application: Indicator with Text
Baa Qualified: Yes
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Non-Keyed
Door Thickness: 1-3/4"
Finish: 622/US19
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 40-Bed Bathroom Privacy Lock
Function Family: Privacy
Grade: Grade 1
Handing: Right-Handed
Indicator Type: Outside with Text, "VACANT/OCCUPIED"
Installation: Commercial
Latch Bore Diameter: 1"
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8" x 2-1/4"
Origin: Mexico
Pack Qty: 1
Product Height: 6-1/16" (3-13/16"/ 2-1/4")
Product Length: 3"
Product Width: 4-9/16"
Projection: 2-15/16"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-248
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
