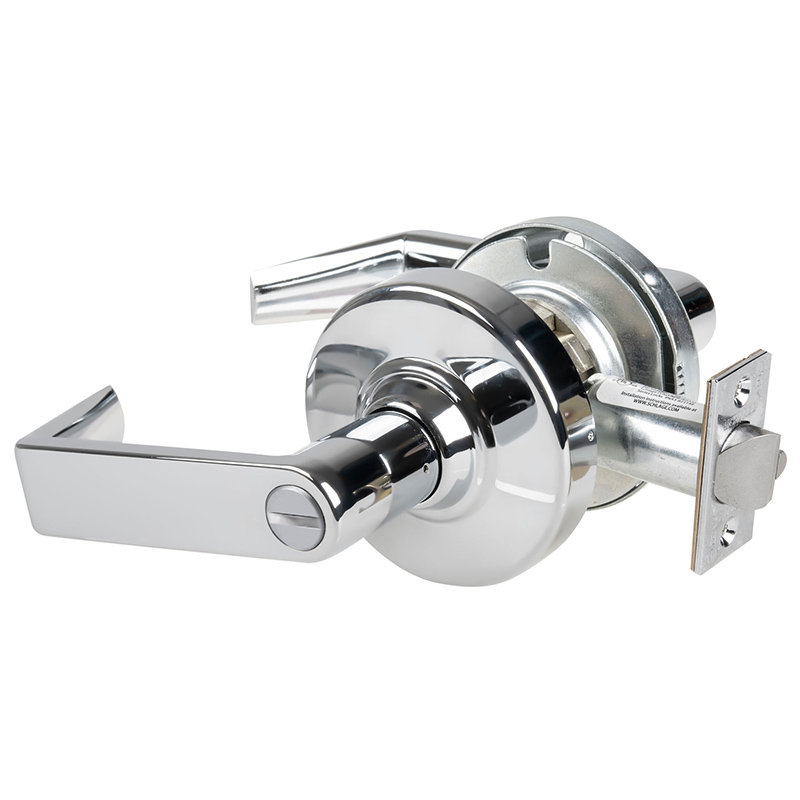

Schlage ND40S RHO 625 Grade 1 Privacy Lock combines robust security and elegant design, making it an ideal choice for bath and bedroom applications. This Grade 1 privacy lock features the sophisticated Rhodes lever, offering a non-keyed design with a bright chrome finish that complements various interiors. Engineered for durability, the ND Series exceeds rigorous BHMA Grade 1 standards, ensuring reliability with over three million operating cycles without failure. Versatile and easy to install, this non-handed lockset accommodates door thicknesses ranging from 1 5/8" to 2 1/8" and includes a standard backset of 2 3/4", with optional sizes available. The steel latch bolt features a 1/2" throw and provides deadlocking for enhanced security. With its pressure cast zinc levers and brass or bronze roses, the ND40S is not only functional but also aesthetically pleasing. Additional features include a 10-year limited warranty, UL/cUL listing, and compatibility with various keying options, such as interchangeable cores and master keying systems. This lock is accessible and ADA compliant, making it suitable for a wide range of commercial settings, including healthcare, education, and retail environments. Trust the Schlage ND40S RHO for secure and stylish privacy solutions.
Grade 1 Bath/Bedroom Privacy Lock, Rhodes Lever, Non-Keyed, Bright Chrome Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F76 - Privacy
Baa Qualified: Yes
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-5/8" to 2-1/8"
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 40-Bed Bathroom Privacy Lock
Function Family: Privacy
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Bath/Bedroom Privacy Lock
Maximum Door Thickness: 2-1/8"
Minimum Door Thickness: 1-5/8"
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Product Height: 3.44"
Product Length: 6.28"
Product Width: 2.94"
Projection: 2-15/16"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-248
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
