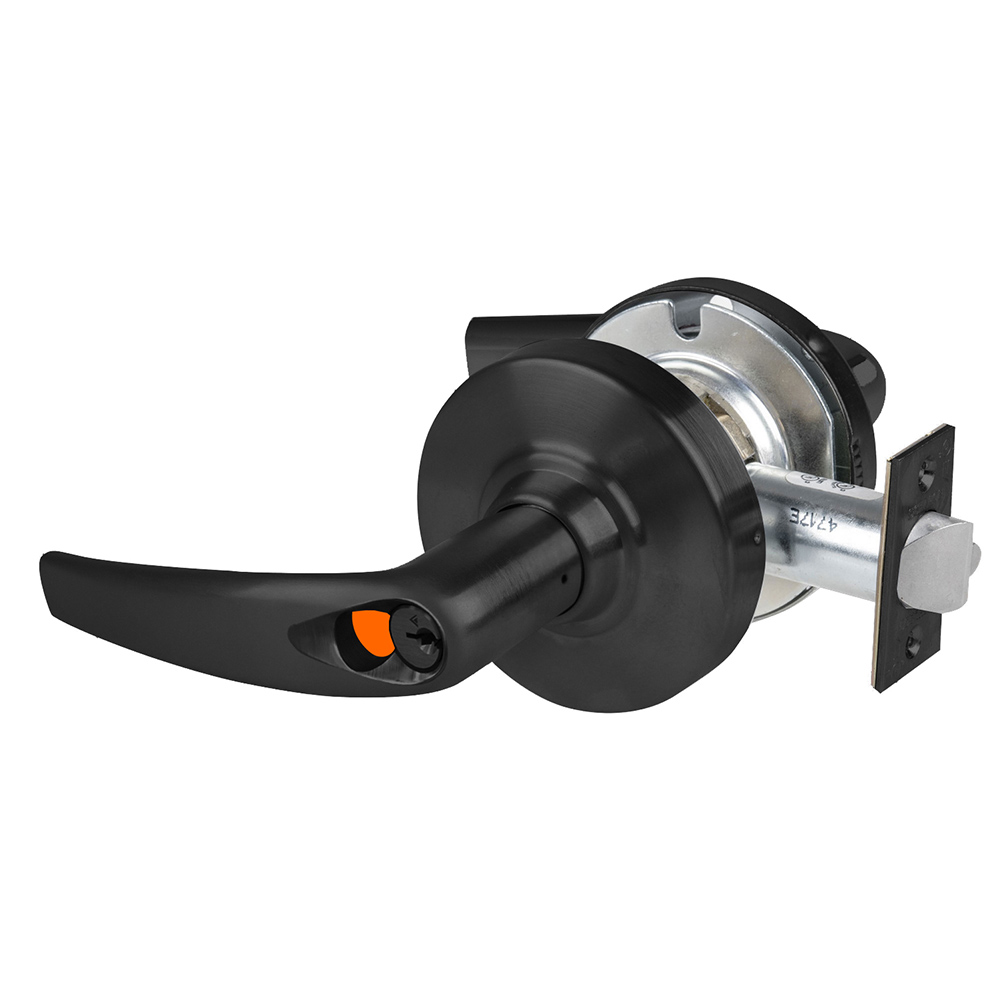

Schlage ND70HD ATH 622 Grade 1 Classroom Lock offers unmatched durability and security for educational environments. Designed with the Athens lever and a sleek matte black finish, this Grade 1 classroom lock combines aesthetic appeal with robust functionality. It features a SFIC preparation with a construction core, making it ideal for a variety of commercial applications, including healthcare, government, and retail settings. This cylindrical lockset exceeds 3 million operating cycles without failure, ensuring long-lasting performance and reliability. The non-handed design accommodates various door thicknesses from 1 5/8" to 2 1/8" and includes a standard backset of 2 3/4". The lock's zinc-plated chassis provides corrosion resistance, while the steel latch bolt features a 1/2" throw with deadlocking capabilities for added security. Additionally, the Schlage ND Series offers advanced keying options, including interchangeable cores and high-security cylinders, allowing for master and grand master keying configurations. With a ten-year limited warranty, you can trust the ND70HD to meet stringent security requirements while fulfilling ADA compliance. Elevate your facility’s access control with this reliable and stylish locking solution.
Grade 1 Classroom Lock, Athens Lever, SFIC Prep with Construction Core, Matte Black Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F84 - Classroom
Baa Qualified: Yes
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep with Construction Core
Cylinders Present: Single Cylinder
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 622/US19
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 70-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keying: Construction
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Classroom Lock
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pbs Options: '4540300,4541421
Pins: 6 to 7
Product Height: 3.44"
Product Length: 6.28"
Product Width: 3.31"
Projection: 3-5/16 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
