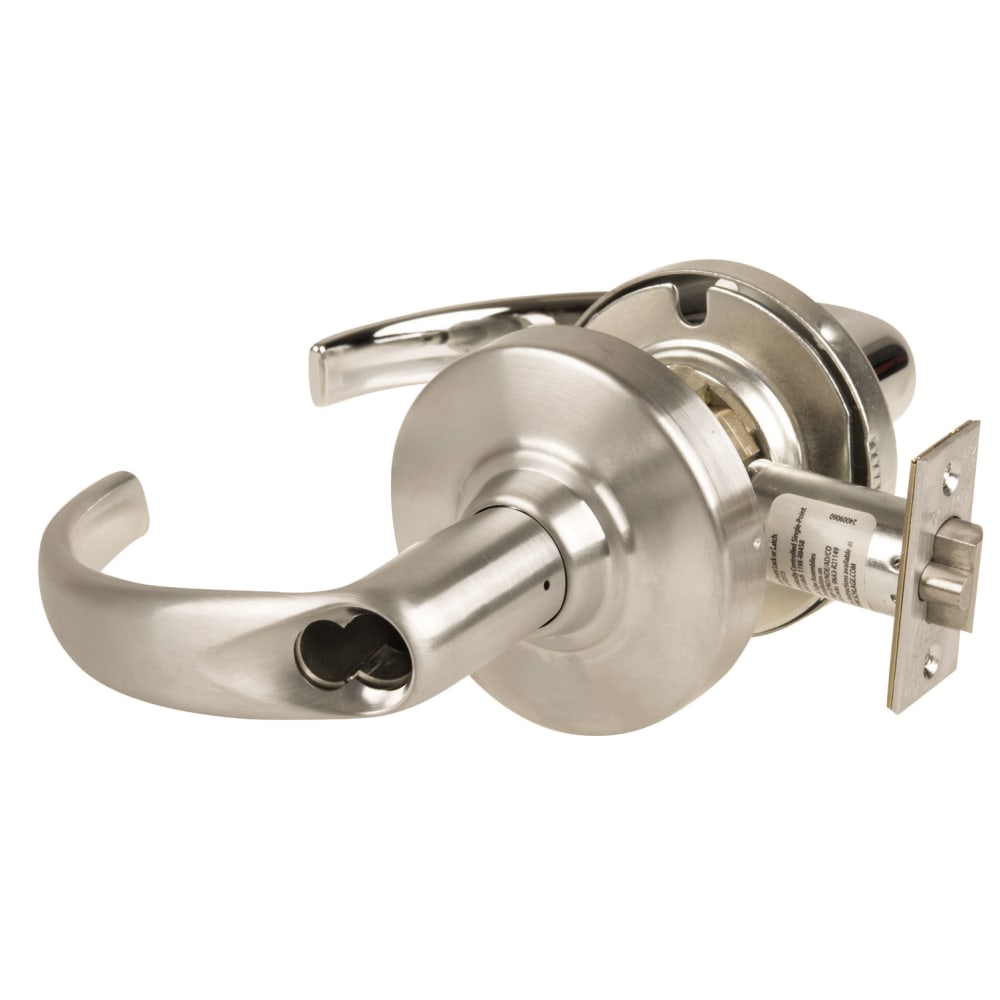

Schlage ND80BDEU SPA 619 Gr 1 Storeroom, Fail Secure offers robust security and reliability for high-traffic areas. This Grade 1 electrified cylindrical lock is designed for storeroom applications, providing peace of mind with its fail secure functionality. Operating on 12-24 VDC, the ND80BDEU features a 2-3/4" backset and is equipped with the sleek Sparta lever handle, giving it a contemporary look. The ND Series is recognized for its high security and fire safety applications, as it is UL Listed and rated for both electrical and fire single-point locking on labeled doors. Its auto-detecting input allows for versatile installation in new constructions where electrified door prep, hinges, and wiring can be seamlessly integrated. With an impressive low current draw of 0.23 amps, this lock can support multiple units on a single power supply, while the 0.010 amp holding current ensures no "hot levers" during electrically locked operations. The modular Request to Exit (RX) feature can be added later, providing further flexibility. Designed for commercial use, the Schlage ND80BDEU is a reliable choice for ensuring security and accessibility in various settings, making it an ideal solution for your electrified locking needs.

Gr 1 Storeroom, Fail Secure

Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24 VDC, Fail Secure, 2-3/4" Backset, Sparta Lever, SFIC Prep, Satin Nickel Finish

ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.

Applications

The electrified ND is ideally used in:

• High traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building

Key Features

All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
• Six electrified functions for application flexibility
