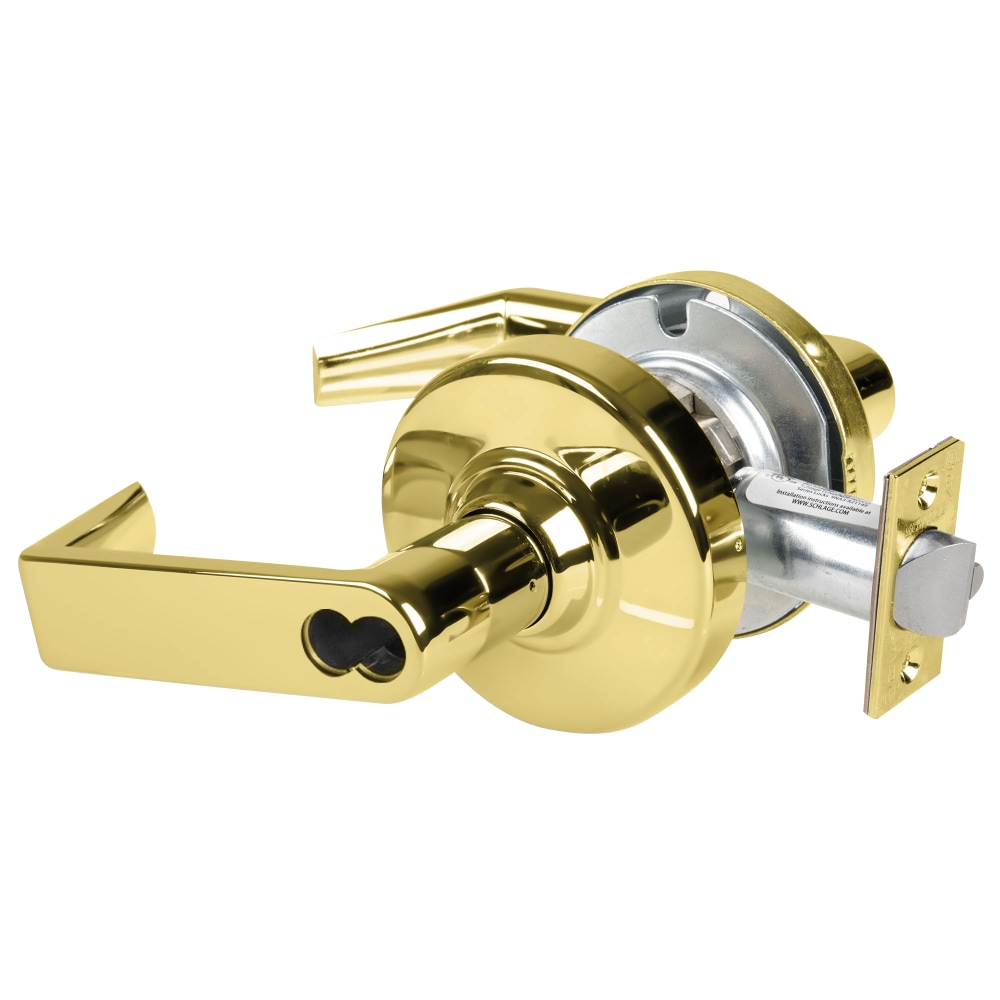

Schlage ND80JDEU RHO 605 Grade 1 Storeroom Lock, Fail Secure

Schlage ND80JDEU RHO 605 Gr 1 Storeroom, Fail Secure is a robust Grade 1 electrified cylindrical lock designed for high-security applications. This storeroom function lock operates on 12-24 VDC and features a fail secure mechanism, ensuring reliable performance in critical situations. The lock is crafted with a polished brass finish, enhancing both durability and aesthetics. Designed for high traffic areas, the ND80JDEU efficiently integrates into new constructions, making it easy to incorporate electrified door prep, hinges, and wiring. Its auto-detecting input accommodates both 12V and 24V systems, providing versatility for various installations. With a low 0.23 amp maximum current draw, this lock supports multiple units on a single power supply, while the minimal 0.010 amp holding current prevents "hot levers" in electrically locked settings. The modular Request to Exit (RX) feature can be added at any time, and six electrified functions offer flexibility to adapt to different requirements. UL listed for fire and electrical single-point locking on labeled doors, this lock is a reliable choice for ensuring both safety and accessibility. Ideal for commercial applications, the Schlage ND80JDEU combines advanced technology with user-friendly operation, making it a preferred choice for building professionals and knowledgeable homeowners alike.

Gr 1 Storeroom, Fail Secure

Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24 VDC, Fail Secure, 2-3/4" Backset, Rhodes Lever, LFIC Prep, Bright Brass Finish

ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.

Applications

The electrified ND is ideally used in:

• High traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building

Key Features

All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
• Six electrified functions for application flexibility
