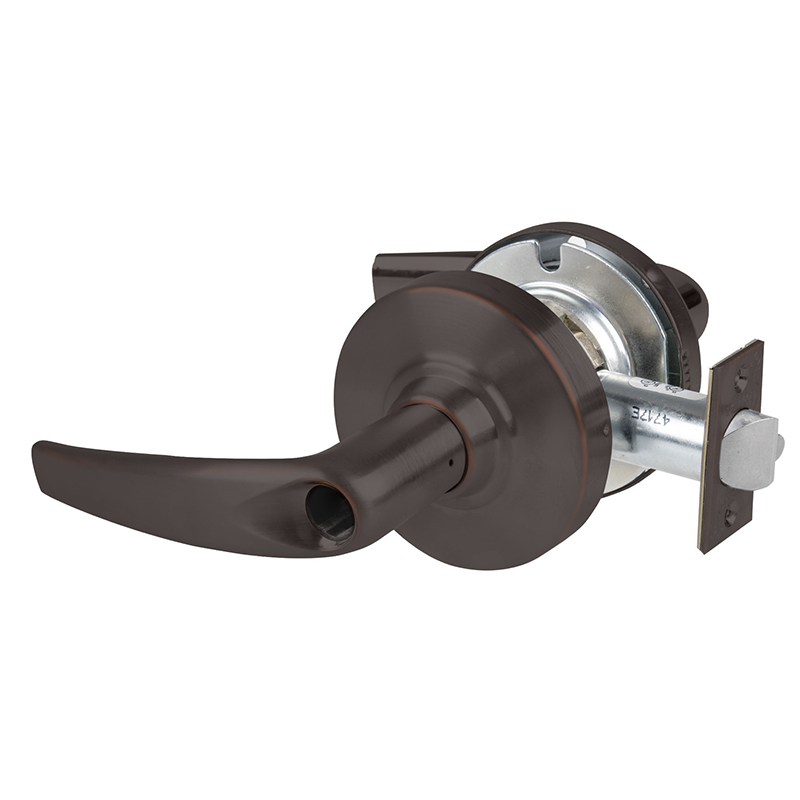

Attributes

Ship via: Can Ship UPS

Alternate Codes: ND80LD-ATH643E, ND80LDATH643E, SCHND80LD-ATH643E, SCHND80LDATH643E

Ansi Function: F86 - Storeroom

Ansi Function Description: Storeroom

Baa Qualified: Yes

Backset: 2-3/4" Backset

Bolt Protection: 1/2"

Bore Hole Diameter: 2-1/8 In.

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Country of Origin: Mexico

Cylinder Type: Less Cylinder

Cylinders Present: Single Cylinder

Design: Athens

Door Application: Cylindrical Levers

Door Thickness: 1-5/8" - 2-1/8"

Finish: 643E/US10B

Finish Code: 643E

Finish Color: Aged Bronze, Venetian Bronze

Finish Description: Aged Bronze

Fire Rated: Yes

Fire Rating: 180 min

Function: 80-Storeroom Lock

Function Family: Storeroom

Grade: Grade 1

Hand: Not Handed

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 1 In.

Latch Number: 13-247

Latch Type: Dead Latch (Guarded)

Lever Design: Athens

Lever Knob: Lever

Lever Knob Design: ATH - Athens

Lever Knob Design Family: Curved Lever

Lever Knob Design Name: Athens

Limited Warranty: 3 Years

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Manufacturer Function: Storeroom Lock

Manufacturer Function Description: Outside lever fixed. Entrance by key only. Inside lever always unlocked for immediate egress.

Maximum Door Thickness: 2-1/8 In.

Minimum Door Thickness: 1-5/8 In.

Num Pins: 6

Projection: 3-5/16 In.

Rose Escutcheon: Rose

Rose Escutcheon Design: 3-7/16 In. Diameter

Rose Escutcheon Dimensions: 3-7/16"

Screws: Combination

Series: ND

Strike: ASA Strike

Strike Dimensions: 1-1/4 In. x 4-7/8 In.

Strike Height: 4-7/8"

Strike Number: 10-025

Strike Type: ASA

Strike Width: 1-1/4"

Structure Cylinder: L

Structure Function: 80

Structure Latch: D

Structure Latch Number: 13-247

Structure Outside Finish: 643e

Structure Outside Trim: ATH

Structure Series: ND

Structure Strike Number: 10-025

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks
