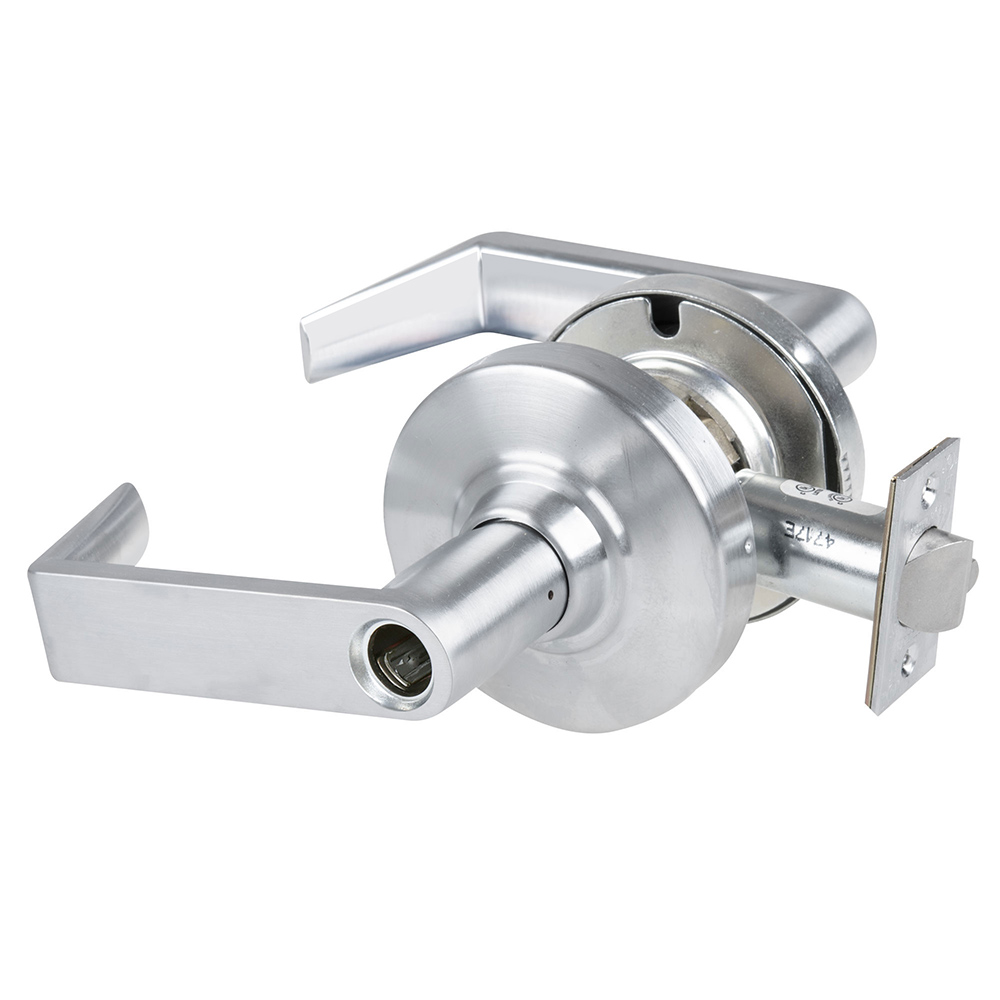

Schlage ND80LD-SAR RHO 626 Grade 1 Storeroom Lock combines reliability and superior craftsmanship for a variety of commercial applications. With its Rhodes lever design and satin chrome finish, this Grade 1 lockset not only enhances security but also offers an elegant aesthetic. The ND Series is renowned for its ease of installation and extensive compatibility, making it suitable for healthcare, educational institutions, government facilities, offices, and retail environments. Certified to exceed BHMA Grade 1 standards, the ND80LD-SAR withstands over 3 million operating cycles, ensuring durability and peace of mind for high-traffic areas. Its non-handed design allows for versatile installation on doors ranging from 1 5/8" to 2 1/8" thick, with a standard backset of 2 3/4". The lock features a robust steel latch bolt with a 1/2" throw and deadlocking mechanism, providing added security. Additional keying options, including interchangeable cores and master keying, enhance the flexibility of this lock. With a ten-year limited warranty, the Schlage ND80LD-SAR is a dependable choice for professionals seeking a long-lasting, high-performance storeroom lock that meets rigorous safety and accessibility standards.
Grade 1 Storeroom Lock, Rhodes Lever, Sargent Prep Less Cylinder, Satin Chrome Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F86 - Storeroom
Baa Qualified: Yes
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Sargent Prep Less Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 80-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Storeroom Lock
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pbs Options: '217581787,4541421
Pins: 6
Product Height: 3.44"
Product Length: 6.28"
Product Width: 2.94"
Projection: 2-15/16 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
