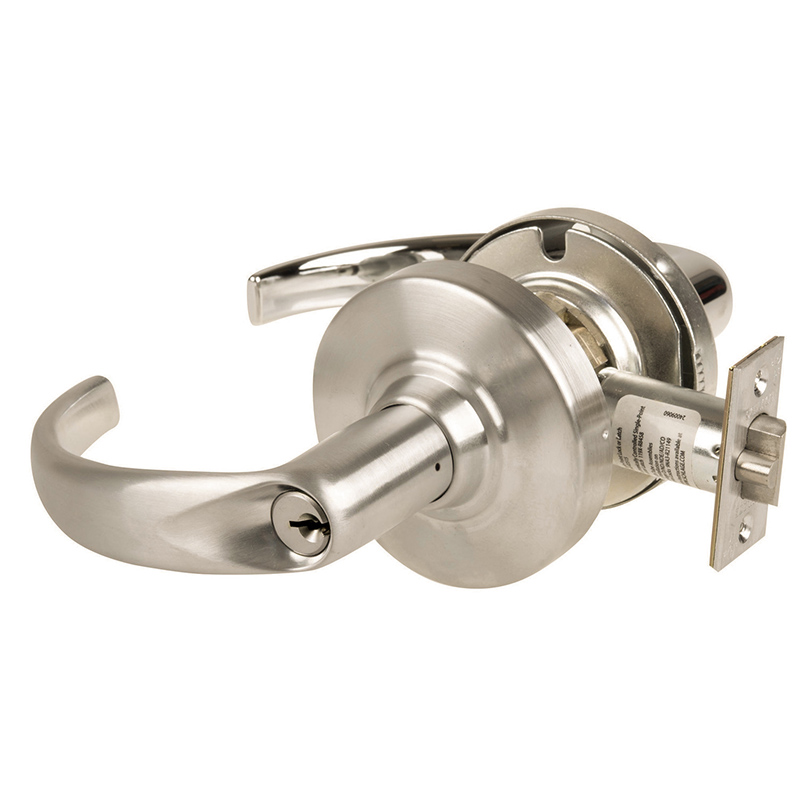

Schlage ND80PDEU SPA 619 Grade 1 Storeroom Lock, Fail Secure

Schlage ND80PDEU SPA 619 Gr 1 Storeroom, Fail Secure combines advanced security features with the convenience of electrification. This Grade 1 Electrified Cylindrical Lock is designed for storeroom applications, ensuring robust security in high-traffic environments. Operating at 12/24 VDC, it is fail secure, providing peace of mind by keeping the door locked during power outages. The ND series is UL Listed and rated for fire safety, making it ideal for use on labeled doors. Its Sparta Lever design in a satin nickel finish not only enhances the aesthetic but also offers durability. With its 2-3/4" backset, it fits a range of door constructions, while the auto-detecting voltage feature allows flexibility in installation. Designed for commercial use, this lock operates with a low current draw of 0.23 amps, enabling multiple locks to be powered from a single supply. Additionally, the modular Request to Exit (RX) feature can be integrated as needed, ensuring adaptability for various applications. This lock is perfect for new constructions and retrofits, providing reliable access control integrated seamlessly into your security system. With a limited 1-year warranty, the Schlage ND80PDEU SPA lock stands as a trusted choice for anyone seeking high-quality door hardware.

Gr 1 Storeroom, Fail Secure

Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12/24 VDC, Fail Secure, 2-3/4" Backset, Sparta Lever, Satin Nickel Finish

ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.

Applications

The electrified ND is ideally used in:

• High traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building

Key Features

All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
• Six electrified functions for application flexibility
