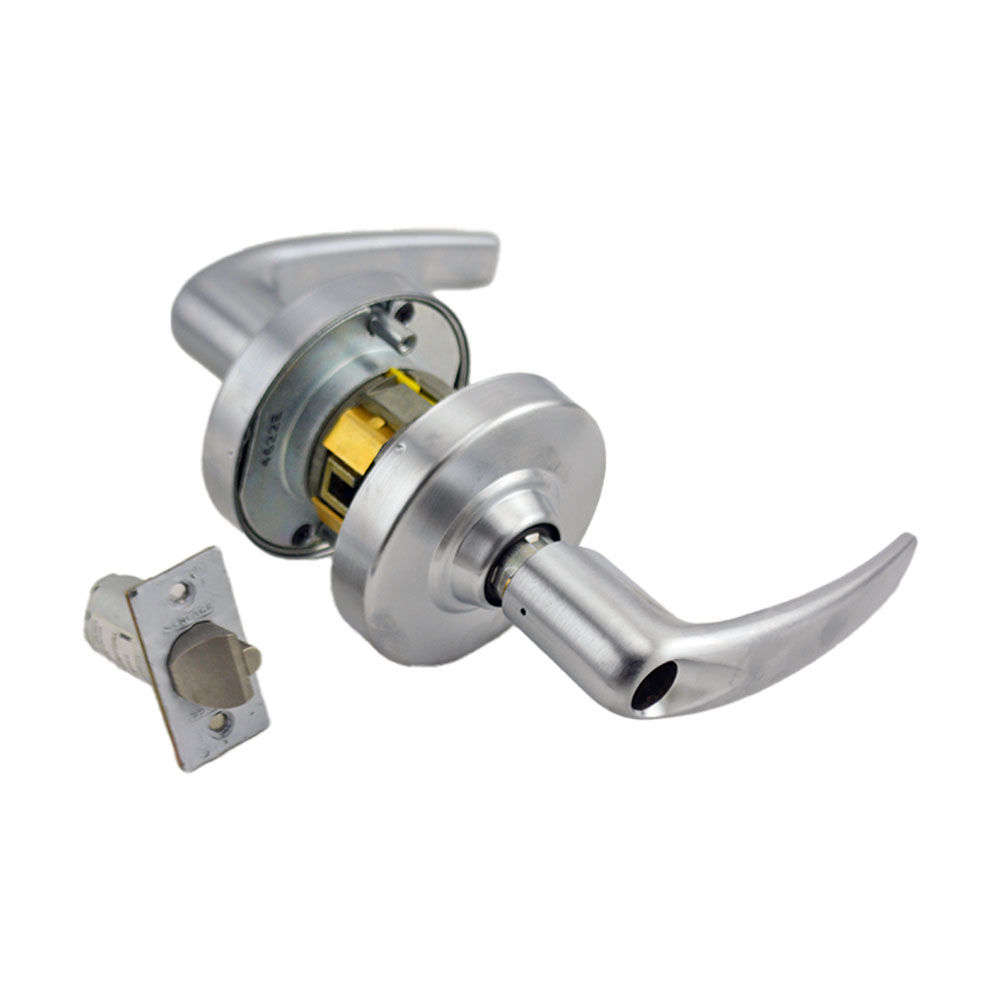

Schlage Commercial ND82CDATH626 ND Series Institution Less Cylinder Athens offers robust security and durability, ideal for high-traffic environments. Designed with fixed levers and an entrance function accessible by key on either lever, this lockset ensures ease of use while maintaining strict security protocols. It is ANSI/BHMA Certified A156.2-2011 and comes with a UL Listing for 3-hour fire door applications, making it a reliable choice for commercial establishments. This model accommodates doors ranging from 1-5/8" to 2-1/8" thick, featuring a 2-3/4" backset and a 2-1/8" crossbore size with two 5/16" post holes for straightforward installation. The satin chrome finish not only enhances its aesthetic appeal but also provides a resilient surface that stands up to daily wear and tear. With a commercial Grade 1 rating, the ND82CDATH626 ensures long-lasting performance, backed by a limited 10-year mechanical and 3-year electro-mechanical warranty. The Rhodes Rose design complements the Athens lever, merging functionality with style. This lockset is perfect for institutional settings, delivering exceptional security without compromising on design.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alt Part No: 259646
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F87 - Asylum
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Less Cylinder
Cylinders Present: Double Cylinder
Design: Athens
Dimension: 3-7/16" Rose with 4-9/16" Lever and 3-5/16" Projection
Door Range: 1-5/8" to 2-1/8"
Door Thickness: 1-5/8" - 2-1/8"
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 82-Institution Lock
Function Family: Institutional
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 13-247
Latch Type: Dead Latch (Guarded)
Length: 0.0
Lever Knob: Lever
Lever Knob Design: ATH - Athens
Lever Knob Design Name: Athens
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Institutional Lock
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pins: 6
Product Height: 3.44"
Product Length: 6.28"
Product Width: 3.31"
Projection: 3-5/16 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Sales Unit: EA
Screws: Combination
Series: ND Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8"
Strike Number: 10-025
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
