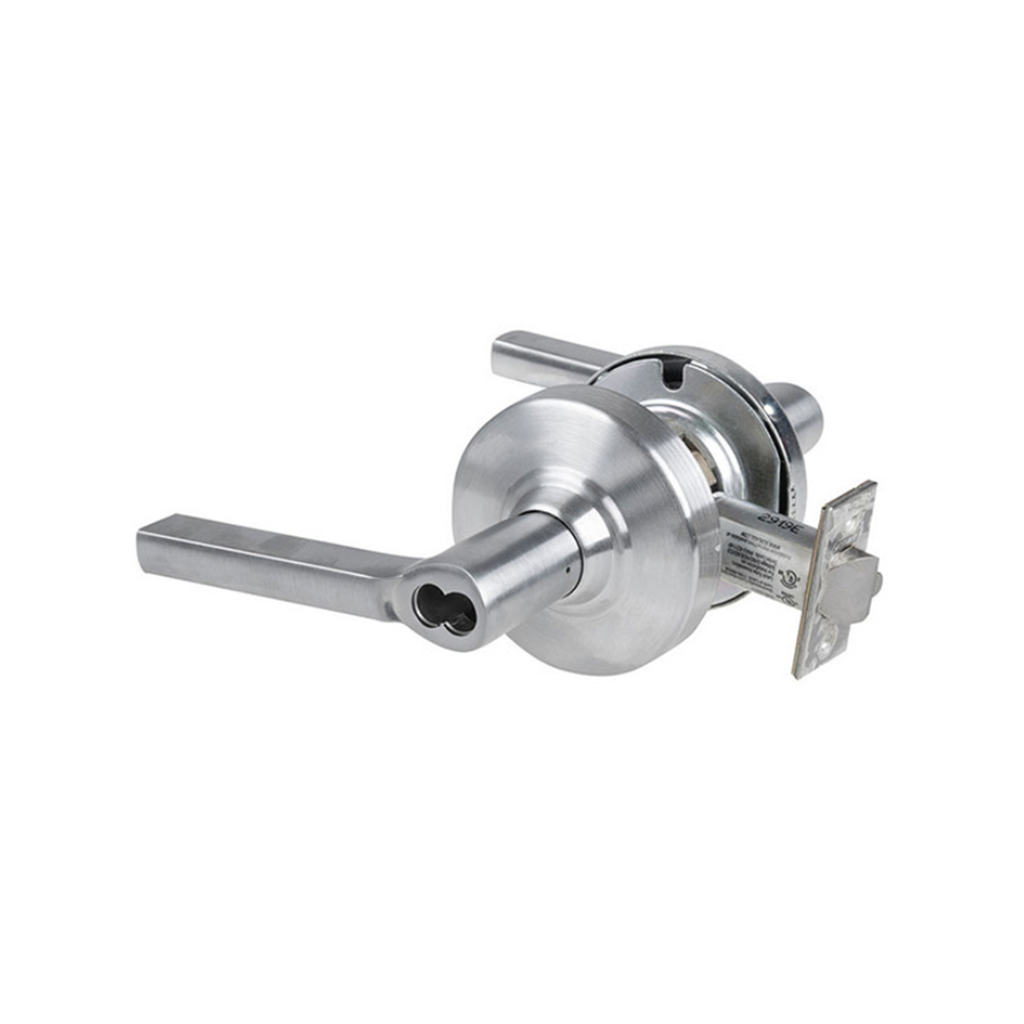

Schlage ND92LD LAT 626 Lock Cylindrical Lock

Your Price: $639.36

Retail Price:$999.000

Your Savings:$359.64(36%)

Vandlgard Entrance Lock Function, Grade 1, Cylindrical Lock, Less Conventional Cylinder, Latitude Lever, Satin Chromium Plated

Part Number : SCH_ND92LDLAT626

Availability: 37 In Stock

Quantity

Description

Schlage ND92LD LAT 626 Lock Cylindrical Lock

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.

Entry, Turn/Push-Button Locking, Pushing and Turning Button Disengages Outside Lever, Requiring Use of Key Until Button is Manually Unlocked, Push-Button Locking, Pushing Button Disengages Outside Lever Until Unlocked By Key or By Turning Inside Lever
ANSI/BHMA Certified A156.2-2011
1-5/8" to 2-1/8" Door Range
Commercial Grade 1
UL Listed for 3 Hour Fire Door
No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
Cast steel spindle construction exceeding 16 million cycles
Withstood aggressive Schlage development testing including lever-snap and abusive cycling
31 mechanical functions
6 wired functions with:
Autodetecting 12-24V DC input
Switch-selectable EL/EU operation
Modular request to exit (RX)
0.230A max/0.010A holding current
Available in 10 finishes, 5 lever designs, and 2 rose designs
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.

Attributes

Alternate Codes: ND92LDLAT626

Baa Qualified: Yes

Backset: 2-3/4" Backset

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Country of Origin: Mexico

Cylinder Type: Conventional - Schlage, Less Cylinder

Design: Latitude

Door Application: Cylindrical Levers

Finish: 626/US26D

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish Description: Satin Chromium Plated

Fire Rated: Yes

Fire Rating: 180 min

Function: Entry

Grade: Grade 1

Lever Design: Latitude

Limited Warranty: 3 Years

Series: ND

Strike: ASA Strike

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks
