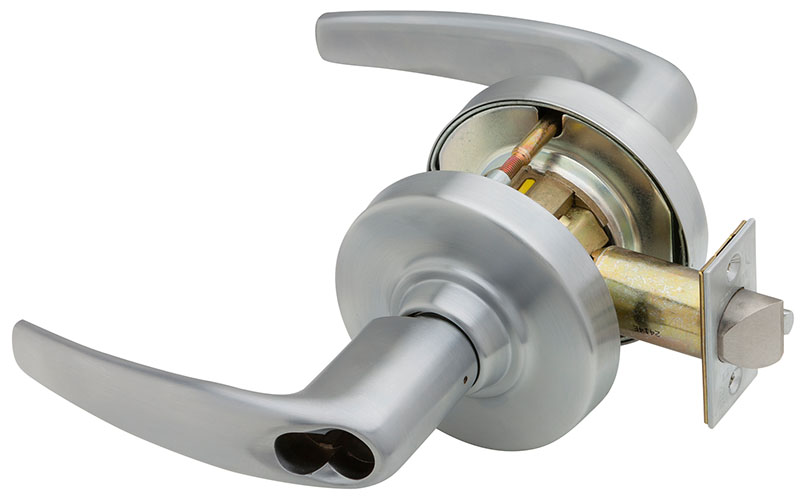

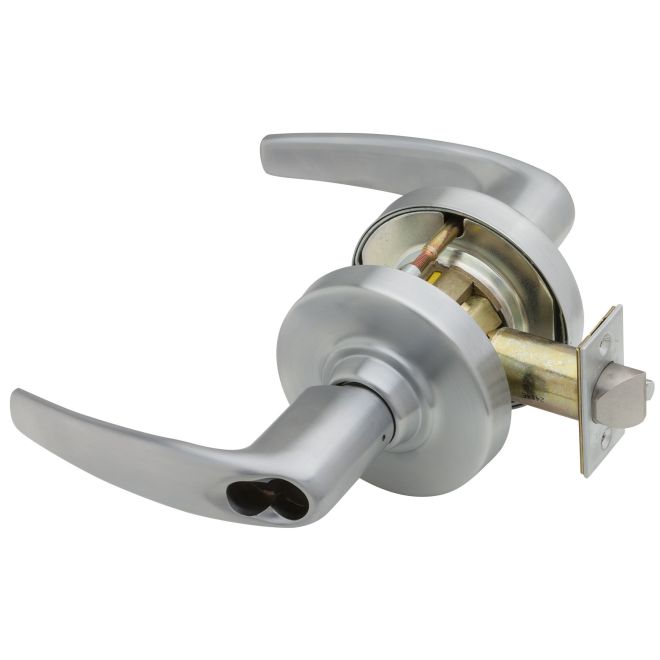

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
Attributes
Ship via: Can Ship UPS
Manufacturer surcharge: 2.0%
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ND94JDATH626, SCHND94JDATH626
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F84 - Classroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Schlage FSIC Less Core
Cylinders Present: Single Cylinder
Design: Athens
Door Application: Cylindrical Levers
Door Thickness: 1-5/8" - 2-1/8"
Finish: 626/US26D
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 180 min
Function: 94-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1 In.
Latch Number: 13-247
Latch Type: Dead Latch (Guarded)
Lever Design: Athens
Lever Knob: Lever
Lever Knob Design: ATH - Athens
Lever Knob Design Name: Athens
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Classroom Lock
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pbs Options: '4540298,4541421
Pins: 6
Product Height: 3.44"
Product Length: 6.28"
Product Width: 3.31"
Projection: 3-5/16 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Combination
Series: ND
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8"
Strike Number: 10-025
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
