Schlage ND96PDEU TLR 626 RX Gr1 Vandlgard Storage Fail-Secure

Schlage ND96PDEU TLR 626 RX Gr1 Vandlgard Storerm, Fail Sec is a Grade 1 electrified cylindrical lock designed for storeroom applications. This robust lock operates on 12-24V DC and features a fail secure mechanism, ensuring reliable security even in critical environments. With a 2-3/4" backset and a sleek satin chrome finish, it combines functionality with modern aesthetics. The ND series is engineered for high security and fire safety applications, being UL Listed for both fire and electrical single-point locking on labeled doors. Its RX feature allows for flexibility in security applications, ready to be utilized in either normally open or normally closed configurations. This lock is ideal for high traffic areas, where continuous operation is essential, and for new constructions where electrified door preparation can be easily integrated. Key features include auto-detecting voltage input, low current draw of 0.23 amps, and modular Request to Exit (RX) capabilities. Additionally, it supports multiple electrified functions to enhance application versatility, making it an inventory-friendly choice that accommodates various access control needs. With its combination of durability and advanced technology, the Schlage ND96PDEU is an excellent choice for commercial security solutions.

Gr1 Vandlgard Storerm,Fail Sec

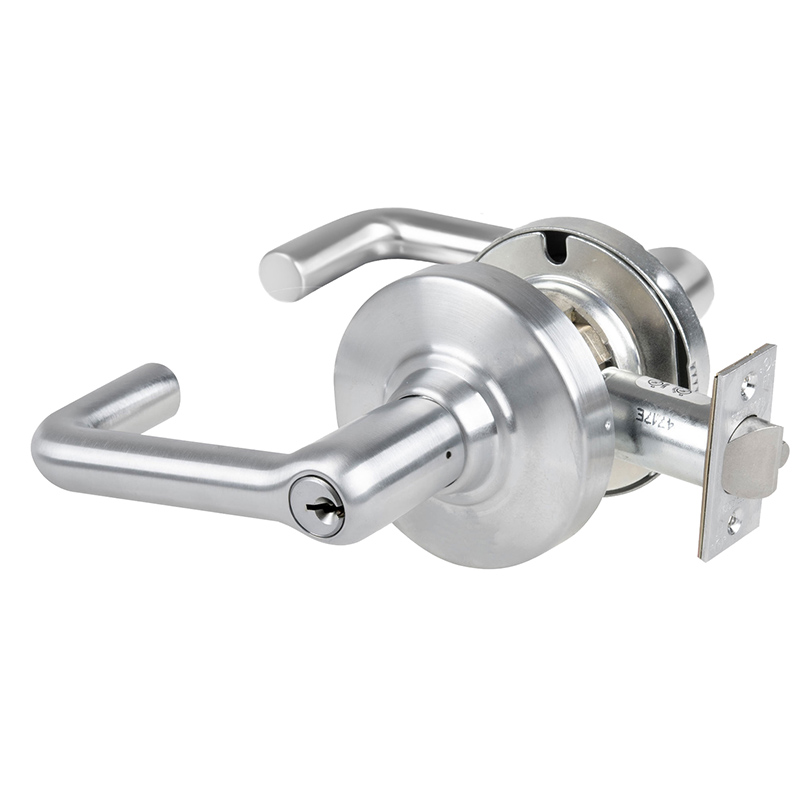

Grade 1 Electrified Cylindrical Lock, Storeroom Function with Vandlgard, 12-24V DC, Fail Secure, 2-3/4" Backset, RX, Tubular Lever, Satin Chrome

ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.

Applications

The electrified ND is ideally used in:

• High traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building

Key Features

All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
• Six electrified functions for application flexibility
