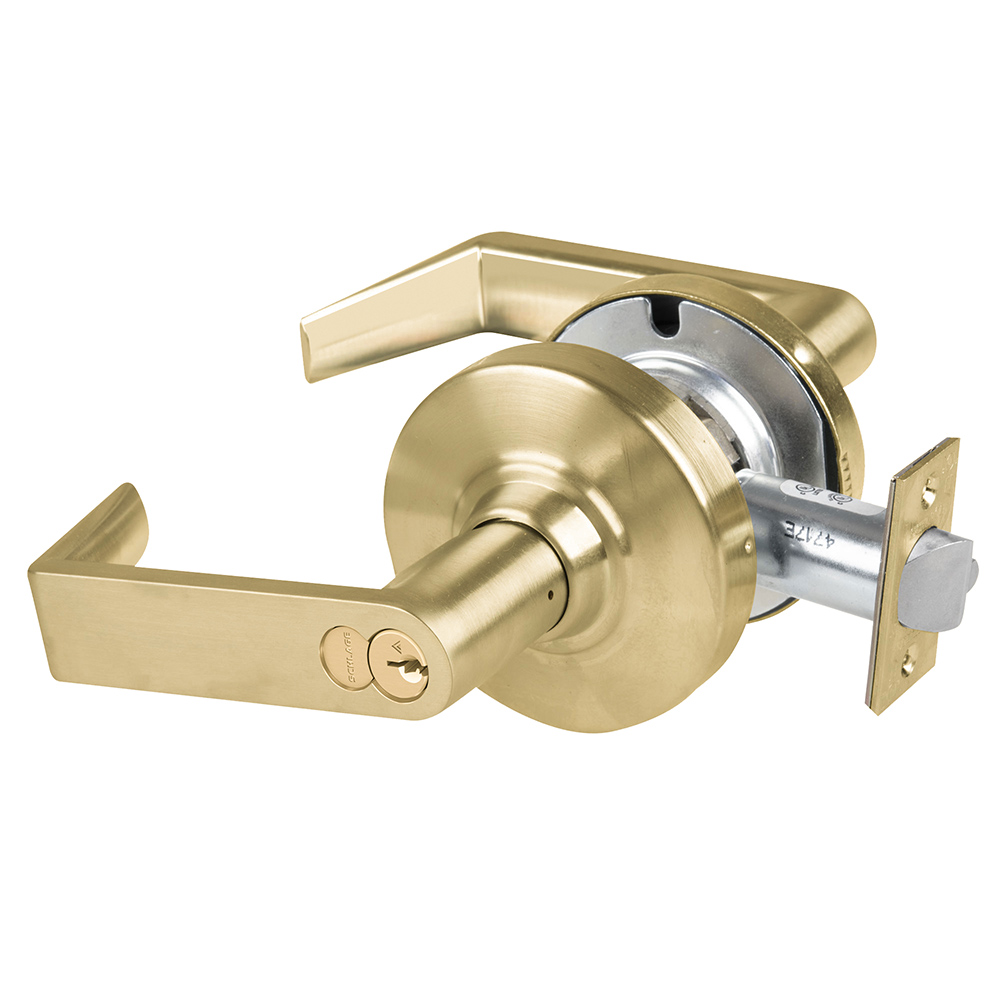

Schlage ND96RD RHO 606 43-005 Grade 1 Vandlgard Storeroom Lock offers superior security and durability, making it an excellent choice for a variety of commercial applications. This Grade 1 storeroom lock features the elegant Rhodes lever design and is prepared for Schlage FSIC core systems, ensuring versatility and ease of installation across different door types. Built to withstand rigorous use, the ND Series locks exceed 3 million operating cycles without failure, providing peace of mind for facilities such as healthcare, education, and government buildings. The non-handed design allows for flexible installation on doors ranging from 1 5/8" to 2 1/8" in thickness. The 5" backset extension ensures compatibility with various door configurations, while the satin brass finish adds a touch of sophistication. Constructed with a zinc-plated lock chassis and a robust steel latch bolt, this lock is engineered for corrosion resistance and durability. The included 6-pin Everest 29 S123 keyway and two patented nickel silver keys enhance security, with options for interchangeable cores and master keying available. Backed by a ten-year limited warranty, the Schlage ND96RD RHO lock is a reliable choice for anyone looking to enhance the safety and accessibility of their space.
Grade 1 Storeroom Lock, Rhodes Lever, Schlage FSIC Prep with Core, 5" Backset Extension, Satin Brass Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F86 - Storeroom
Baa Qualified: Yes
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Schlage FSIC Prep with Core
Cylinders Present: Single Cylinder
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 96-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Storeroom Lock
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Of Keys: 2
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pbs Options: '4540296,4542206,4541421
Pins: 6
Product Height: 3.44"
Product Length: 6.28"
Product Width: 2.94"
Projection: 2-15/16 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 5 In.
Std Latch Number: 43-005
Std Latch Type: Backset Extension
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
