Schlage ND97JDATH626 ND Series Vandlgard Corridor Large Format Less Core Athens with 13-247 Latch 10-025 Strike Satin Chrome Finish

Images may not represent actual product and finish

Schlage ND97JDATH626 ND Series Vandlgard Corridor Large Format Less Core Athens with 13-247 Latch 10-025 Strike Satin Chrome Finish

Your Price: $586.50

Retail Price:$938.40

Your Savings:$351.90(38%)

Grade 1 Vandlgard Corridor Cylindrical Lock, Athens Lever, FSIC Less Core, Satin Chrome Finish, Non-handed

Part Number

: SCH_ND97JDATH626

Availability: 7 In stock

Quantity

Description

Schlage ND97JDATH626 ND Series Vandlgard Corridor Large Format Less Core Athens with 13-247 Latch 10-025 Strike Satin Chrome Finish

Schlage Commercial ND97JDATH626 ND Series Vandlgard Corridor Large Format Less Core Athens with 13-247 Latch 10-025 Strike Satin Chrome Finish

Corridor, Locked or Unlocked by Key From Outside, Push-Button Locking From Inside, Turning Inside Lever or Closing Door Releases Button, When Outside Lever is Locked it Can Only Be Unlocked by Key, Inside Lever is Always Unlocked for Immediate Egress
ANSI/BHMA Certified A156.2-2011
1-5/8" to 2-1/8" Door Range
Commercial Grade 1
UL Listed for 3 Hour Fire Door
No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
Cast steel spindle construction exceeding 16 million cycles
Withstood aggressive Schlage development testing including lever-snap and abusive cycling
31 mechanical functions
6 wired functions with:
Autodetecting 12-24V DC input
Switch-selectable EL/EU operation
Modular request to exit (RX)
0.230A max/0.010A holding current
Available in 10 finishes, 5 lever designs, and 2 rose designs
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.

Attributes

Ship via: Can Ship UPS

Alternate Codes: ND97JDATH626, SCHND97JDATH626

Baa Qualified: Yes

Backset: 2-3/4" Backset

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Country of Origin: Mexico

Cylinder Type: 6-Pin, FSIC - Schlage, Less Core

Design: Athens

Door Application: Cylindrical Levers

Finish: Satin Chrome

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish Description: Satin Chrome

Fire Rated: Yes

Fire Rating: 180 min

Function: Corridor

Grade: Grade 1

Lever Design: Athens

Limited Warranty: 10 Year Warranty

Series: ND

Strike: ASA Strike

Subtype: Cylindrical

Type: Mechanical Commercial Locksets

Schlage ALX53-R-SPA-643E C123 238 Sparta Lever Entry Kit, Grade 2, FSIC Prep, Schlage Core, Aged Bronze

$293.25

2 In stock

Buy

Schlage ALX80-P-SAT-643E C 238 Grade 2 Saturn Lever, Key in Lever, C Keyway, Aged Bronze, 2-3/8in Backset

$249.90

2 In stock

Buy

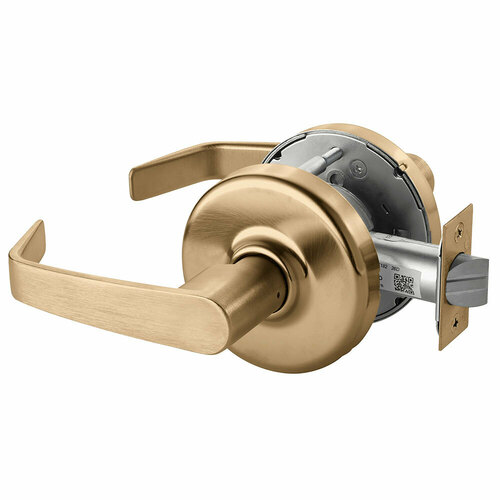

Corbin Russwin CLX3310 NZD 612 Cylindrical Lock

$436.88

20 In stock

Buy

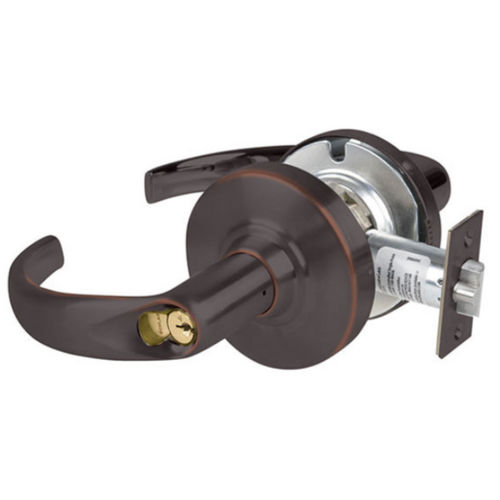

Schlage ALX53-R-SPA-643E C 238 Sparta Lever Entry Kit, Grade 2, FSIC Prep, Schlage Core, Aged Bronze
