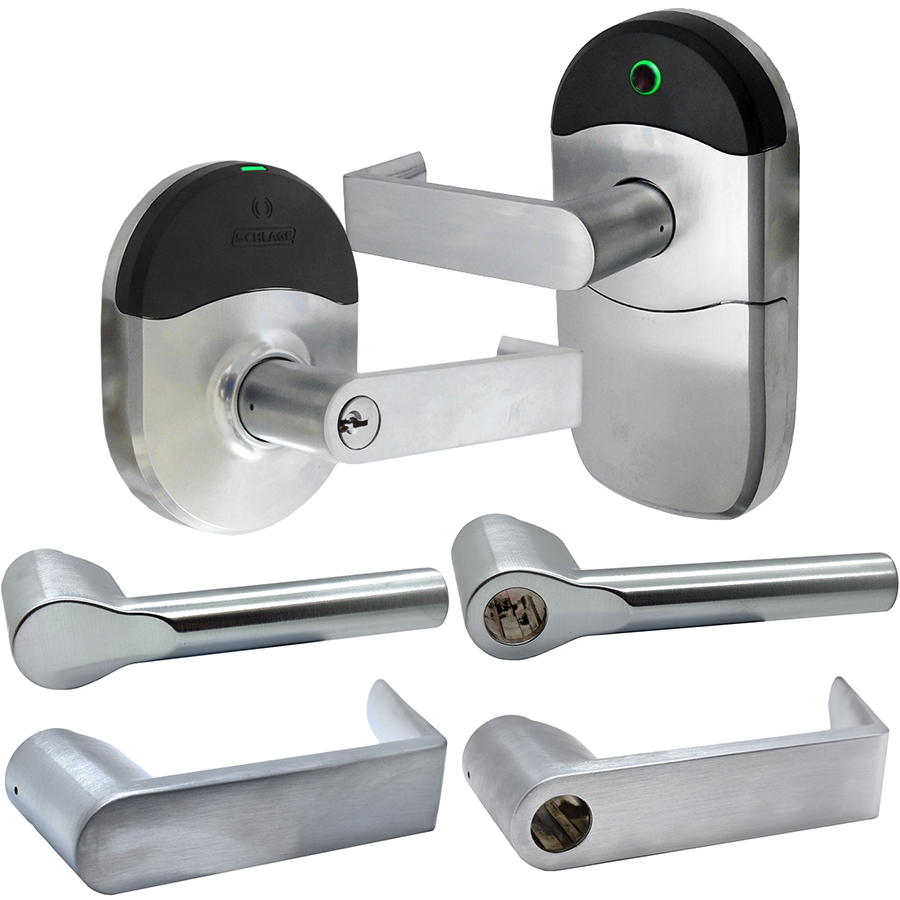

Schlage Electronic Security NDEB-PD-BRW-626-C KIT offers a cutting-edge mobile-enabled wireless cylindrical lock designed to enhance access control throughout your building. This versatile unit combines a lock, credential reader, door position sensor, and request-to-exit switch, streamlining installation by eliminating the need for additional components or wiring. With the capacity to manage up to 5,000 users and log 2,000 audits, this lock is perfect for office entries, conference rooms, and sensitive storage areas. Its multi-technology credential compatibility supports Schlage MiFare, Bluetooth, and NFC mobile credentials, while built-in Wi-Fi ensures automated updates directly from host software. The NDEB-PD-BRW-626-C’s weather-resistant design operates effectively in extreme temperatures, ranging from -31°F to 151°F, and features a battery life of up to two years using standard AA batteries. Its field-reversible handing allows for quick adjustments without tools, ensuring ease of use for any environment. Compliant with ANSI/BHMA Grade 1 standards, this lock is not only reliable but also aesthetically pleasing with a sleek satin chrome finish. Choose the Schlage NDEB-PD-BRW-626-C to provide secure, modern access control tailored to your specific needs.

KIT - Mobile Enabled Wireless Cylindrical Lock, 125khz Proximity, 13.56MHz Smart, 2.4GHz Bluetooth Low Energy Reader, Key-in-Lever Schlage C Keyway, Broadway Lever, 5000 Users, 2000 Audits, 2-3/4in Backset, ANSI Strike, Grade 1, 626/US26D Satin Chrome

The NDE mobile enabled wireless cylindrical lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings and offers users the security and convenience of using a smart device to gain access. NDE wireless locks simplify installation by combining the lock, credential reader, door position sensor and request-to-exit switch all in one unit, eliminating the need to install additional components or run wires to each opening. The open architecture design of NDE allows it to be managed by Allegion software or to be integrated into popular physical access control systems through our PACS Alliance program. This enables customers to choose the system that best fits their requirements now and transition to another solution at any time. NDE suites with all Schlage ND levers and keyways to provide attractive options to meet the requirements of nearly any environment.

Features:

• NDE includes interior push button with indication for storeroom, office, privacy, and apartment applications
• Standard multi-technology credential compatibility includes Schlage MiFare, Bluetooth and NFC mobile, and proximity
• Optional support for HID smart and NFC mobile credentials
• Wireless configuration from connected smartphones and tablets
• Built-in Wi-Fi enables automated daily updates sent directly from host software
• Networked real-time communication available with the Engage Gateway and PACS provider solutions
• Ideal for office and suite entries, conference rooms, common area doors, resident units, and sensitive storage areas
• Fits mechanical ND door prep with minor modifications
• Weather resistant design
• Lever handing is field reversible in seconds; no tools required
• Up to 2 years of battery life

NDE Wireless Lock Specifications:

• Users: Up to 5,000
• Audits: Up to 2,000
• Credential Verification Time: Smart and proximity: ≤ 1 second Mobile: mobile device dependent
• Visual Communications: LED (red, amber, green)
• Audible Communications: Audible indicator (field configurable)
• Communication Standards:
• 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
• WPA2, WPA, WEP, 802.1x
• Bluetooth low energy (version 4.2)
• Transport Layer Security (TLS) version 1.2
• Advanced Encryption Standard (AES), 256-bit
• Gateway Communication Range: Up to 30' in typical building environments. A detailed site survey is recommended using the Engage Test Kit (TKE).
• Wake-Up on Radio: Responds to command from host in less than 5 seconds when linked to ENGAGE Gateway (requires PACS provider system)
• Data Rate: 54 Mbps
• Connectivity Options:
• Bluetooth via mobile device (send updates at the lock)
• Wi-Fi access point (automatic daily updates)
• No-Tour
• ENGAGE Gateway (real-time communication) - RS-485 to ACP or IP to host
• Battery Life: Uses 4 AA batteries, Up to 2 years
• Operating Temperature:
• Exterior: -31° to 151°F (-35° to 66°C)
• Exterior: -13° to 151°F (-25° to 66°C) (NDEBSi)
• Interior: 32° to 120°F (0° to 49°C) (battery)
• Operating Humidity: 0 - 100% non-condensing

Specifications:

• Chassis: Cylindrical
• Handing: Right-handed from factory. Field reversible in seconds (no tools required)
• ANSI standard (Meets or exceeds): ANSI/BHMA A156.25-2013 (indoor/outdoor). ANSI/BHMA A156.2-2011, series 4000, grade 1
• Door Thickness: Standard: 1 5⁄8" - 2" (41mm - 51mm) only
• Backset: Standard: 2 3⁄4" (70mm). Optional: 2 3⁄8" (60mm)
• Latch Bolt: Standard: 1⁄2" (12mm) throw deadlatch (steel). Optional: 3⁄4" (19mm) throw anti-friction deadlatch available for pairs of fire doors
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1 3⁄16" lip, ANSI, DPS, 1 1⁄4" x 4". Optional: Additional strikes, lip lengths and ANSI strike box available
• Cylinder and Keys: Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys. Additional keying options available, including interchangeable cores, competitor brands, master keying and grand master keying

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• OME: Omega
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Available Status Signals:

• Request-to-exit
• Door position
• Interior cover tamper
• Magnetic tamper
• Battery status
• Lock/unlock status
• Communication status

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 643e - Aged bronze
• 619 - Satin nickel
• 622 - Matte black
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome with antimicrobial
