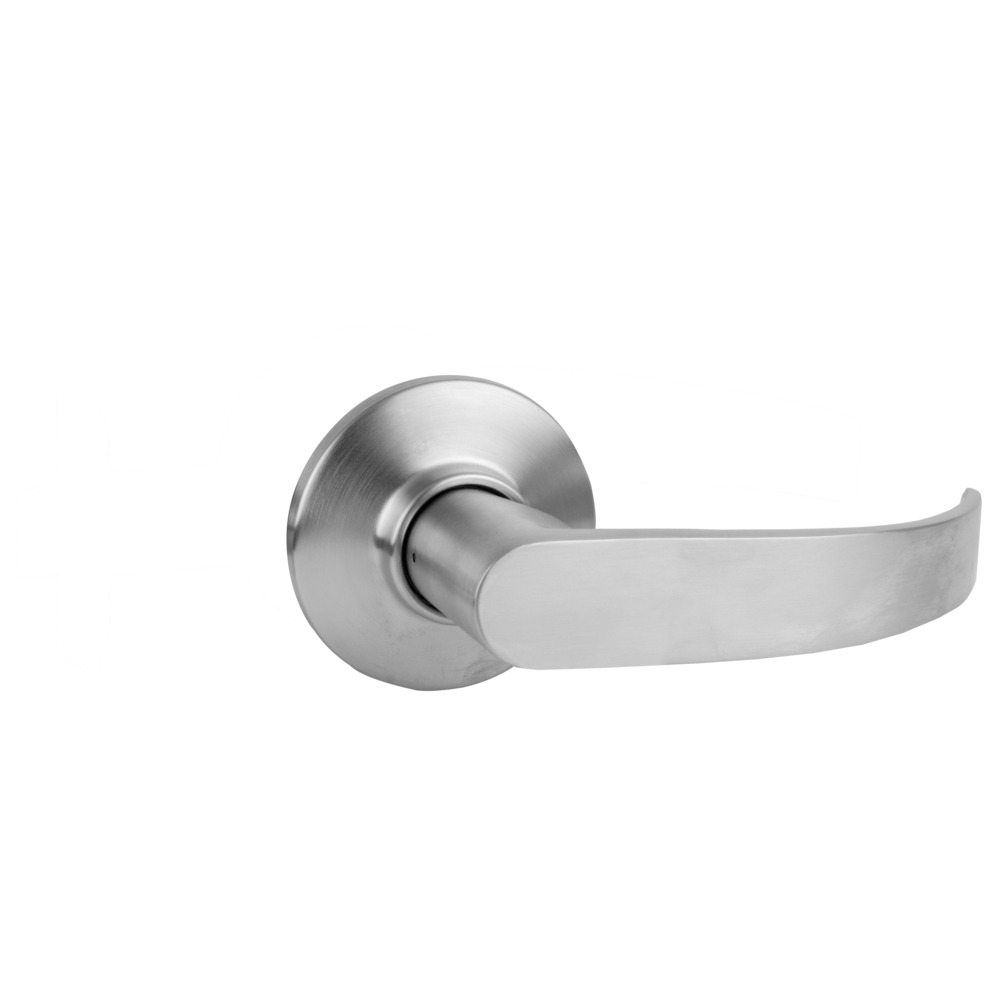

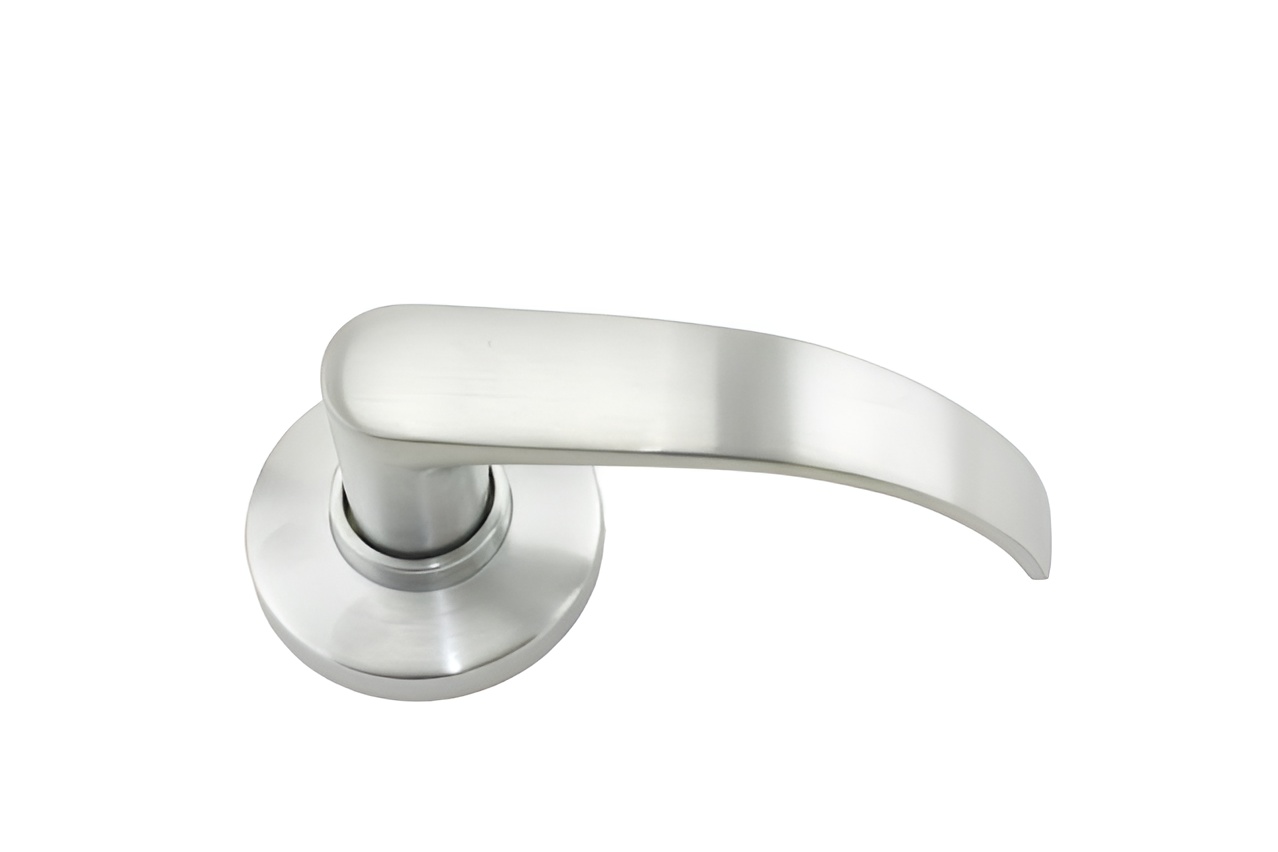

Schlage Commercial S170NEP626 S Series Single Dummy Neptune in Satin Chrome Finish offers a sleek and stylish solution for your door hardware needs. Designed as a single dummy trim, this product is ideal for applications where a handle is needed on one side of the door, providing an elegant touch without the need for locking mechanisms. This robust hardware piece is ANSI/BHMA Certified under A156.2-2011 standards, ensuring its durability and reliability in commercial settings. With a range suitable for doors between 1-5/8" to 2-1/8" in thickness, the S170NEP626 is versatile enough for various installations. Its commercial-grade construction guarantees longevity, while the UL Listing for 3 Hour Fire Door compliance adds an extra layer of safety. Featuring the distinctive Neptune lever design with a 2-9/16" rose and a 4-1/4" lever projection, this product balances aesthetics with functionality. The reversible handing allows for easy installation on both left and right-handed doors. Crafted from a zinc base, the satin chrome finish not only enhances its visual appeal but also ensures resistance to wear and tear. Backed by a limited 3-year mechanical warranty, the Schlage Commercial S170NEP626 is a reliable choice for any professional or residential setting.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2, Series 4000, Grade 2
Baa Qualified: Yes
Box Depth Fraction: 9-1/2"
Box Height Fraction: 4-3/4"
Box Width Fraction: 8-1/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Neptune
Dimension: 2-9/16" Rose with 4-1/4" Lever and 2-1/2" Projection
Door Thickness: 1-3/4 in.
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 170-Single Dummy Trim
Function Family: Dummy
Grade: Grade 2
Hand: Non-handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Lever Knob: Lever
Lever Knob Design: NEP - Neptune
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: Neptune
Leverknob Design: NEP - Neptune Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Years
Manufacturer Function: Single Dummy Trim
Manufacturer Function Description: Dummy trim for one side of door.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
PO date: 2024-09-25
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Projection: 2-1/2"
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 2-1/2" Rose Diameter
Rose Escutcheon Dimensions: 2-1/2"
Roseescutcheon Design: 2-1/2" Rose Diameter
Roseescutcheon Dimensions: 2-9/16"
Screws: Wood/Metal Screws
Series: S Series
Ship Weight: 5 lbs.
Structure Function: 170
Structure Outside Finish: 626
Structure Outside Trim: NEP
Structure Series: S
Subcategory: Tubular Locksets
Subtype: Tubular Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 043156942237
