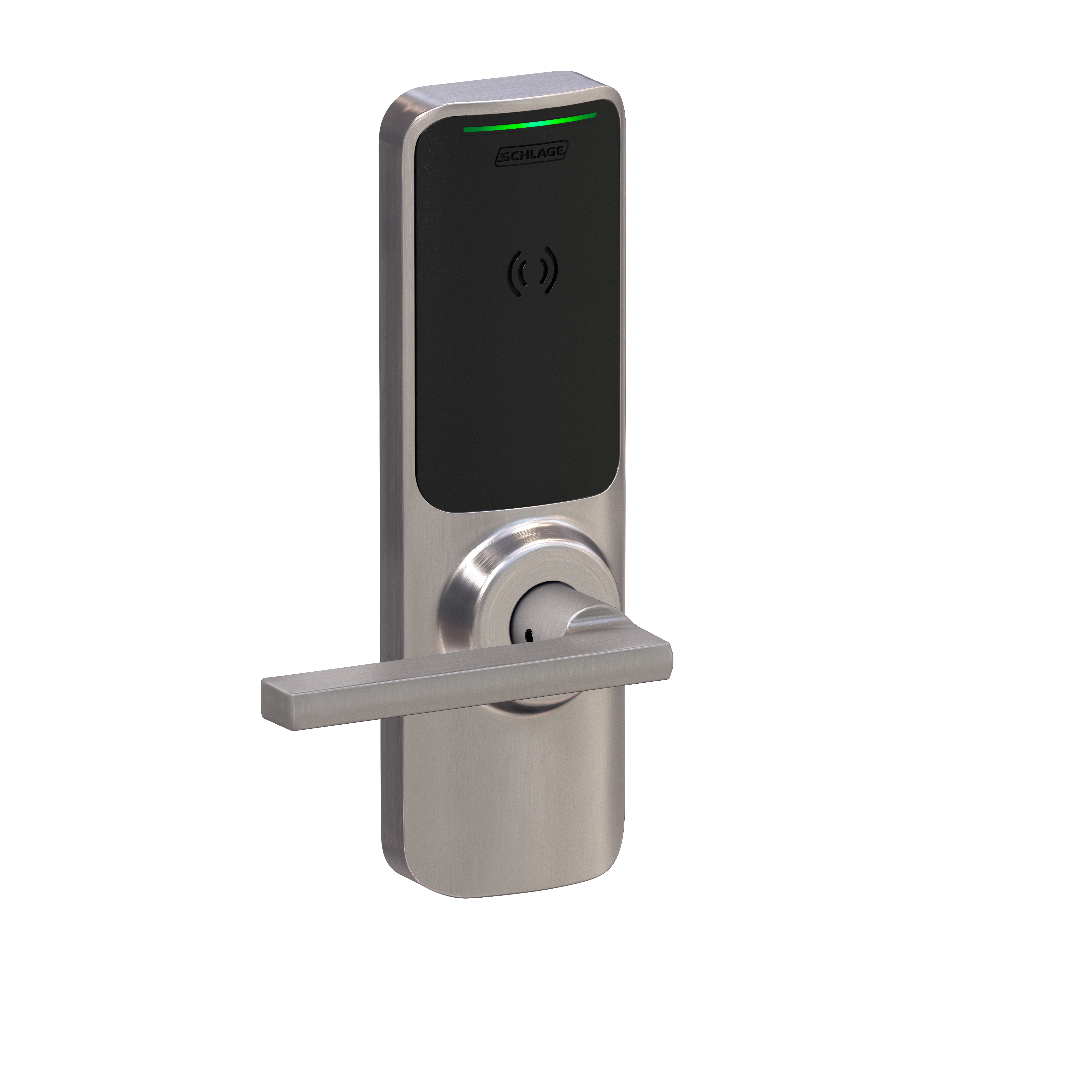

Schlage XE360MOFISMP6LAT619 XE360 Wireless Mortise Lock with Mobile Reader Satin Nickel Latitude LeverSchlage Electronics XE360MOFISMP6LAT619 XE360 Series Wireless Mortise Lock combines modern technology with exceptional security features. Designed for commercial applications, this offline indicator lock offers a smart mobile reader and a stylish Latitude lever, finished in satin nickel for a contemporary look. The XE360 is equipped to support various credential technologies, including Schlage MIFARE® and MIFARE DESFire® smart cards, Bluetooth®, and NFC mobile devices. Its advanced encryption ensures safe data communication, while the no-tour capability allows for versatile offline use. Future-proof your security with the innovative FleX Module™, which enables upgrades in communication types, memory, and encryption, ensuring your lock remains current as technology evolves. This mortise lock is constructed for durability, featuring a 2-3/4" backset and designed for 1-3/4" thick doors. Its dimensions are 2-13/20" x 8-29/50" for the exterior and 3" x 9-25/32" for the interior. Powering the lock requires just four AA batteries, making installation and maintenance straightforward. Backed by a limited one-year warranty, the XE360MOFISMP6LAT619 is a reliable choice for enhancing security in multi-family, commercial, and institutional settings.
XE360 Series Wireless Mortise Lock, Offline Indicator Function with Smart Mobile Reader, Latitude Lever, and 6 Pin C Keyway Satin Nickel Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Credential support includes Schlage MIFARE® and MIFARE DESFire®smart, Bluetooth® and NFC mobile
- Ready for the future with the innovative FleX ModuleTM which allows for communication type, memory and encryption upgrades
- No-Tour or offline system capability
- Advanced encryption keeps data and communications safe
- Wireless configuration using connected smartphones or tablets
Attributes
Backset: 2-3/4"
Category: Commercial Electronic Devices
Chassis Type: Mortise Chassis
Credential Technology: Smart: ? 1 second; Mobile: mobile device dependent
Design: Latitude Lever
Dimension: 2-13/20" x 8-29/50" Exterior by 3" x 9-25/32" Interior
Door Thickness: 1-3/4"
Finish: Satin Nickel
Finish Code: 619
Fire Rated: No
Function: Indicator (Inside Indication Only)
Hazardous Material: NO
Keyway: C Keyway
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: Latitude Lever
Manufacturer Warranty: Limited 1 Year Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Order_ Qty: 1
Power Supply: 4 AA Batteries
Product Type Used With: Mortise Doors
Reader Type: Smart (13.56 MHz), Bluetooth Low Energy (BLE) (2.4 GHz), and Near Field Communication (NFC)
Series: XE360
Strike: 10-072 Strike
Strike Dimension: 1-1/4" x 4-7/8" with 1-3/16" Lip
Subcategory: Commercial Electronic Locksets
Ul Listing Type: UL 294, UL 10C 3-hour, ULC 60839, CAN/ULC S104 3-hour
Upc: 194555169920
