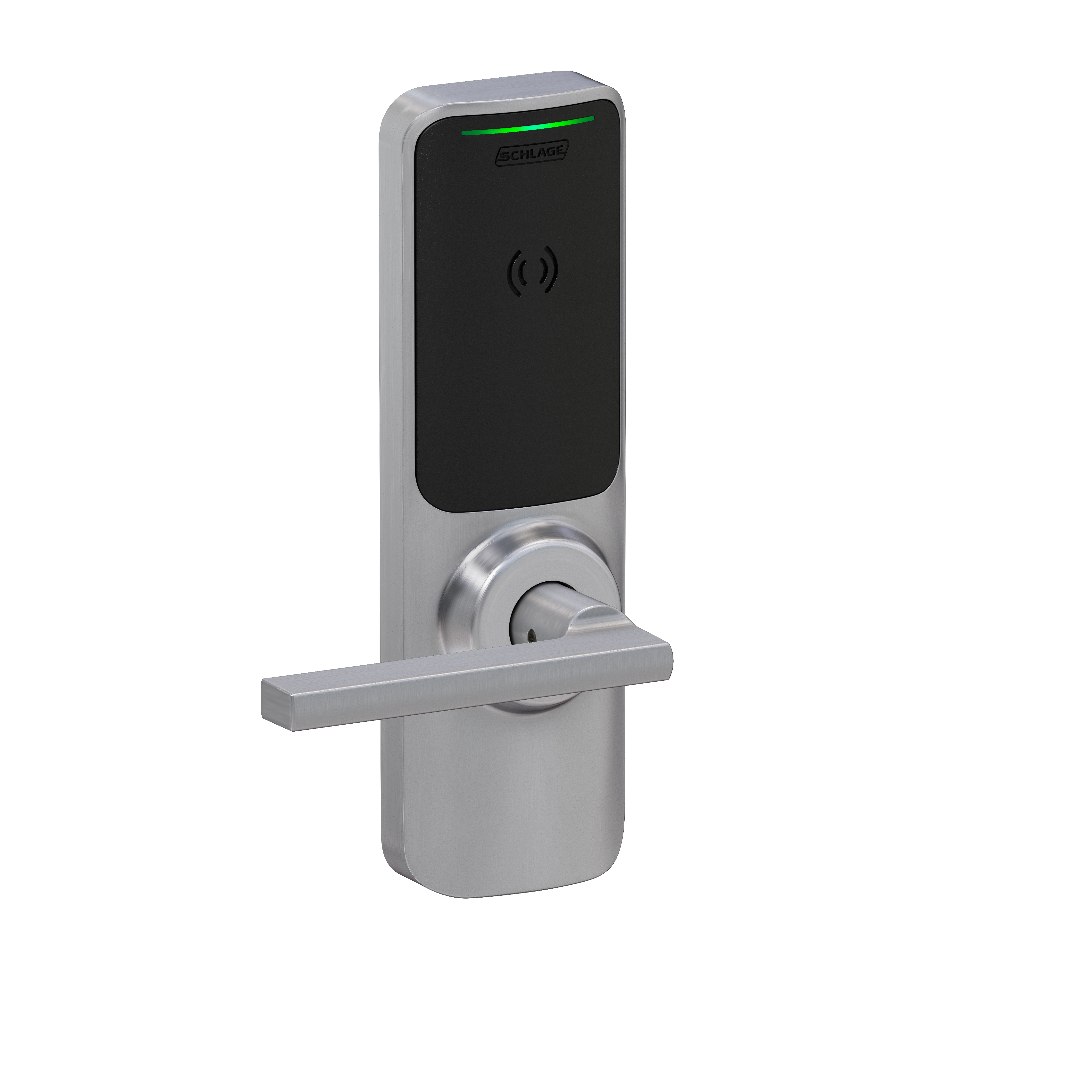

Schlage XE360MOFISMP6LAT626 XE360 Wireless Mortise Lock with Mobile Reader Satin Chrome FinishSchlage Electronics XE360MOFISMP6LAT626 XE360 Series Wireless Mortise Lock offers cutting-edge security solutions with its offline indicator function and smart mobile reader capabilities. This advanced lock features a sleek satin chrome finish and is designed for use with mortise doors, making it ideal for commercial settings. The Latitude lever provides both aesthetic appeal and functionality, ensuring ease of use. Supporting a range of credential technologies, including Schlage MIFARE® and MIFARE DESFire® smart cards, Bluetooth®, and NFC mobile devices, this lock ensures versatile access control. The lock's advanced encryption safeguards data and communications, providing peace of mind against unauthorized access. With a no-tour or offline system capability, it offers flexibility for various security needs. The innovative FleX Module™ allows for future upgrades in communication type, memory, and encryption, ensuring your security solution remains current. Its wireless configuration via smartphones or tablets facilitates easy adjustments and monitoring. Measuring 2-13/20" x 8-29/50" on the exterior and 3" x 9-25/32" on the interior, this mortise lock is built to accommodate doors with a thickness of 1-3/4". With a limited 1-year warranty, the Schlage XE360 Series Wireless Mortise Lock is a reliable choice for enhancing security in any commercial environment.
XE360 Series Wireless Mortise Lock, Offline Indicator Function with Smart Mobile Reader, Latitude Lever, and 6 Pin C Keyway Satin Chrome Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Credential support includes Schlage MIFARE® and MIFARE DESFire®smart, Bluetooth® and NFC mobile
- Ready for the future with the innovative FleX ModuleTM which allows for communication type, memory and encryption upgrades
- No-Tour or offline system capability
- Advanced encryption keeps data and communications safe
- Wireless configuration using connected smartphones or tablets
Attributes
Backset: 2-3/4"
Category: Commercial Electronic Devices
Chassis Type: Mortise Chassis
Credential Technology: Smart: ? 1 second; Mobile: mobile device dependent
Design: Latitude Lever
Dimension: 2-13/20" x 8-29/50" Exterior by 3" x 9-25/32" Interior
Door Thickness: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Fire Rated: No
Function: Indicator (Inside Indication Only)
Hazardous Material: NO
Keyway: C Keyway
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: Latitude Lever
Manufacturer Warranty: Limited 1 Year Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Order_ Qty: 1
PO date: 2024-10-03
Power Supply: 4 AA Batteries
Product Type Used With: Mortise Doors
Reader Type: Smart (13.56 MHz), Bluetooth Low Energy (BLE) (2.4 GHz), and Near Field Communication (NFC)
Series: XE360
Strike: 10-072 Strike
Strike Dimension: 1-1/4" x 4-7/8" with 1-3/16" Lip
Subcategory: Commercial Electronic Locksets
Ul Listing Type: UL 294, UL 10C 3-hour, ULC 60839, CAN/ULC S104 3-hour
Upc: 194555169937
