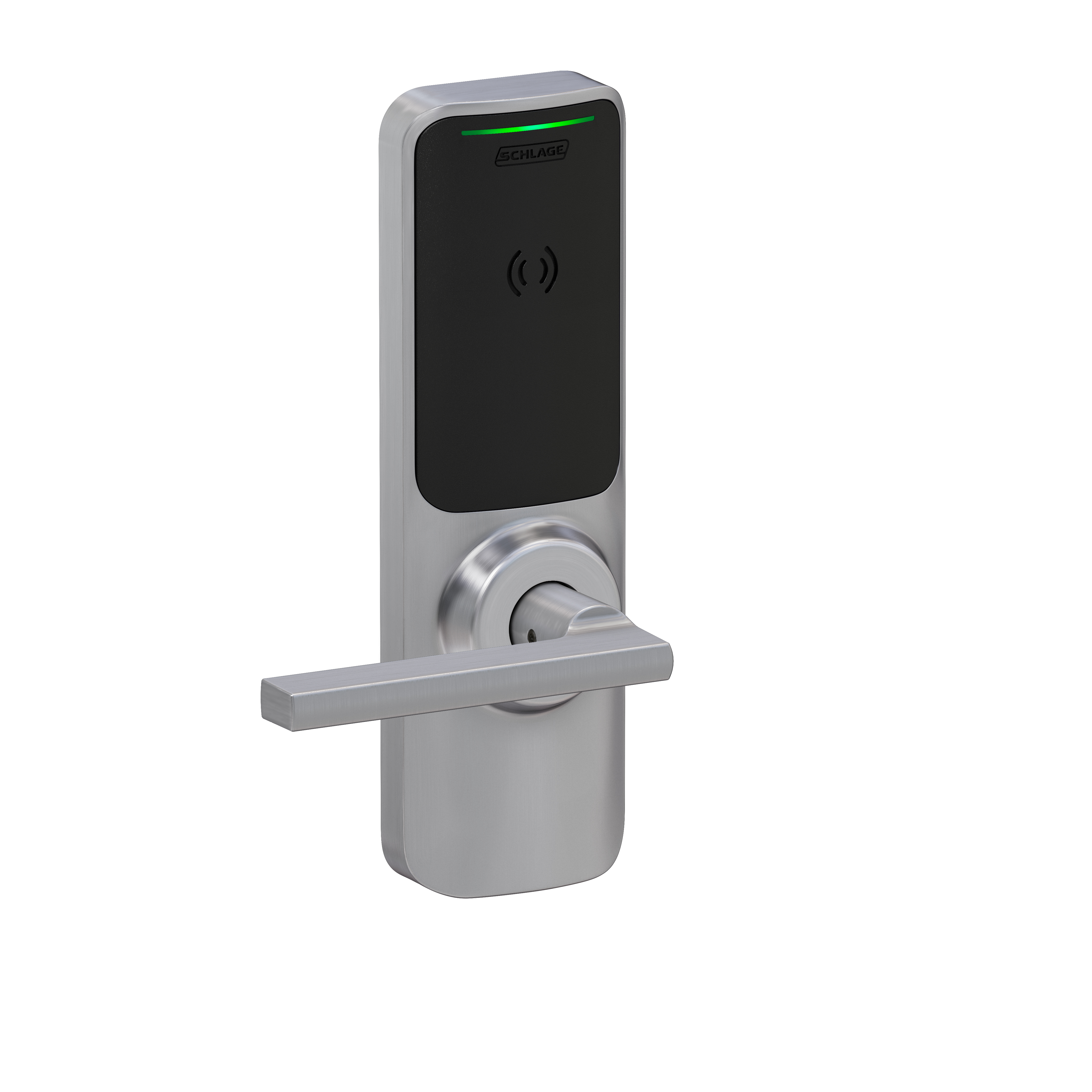

Schlage XE360TOFBSMP6LAT626 XE360 Wireless Tubular Lock, Push Button, Smart Reader, Latitude Lever, Satin ChromeSchlage Electronics XE360TOFBSMP6LAT626 XE360 Series Wireless Tubular Lock offers cutting-edge security solutions designed for commercial environments. This offline push button lock features a smart mobile reader and is equipped with a Latitude lever for both functionality and style. The lock supports a variety of credential technologies, including Schlage MIFARE® and MIFARE DESFire® smart cards, as well as Bluetooth® and NFC mobile devices, providing versatile access options to suit your needs. Advanced encryption safeguards data and communications, ensuring that your security remains uncompromised. The XE360's no-tour or offline system capability allows for efficient management without the need for constant monitoring. Future-proof your investment with the innovative FleX Module™, which facilitates upgrades in communication types, memory, and encryption. Designed to fit tubular doors, the lock features an adjustable backset of 2-3/8" or 2-3/4" and a 2-1/8" crossbore size. Finished in a sleek satin chrome, it complements various architectural styles while providing robust protection. The XE360 operates on 4 AA batteries, ensuring reliable performance. With a limited 1-year warranty, this lock is built to deliver peace of mind for years to come.
XE360 Series Wireless Tubular Lock, Offline Push Button Function with Smart Mobile Reader, Latitude Lever, and 6 Pin C Keyway Satin Chrome Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Credential support includes Schlage MIFARE® and MIFARE DESFire®smart, Bluetooth® and NFC mobile
- Ready for the future with the innovative FleX ModuleTM which allows for communication type, memory and encryption upgrades
- No-Tour or offline system capability
- Advanced encryption keeps data and communications safe
- Wireless configuration using connected smartphones or tablets
Attributes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Category: Commercial Electronic Devices
Chassis Type: Tubular Chassis
Credential Technology: Smart: ? 1 second; Mobile: mobile device dependent
Crossbore Size: 2-1/8" Bore
Dimension: 2-13/20" x 8-29/50" Exterior by 3" x 9-25/32" Interior
Door Thickness: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Fire Rated: No
Function: Button (Inside Push Button, IPB)
Hazardous Material: NO
Keyway: C Keyway
Latch Faceplate Dimension: 1" x 2-1/4"
Lever Knob Design: Latitude Lever
Manufacturer Warranty: Limited 1 Year Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Order_ Qty: 1
Power Supply: 4 AA Batteries
Product Type Used With: Tubular Doors
Reader Type: Smart (13.56 MHz), Bluetooth Low Energy (BLE) (2.4 GHz), and Near Field Communication (NFC)
Series: XE360
Strike: A500-074 Strike
Strike Dimension: 1-1/8" x 2-3/4"
Subcategory: Commercial Electronic Locksets
Ul Listing Type: UL 294, UL 10C 3-hour, ULC 60839, CAN/ULC S104 3-hour
Upc: 194555153554
