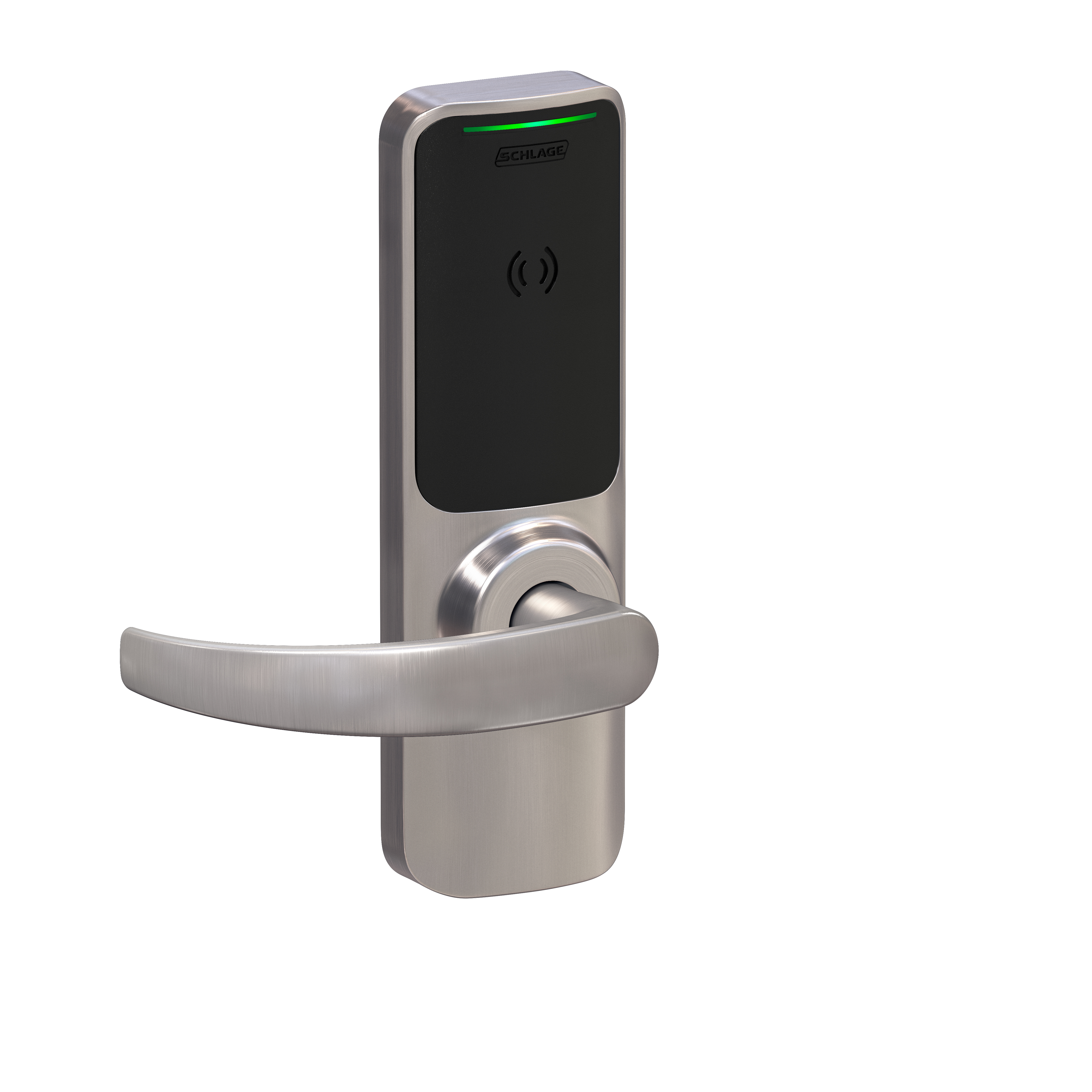

Schlage XE360TOFBSMP6NEP619 XE360 Wireless Tubular Lock, Push Button, Smart Reader, Neptune Lever, Satin NickelSchlage Electronics XE360TOFBSMP6NEP619 XE360 Series Wireless Tubular Lock combines advanced security features with user-friendly functionality. Designed for commercial applications, this lockset supports various credential technologies, including Schlage MIFARE® and MIFARE DESFire® smart cards, Bluetooth®, and NFC mobile access, ensuring seamless integration into modern security systems. With its offline push button function and the Neptune Lever design, the XE360 offers an efficient locking solution that can be easily operated with a simple push. The lock is equipped with advanced encryption protocols, safeguarding data and communications against unauthorized access. The wireless configuration capability allows for convenient setup using connected smartphones or tablets. This robust tubular lock features an adjustable backset of 2-3/8" or 2-3/4", accommodating various door installations with a thickness of 1-3/4". The satin nickel finish not only enhances its aesthetic appeal but also ensures durability in high-traffic environments. Additionally, the lock is powered by four AA batteries and is ready for the future with the innovative FleX Module™, which allows for upgrades in communication types, memory, and encryption. The XE360 Series is a reliable choice for building professionals seeking a secure, efficient, and modern locking solution.
XE360 Series Wireless Tubular Lock, Offline Push Button Function with Smart Mobile Reader, Neptune Lever, and 6 Pin C Keyway Satin Nickel Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Credential support includes Schlage MIFARE® and MIFARE DESFire®smart, Bluetooth® and NFC mobile
- Ready for the future with the innovative FleX ModuleTM which allows for communication type, memory and encryption upgrades
- No-Tour or offline system capability
- Advanced encryption keeps data and communications safe
- Wireless configuration using connected smartphones or tablets
Attributes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Category: Commercial Electronic Devices
Chassis Type: Tubular Chassis
Credential Technology: Smart: ? 1 second; Mobile: mobile device dependent
Crossbore Size: 2-1/8" Bore
Design: Neptune Lever
Dimension: 2-13/20" x 8-29/50" Exterior by 3" x 9-25/32" Interior
Door Thickness: 1-3/4"
Finish: Satin Nickel
Finish Code: 619
Fire Rated: No
Function: Button (Inside Push Button, IPB)
Hazardous Material: NO
Keyway: C Keyway
Latch Faceplate Dimension: 1" x 2-1/4"
Lever Knob Design: Neptune Lever
Manufacturer Warranty: Limited 1 Year Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Order_ Qty: 1
Power Supply: 4 AA Batteries
Product Type Used With: Tubular Doors
Reader Type: Smart (13.56 MHz), Bluetooth Low Energy (BLE) (2.4 GHz), and Near Field Communication (NFC)
Series: XE360
Strike: A500-074 Strike
Strike Dimension: 1-1/8" x 2-3/4"
Subcategory: Commercial Electronic Locksets
Ul Listing Type: UL 294, UL 10C 3-hour, ULC 60839, CAN/ULC S104 3-hour
Upc: 194555169722
