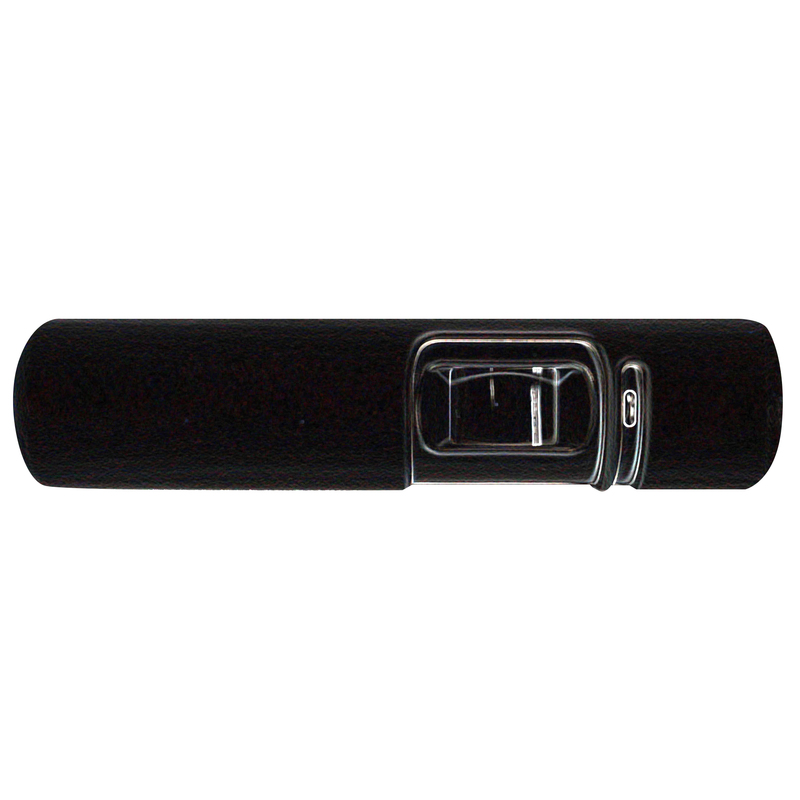

SDC MD-31DB PIR Motion Sensor

SDC MD-31DB PIR Motion Sensor is a sophisticated passive infrared detector tailored for request-to-exit applications. This sensor boasts an adjustable time delay of 1 to 60 seconds, allowing for customizable operation to suit various environments. Its internally pointable coverage field enables precise detection angles, providing flexibility in installation. When positioned at a 14¼-degree angle downwards, the MD-31DB covers an area of 5 x 6 feet at a height of 7 feet, expanding to 10 x 12 feet at 15 feet high. The unique wrap-around U-pattern projection ensures enhanced security by inhibiting tampering, making it an ideal choice for commercial settings. The sensor can be conveniently mounted to the frame header, wall, or ceiling, offering versatility in installation. Additionally, it complies with NFPA applications, ensuring safety and reliability. Complementing the MD-31DB are various exit buttons and push button configurations, including options from the 410, 420, and 430 Series, catering to diverse request-to-exit needs. The sensor operates on a voltage range of 12/24V AC/DC and is designed for both commercial and residential use. Enhance your access control system with the convenience and efficiency that the SDC MD-31DB PIR Motion Sensor provides.

PIR Motion Sensor

Passive Infrared Egress Sensor, Black

The SDC MD31D passive infrared detector is specifically designed for request-to-exit applications. It has an adjustable 1-60 second time delay. The coverage field is internally pointable. When angled 14¼ down, coverage may be 5 x 6 feet at 7 feet high to 10 x 12 feet at 15 feet high. The MD31D projects a wrap around U pattern down and away from the door to inhibit tampering. The MD31D may be mounted to the frame header, wall or ceiling. Complies with NFPA applications.

A variety of exit buttons, push buttons and contact configurations to fit several request-to-exit application needs.

Additionally, SDC's wave-to-open switches and motion sensors provide hands free compliance and convenience for touchless applications.

410 Series

Narrow Square Push Button Switches

420 Series

Single Gang Square Push Button Switches

430 Series

1-1/2” Mushroom Button Switches

440 Series

2-5/8” Mushroom Button Switches

450 Series

Vandal Stainless Steel Button Switches

460 Series

Capacitive Stainless Steel Button Switches

470 Series

No Touch Wave-To-Open Switches

MD-31D Series

Request-To-Exit PIR Motion Sensors

EP499 Series

Explosion Proof

Resources

• SDC Exit Switches & Sensors Cut Sheet
