Seco-Larm CL-210M-U3BQ Motorized Cabinet Lock provides enhanced security for lockers, cabinets, cases, and drawers with its robust design and advanced features. This motorized lock operates on 12-28V AC/DC, ensuring compatibility with various power sources. With a holding force of 220 lbs (100kg), it secures your valuables effectively while offering fail-secure operation for added peace of mind. Built-in lock and door status sensors allow for real-time monitoring, ensuring that you know when the lock is engaged and whether the door is closed completely. The compact dimensions of the lock body, measuring 2-3/8" x 2-3/8" x 7/8", enable flexible installation in tight spaces, and it is compatible with existing keypads or readers for seamless integration. The CL-210M-U3BQ features a spring mechanism that gently pushes the door open, offering convenience in high-traffic areas. Its versatility is further enhanced by the ability to mount in various positions, making it suitable for different applications. Operating within a temperature range of 14° to 113° F (-10° to 45° C) and humidity levels of 0 to 95% non-condensing, this motorized cabinet lock is designed for reliability in diverse environments.

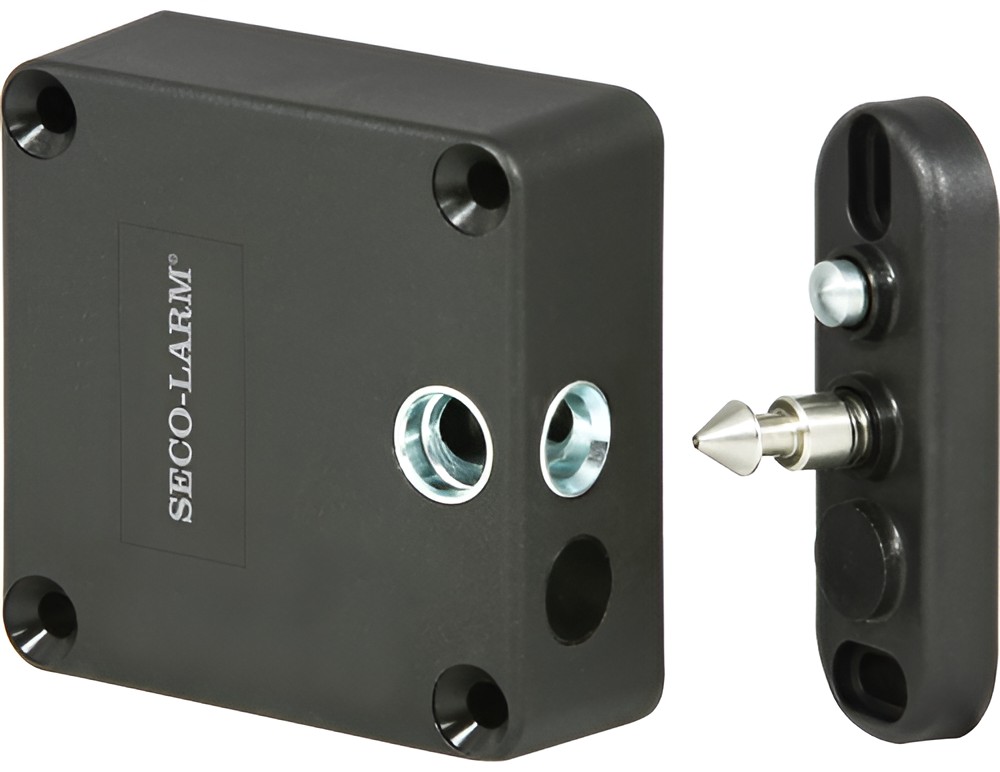

Motorized Cabinet Lock 12-28V AC/DC, Lock Status Door Status Sensors, 220lbs Holding Force, Fail-Secure

The motorized cabinet lock provides security for lockers, cabinets, cases and drawers. The built-in lock and door status sensors and fail-secure operation offer additional security. The motorized cabinet lock's small size and compatibility with existing keypads or readers allow for various installations.

Features:

• Electronically secure lockers, cabinets, cases, and drawers
• Lock status sensor allows for monitoring whether the lock is engaged
• Door status sensor allows for monitoring whether the door is closed completely
• Compatible with existing keypads or readers
• Spring feature gently pushes door open
• Fail-secure operation
• Various mounting positions
• 12~28 VAC/VDC operating voltage
• Two locking orientations

Specifications:

• Operating Humidity: 0~95% Non-condensing
• Dimensions: Lock body: 2-3/8" x 2-3/8" x 7/8" (60 x 60 x 22mm), Rosette: 13/16" x 2-3/8" x 1-1/16" (20 x 60 x 27mm)
• Holding Force: 220-lb (100kg)
• Operating Voltage: 12~28 VAC/VDC
• Current Draw: Standby: 69mA @ 12/24 VDC, active: 165mA @ 12/24 VDC
• Housing material: Polyamide
• Operating Temperature: 14°~113° F (-10°~45° C)
• Weight: 3-oz (93g)
• Relock Delay: 2~5 Seconds
