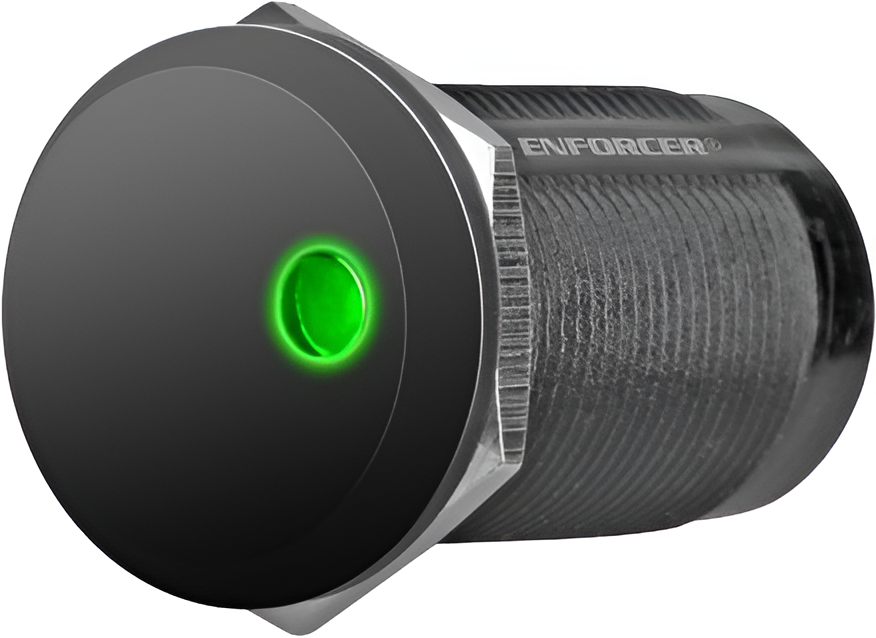

Seco-Larm CS-PD115-PAQ Infrared Proximity Sensor, 6in Range, 1A Relay, 20s Delay or Toggle

Seco-Larm CS-PD115-PAQ Infrared Proximity Sensor offers an innovative solution for both anti-theft and access control applications. This compact sensor can be programmed to trigger an alarm when an object is removed from the sensing area or unlock an electronic door lock when a hand passes in front of it, providing versatility in various settings. Designed for ease of use, the CS-PD115-PAQ features no-touch operation, minimizing the risk of cross-contamination from germs or viruses. Its adjustable sensing range extends up to 6 inches, making it suitable for different environments. The sensor also includes a selectable LED indicator that changes color from red to green (or vice versa) to display its activation status. Built to withstand outdoor conditions, the weather-resistant (IP65) design ensures reliable performance when properly installed. With an operating voltage of 12-24 VDC and a current draw of just 30mA at 12VDC, this sensor is both efficient and durable, boasting an impressive operating life of 100,000 hours or 1,000,000 uses. Weighing only 0.35 oz and measuring 1-3/8" x 7/8" x 7/8", the Seco-Larm CS-PD115-PAQ is easy to integrate into any security system. Enhance your security solutions with this advanced proximity sensor.

Infrared Proximity Sensor, Adjustable Range up to 6in, 1A Relay, Trigger 20 Second Delay or Toggle, Polycarbonate

The Enforcer IR proximity sensor is a compact sensor that can be programmed to trigger an alarm when an object (such as a valuable possession) is removed from the sensing area or unlock an electronic door lock when an object (such as a hand) is passed in front of the sensor. This flexibility makes the sensor ideal for both anti-theft and access control applications.

Features:

• No-touch operation reduces the risk of spread of germs, viruses, etc., through cross-contamination
• Adjustable sensor range up to 6" (15cm) 1A relay, adjustable trigger duration 0.5~20 seconds or toggle
• Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
• Weather-resistant (IP65) for outdoor use. Weather-resistant when properly installed
• OEM/Private label available

Specifications:

• Sensing Range: 2"~6" (5~15 cm)
• LEDs: Red- standby, green- triggered
• Alarm Output: 1A@30VDC
• Output Time: 1~20 s or toggle
• Operating Voltage: 12~24 VDC
• Current Draw: 30mA @ 12VDC
• Operating Life: 100,000 Hours or 1,000,000 uses
• Operating Temperature: 14°~158° F (-10°~70° C)
• Weight: 0.35-oz (10g)
• Dimensions: 1-3/8" x 7/8" x 7/8" (35 x 23 x 23 mm)
