Seco-Larm E-931-S35RRQ Reflective Photo Beam Sensor offers a reliable and efficient solution for detecting objects within a designated area. With a sensing range of up to 35 feet, this sensor is ideal for various applications including garage doors, outdoor gates, and industrial automation. It operates on a versatile voltage range of 12-240 VDC and 24-240 VAC, making it suitable for both residential and commercial use. Designed for both indoor and outdoor environments, the E-931-S35RRQ features an IP66 waterproof enclosure, ensuring durability against harsh weather conditions. The current draw is efficient, with standby consumption at 12VDC@20mA, allowing for low power usage without compromising performance. The sensor reacts quickly with a maximum reaction time of just 10ms, making it responsive to movements. Included with the sensor are brackets and mounting hardware for easy installation, alongside a pre-wired 6.5ft cord. This compact unit not only maximizes functionality but also integrates seamlessly into existing systems. Whether you're looking to enhance security or streamline operations, the Seco-Larm E-931-S35RRQ is a dependable choice for effective object detection in any setting.

Reflective Photo Beam Sensor, up to 35ft, 12-240VDC, 24-240 VAC

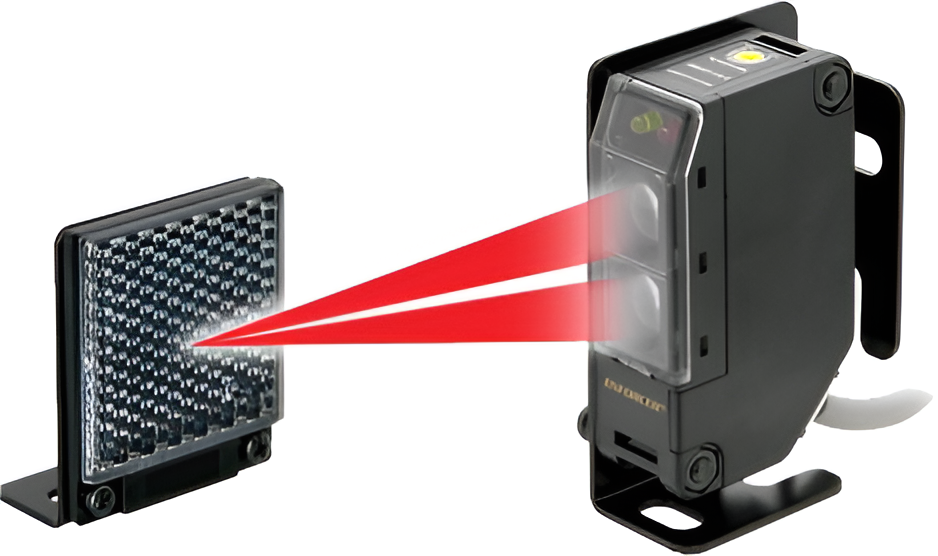

The Enforcer E-931-S35RRQ retro-reflective photoelectric beam sensor provides reliable sensing of objects that enter the space between the sensor and reflector, thus breaking the infrared beam. It is suitable for various types of such as detection such as sensing approaching vehicles to open a garage door or outdoor gate, as an entry notification for stores, for measuring parking distances, industrial automation, or an alarm notification, as well as many other uses.

Features:

• For outdoors gates, garage doors, etc.
• Adjustable sensing range
• 12~240 VDC / 24~240 VAC Operation
• Current draw: Up to 40mA@12VDC
• For indoor or outdoor use (IP66)
• Pre-wired 6.5ft (2m) cord
• Brackets and mounting hardware included
• Compact size
• New single-gang box and wall-mount brackets available

Applications:

• Sensor for garage doors, outdoor gates or overhead doors
• Sensor for industrial automation to detect objects on manufacturing line

Specifications:

• Type: NIR Reflective photoelectric sensor
• Current Draw: Standby- 12VDC@20mA; 24VDC@10mA, active- 12VDC@40mA; 24VDC@20mA
• Sensing Range: 0.5′ to 35′ (0.1 – 11m)
• Operating Voltage: 12~240 VDC / 24~240 VAC
• Reaction time: 10ms (max.)
• Light Source: IR LED
• LEDs – Red: Active
• LEDs – Yellow: Standby
• Output: SPDT Relay output
• Switching Capacity: 250VAC/1A, 30VDC/2A
• Operating Temperature: -4º~131º F (-20º~55º C)
• Enclosure: IP66 Waterproof
• Trigger Output: SPDT Relay output (NO/NC/COM)

Accessories:

• E-931ACC-HR1Q: Hood for photoelectric beam sensor reflectors
• E-931ACC-BLS6Q: Flush mount bracket for photoelectric beam sensors
• E-931ACC-BLS7Q: "L" Mounting brackets for photoelectric beam sensors
• E-931ACC-BLS8Q: Wall mounting bracket for IR photoelectric beam sensors
• E-931ACC-R2Q: Square reflector for photoelectric beam sensors
• E-931ACC-RC1Q: Round reflector for photoelectric beam sensors
