Seco-Larm E-941SA-1K2PD 1200lbs Single Maglock 12/24VDC with LED, Bond Sensor, and Timer 1-78 Seconds delivers robust security for any access point. Featuring a powerful holding force of 1,200 lbs, this electromagnetic lock utilizes a strong magnetic field when activated, ensuring that unauthorized entry is effectively prevented. When power is removed, the door operates normally without residual magnetism, enhancing convenience. The E-941SA-1K2PD is equipped with a built-in status LED that indicates locked or unlocked status, alongside a bond sensor that offers a 3A@12VDC dry relay output for monitoring door conditions. A timer adjustable from 1 to 78 seconds allows for customizable access control, making it suitable for varied applications. Constructed with anodized aluminum housing, this maglock is designed for durability and ease of installation. It comes with a complete set of mounting hardware and an adjustable mounting bracket, accommodating typical installations and atypical situations with additional brackets available. The lock operates on selectable voltages of 12/24 VDC, with a current draw of 500mA at 12VDC and 270mA at 24VDC. With multiple UL listings for access control system units, the Seco-Larm E-941SA-1K2PD is an excellent choice for professionals seeking reliable security solutions backed by a lifetime limited warranty in the USA and Canada.

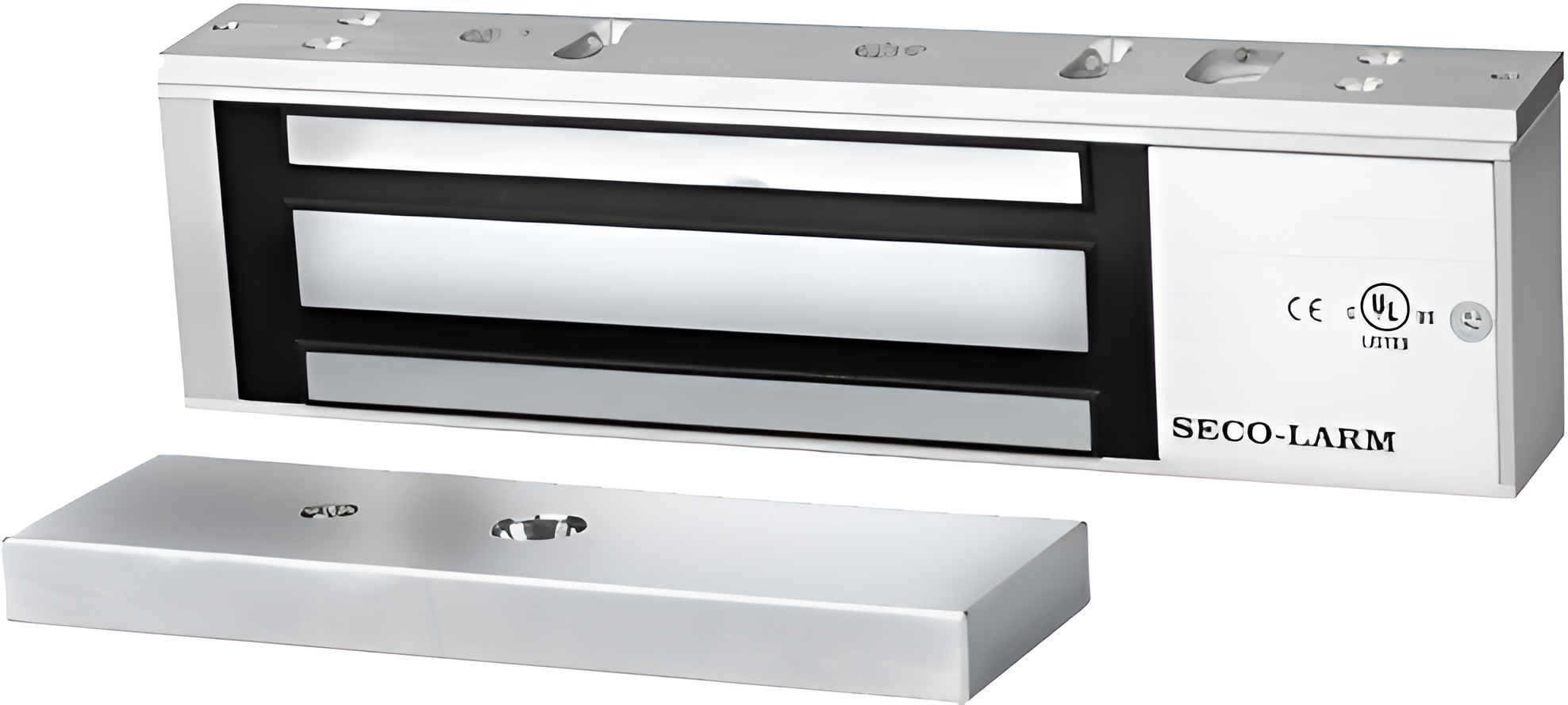

1200lbs Single Maglock 12/24VDC with LED, Bond Sensor, and Timer 1-78 Seconds

The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.

Features:

• No residual magnetism
• MOV Surge protection
• Built-in status LED shows locked/unlocked status
• Built-in bond sensor with 3A@12VDC dry relay output for monitoring door status
• Built-in timer: 1~78 seconds
• Anodized aluminum housing (US28)
• Adjustable mounting bracket
• Complete mounting hardware for typical installations
• Additional brackets available for easy mounting or atypical situations
• Detachable faceplate for easy access to wiring
• 12/24VDC Selectable
• Multiple UL listings: UL294 Access Control System Units – USA
• Lifetime limited warranty - Warranty applies in the USA and Canada only.

Specifications:

• Holding Force: 1,200-lb (545kg)
• Operating Voltage: 12/24 VDC (selectable)
• Current Draw: 500mA@12VDC, 270mA@24VDC
• Operating Temperature: 32º~120º F (0º~49º C)
• Magnet Dimensions: 10-1/2" x 2-5/8" x 1-9/16" (267 x 67 x 67mm)
• Armature Dimensions: 7-1/4" x 2-3/8" x 5/8" (185 x 61 x 16mm)
• Destructive Attack: Level I
• Line Security: Level I
• Standby Power: Level I
• Endurance: Level IV
• Weight: 11-lb (5kg)
• Bond Sensor: Yes
• Status LED: Yes
• Timer: Yes

Accessories:

• E-941S-1K2/AP: Armature plate for 1,200-lb & 1,500-lb series electromagnetic locks
• E-941S-1K2/HQ: Armature plate holder for 1,200-lb series electromagnetic locks
• E-941S-1K2/LQ: L-Bracket for 1,200-lb series electromagnetic locks
• E-941S-1K2/PQ: 1/4" Plate spacer for 1,200-lb series electromagnetic locks
• E-941S-1K2/UQ: Glass door u-bracket for 1,200-lb series electromagnetic locks
• E-941S-1K2/ZQ: Z-Bracket for 1,200-lb series electromagnetic locks
• E-941S-1K2/HP: 1/4" Header plate for 1,200-lb series electromagnetic locks
