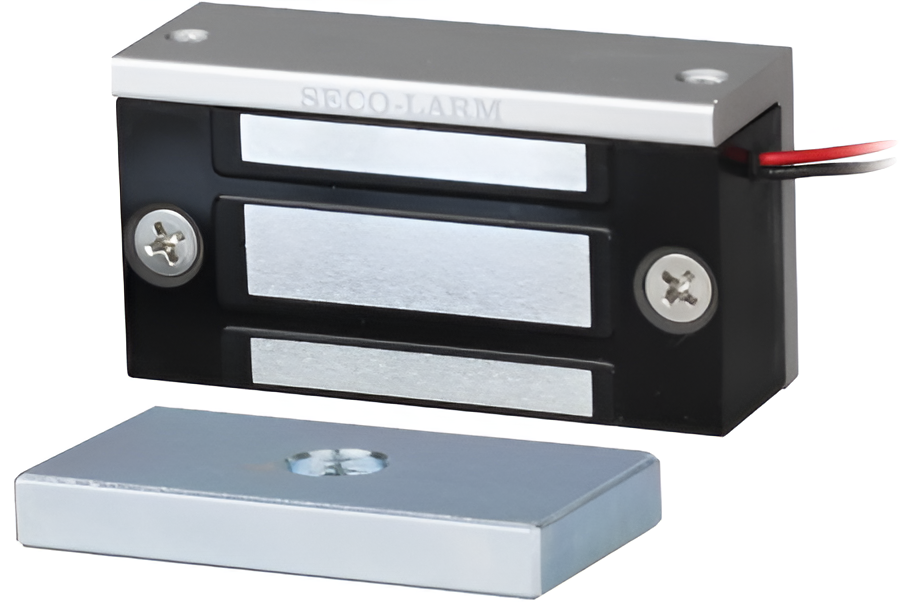

Seco-Larm E-941SA-80Q 80lbs Single Mini Maglock 12/24VDC

Seco-Larm E-941SA-80Q 80lbs Single Mini Maglock 12/24VDC is designed for security applications where space is at a premium without compromising strength. This compact electromagnetic lock features a powerful holding force of 80 lbs at 12VDC and 110 lbs at 24VDC, ensuring robust security for cabinets, drawers, and other small enclosures. Operating within a voltage range of 12 to 24 VDC, the E-941SA-80Q has a low current draw of just 85mA at 12VDC and 165mA at 24VDC, making it energy-efficient. Its construction includes MOV surge protection and waterproof IP67 rating, allowing reliable performance in various environments. The absence of residual magnetism ensures that once power is removed, the door can be easily opened. Installation is simplified with complete mounting hardware included, making it suitable for both professional and DIY applications. The lock operates effectively within a temperature range of 14º to 131º F (-10º to 55º C) and is CE certified for safety standards. Whether enhancing security in residential spaces or commercial settings, the Seco-Larm E-941SA-80Q is a versatile choice that combines efficiency and reliability in a compact design.

80lbs Single Mini Maglock 12/24VDC

When power is applied to an electromagnetic lock, it activates a built-in electromagnet that attracts a door-mounted steel armature plate, preventing the door from opening. When power is removed, the electromagnet releases the armature, allowing the door to open.

Features:

• ETL, Conforms to UL Std. 294
• For spaces where small size is required, including cabinets, drawers, etc.
• Low current draw
• No residual magnetism
• MOV Surge protection
• Complete mounting hardware for typical installations

Specifications:

• Holding Force: 80-lb (36kg)@12VDC / 110-lb (51kg)@24VDC
• Operating Voltage: 12~24 VDC±10%
• Current Draw: 85mA@12VDC / 165mA@24VDC
• IP Rating: Waterproof IP67
• Operating Temperature: 14º~131º F (-10º~55º C)
• Certification: CE
• Electromagnet Dimensions: 2-3/4" x 1-1/4" x 13/16" (70 x 31 x 20mm)
• RoHS Compliance: Yes
• Armature Dimensions: 2-3/8" x 1-1/4" x 3/8" (60 x 31 x 9mm)
• Weight: 14.4-oz (410g)
• Case Quantity: 50 pcs

Accessories:

• E-941S-80A/LQ: L-Bracket for 80-lb electromagnetic lock
• E-941S-80M/HQ: Armature holder for 80-lb electromagnetic lock
