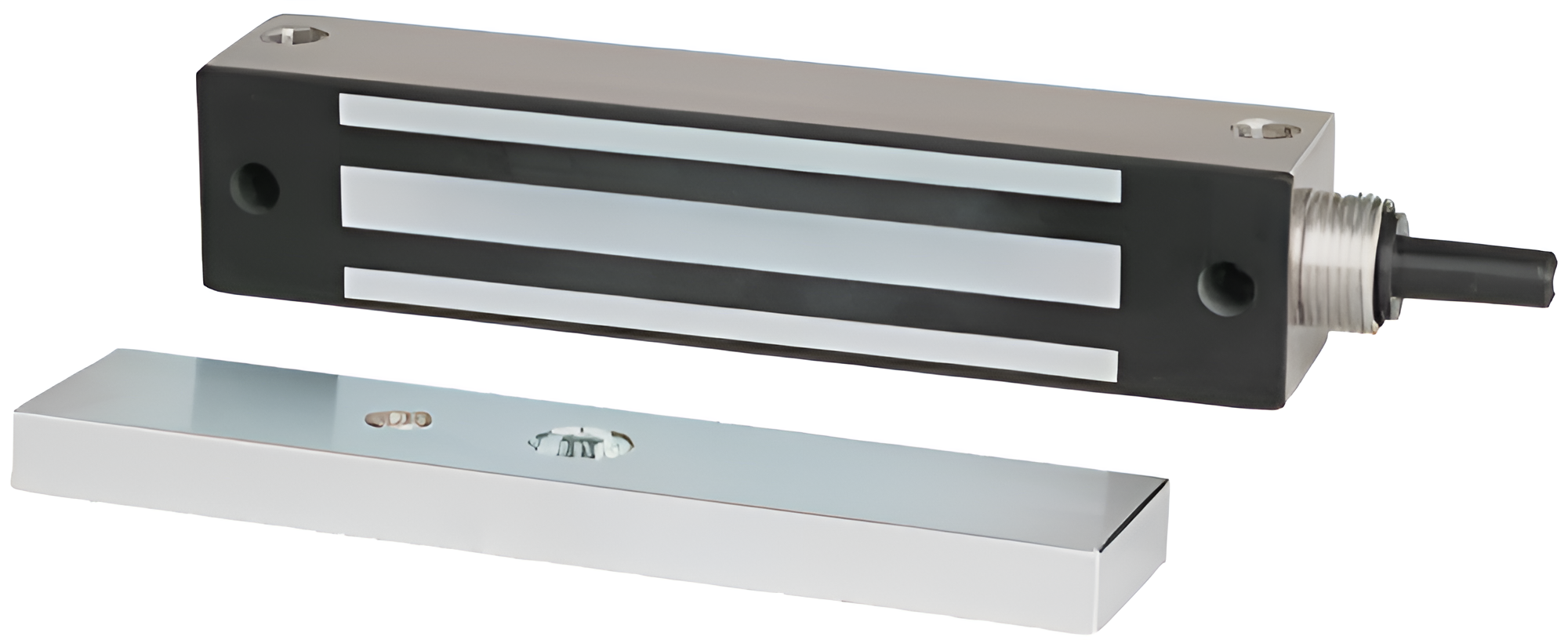

Seco-Larm E-946FC-600Q 600lbs Maglock Face Mount 12/24VDC, Weldable, Indoor/Outdoor, Gate

Seco-Larm E-946FC-600Q 600lbs Gate Maglock is designed to provide robust security for both sliding and swinging gates. With a powerful holding force of 600 lbs (272 kg), this maglock ensures reliable access control for residential and commercial applications. Its versatile design allows for face or surface mounting, accommodating various installation needs. Engineered for durability, the E-946FC-600Q features a waterproof (IP67) and vandal-resistant housing, making it suitable for both indoor and outdoor environments. The attractive stainless steel casing enhances the aesthetic appeal while ensuring long-lasting performance. This maintenance-free, factory-sealed design eliminates the need for frequent upkeep, allowing for worry-free operation. The unit operates on selectable voltages of 12VDC or 24VDC, with a current draw of 500mA at 12VDC and 250mA at 24VDC. It is equipped with MOV surge protection and dual-threaded conduit fittings for easy installation. The 3-foot (91 cm) hookup cord and complete mounting hardware included facilitate a seamless setup process. With an operating temperature range of 14ºF to 131ºF (-10ºC to 55ºC), this maglock is built to withstand various climate conditions. The Seco-Larm E-946FC-600Q comes with a lifetime limited warranty for added peace of mind, applicable in the USA and Canada only.

600lbs Gate Maglock Face/Surface Mount 12/24VDC, Weldable, Indoor/Outdoor, Sliding or Swinging Gate

Features:

• No residual magnetism
• MOV Surge protection
• Face or surface mounting
• For sliding or swinging gates
• Maintenance-free, factory-sealed design
• Waterproof (IP67) and vandal resistant for indoor and outdoor applications
• Dual-threaded conduit fitting
• Attractive stainless steel housing
• 3-ft (91cm) Hookup cord
• Complete mounting hardware for typical installations
• Additional brackets available for easy mounting or atypical situations
• 12/24VDC Selectable
• Lifetime limited warranty - warranty applies in the USA and Canada only.

Specifications:

• Holding Force: 600-lb (272kg)
• Operating Voltage: 12VDC or 24VDC ±10%
• Current Draw: 500mA@12VDC, 250mA@24VDC
• IP Rating: IP67 Waterproof
• Operating Temperature: 14º~131º F (-10º~55º C)
• Electromagnet Dimensions: 8" x 1-11/16" x 1-9/16" (203 x 43 x 40mm)
• Armature Dimensions: 7-1/4" x 1-5/8" x 9/16" (184 x 41 x 14mm)
• Weight: 6-lb (2.7kg)

Accessories:

• E-942F-600/AP: Armature plate for 600-lb series outdoor electromagnetic locks
• E-942F-600/L: L-Brackets for 600-lb series outdoor electromagnetic locks
• E-942F-600/Z: Z-Bracket for 600-lb series outdoor electromagnetic locks
• SD-969-M18/S: Gate lock armored door cord
• E-942F-600G/WQ: 600-lb Electromagnetic gate lock weldable bracket
