Seco-Larm EAP-1D1Q Access Control Power Supply in Enclosure offers a robust solution for your access control needs, accommodating an input voltage range of 110-240VAC. This power supply features a filtered and electronically regulated output, providing selectable 12/24VDC output at 1A, ensuring reliable performance tailored to your specifications. The unit is equipped with critical safety features, including an AC power failure supervision relay and automatic shutdown for overcurrent protection. Additionally, it includes a built-in backup battery charger (batteries not included) that automatically switches to backup power in the event of an AC failure, enhancing your system's reliability. Installation is straightforward thanks to the heavy-duty steel enclosure with a removable cover, ventilation holes to prevent overheating, and knockouts for power connections. The enclosure can accommodate one 7Ah battery or two 4Ah batteries, allowing for flexibility in backup options. With dimensions of 7-3/4" x 10-1/16" x 3-9/16" and LED status indicators for AC input and output voltages, this power supply is designed for both functionality and ease of monitoring. The selectable delay timer and End-of-Line resistor options further enhance its usability in various applications. Trust Seco-Larm for dependable power supply solutions in access control and security systems.

Access Control Power Supply in Enclosure, 110-240VAC Input, 12/24VDC Output at 1A

Features:

• Input 110-240VAC, fused at 3.15A
• Filtered and electronically regulated output
• AC Input and DC output LED status indicators
• Adjustable output voltage to compensate for voltage drop
• AC power failure supervision relay
• Overcurrent fuse-protected AC input
• Automatic shutdown for overcurrent / short-circuit protection
• 12/24VDC Outputs, field selectable
• Battery failure / low battery supervision relay
• Built-in back-up battery charger (Batteries not included)
• Automatically switch to backup battery if AC fails
• Selectable 2.2k3 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays
• Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch

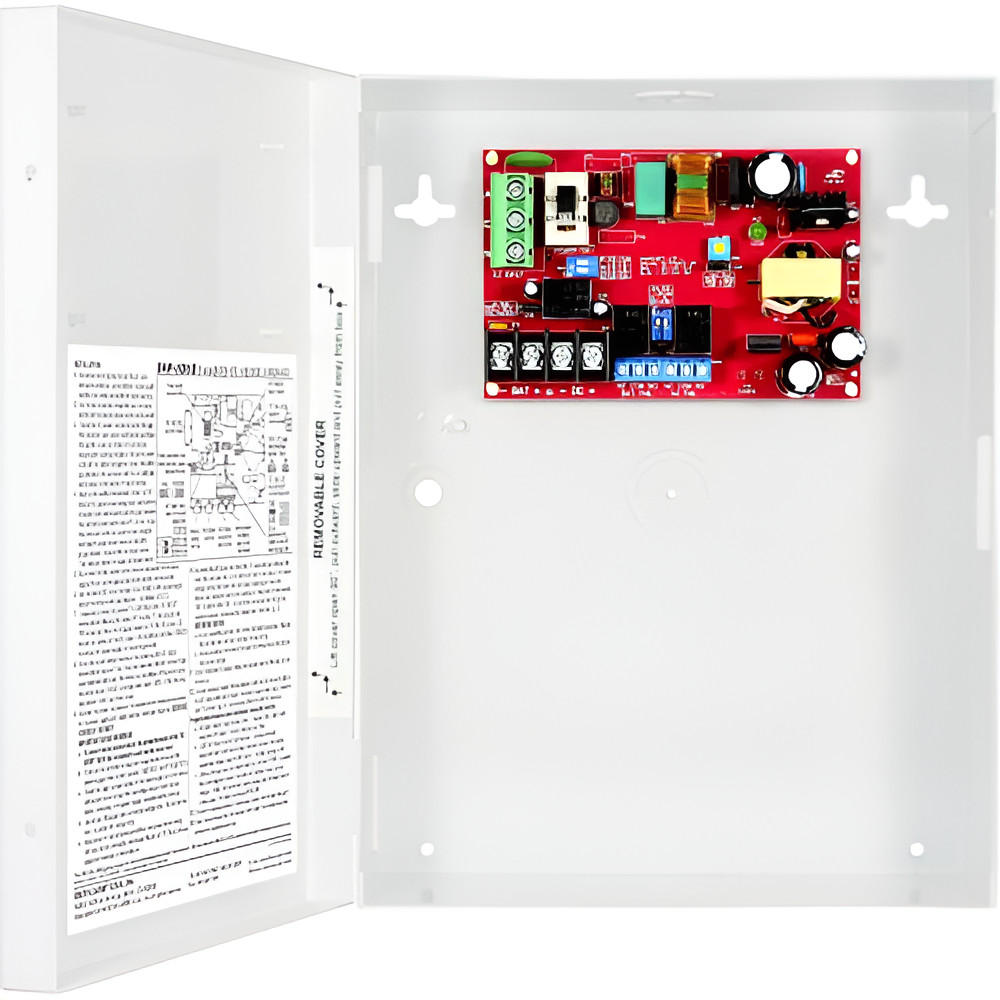

Enclosure:

• Heavy-duty steel case with removable cover for easy access to connections
• Ventilation holes to prevent heat buildup
• Room for one 7Ah battery or two 4AH batteries (batteries not included)
• Knockouts for power connections and optional cam lock
• Dimensions: 7-3/4" x 10-1/16" x 3-9/16"

Specifications:

• Weight: 4lb 1.8oz
• Dimensions: 7-3/4" x 10-1/16" x 3-9/16"
• Input Voltage: 110-240VAC
• Output Voltage: 12 or 24VDC selectable via DIP switch
• Adjustable Output Voltage Range: 12-13 @ 12VDC setting, via VR switch, 23-25 @ 24VDC setting, via VR switch
• Number of Outputs: 1
• Total Supply Current: 1A@12/24VDC
• Input Fuse Rating: 3.15A ( glass fuse, AC)
• LED Status Indicator: AC input (Green), 12VDC Output (Red), 24VDC Output (Blue)
• End-of-Line Resistor (EOL): Selectable on (2.2k3) or off, 3A@24VDC dry relay output
