Seco-Larm EAP-5D1Q Access Control Power Supply Enclosure, 110-240VAC, 12/24VDC Output, 5A/2.5A

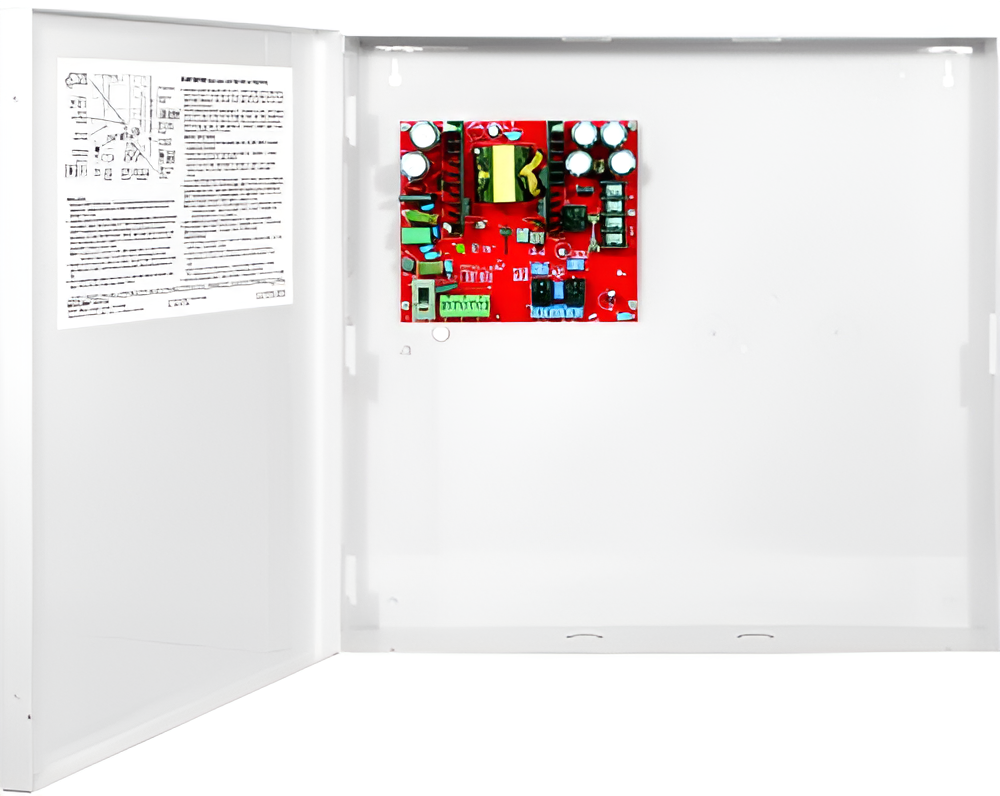

Seco-Larm EAP-5D1Q Access Control Power Supply in Enclosure is engineered to support your access control systems with precision and reliability. Designed for electronic locks and accessories, this power supply centralizes power sources, ensuring consistent operation across your security setup. Featuring an input voltage range of 110-240VAC, the EAP-5D1Q offers selectable outputs of 12VDC or 24VDC, delivering up to 5A at 12VDC or 2.5A at 24VDC. The two supervision relays are invaluable for integrating with alarm control panels, while robust fault response mechanisms include gradual shutdown during overloads and immediate shutdown in the event of a short circuit, indicated by a flashing red LED for easy monitoring. The heavy-duty steel enclosure not only protects the unit but is spacious enough to accommodate two 12V/12Ah batteries, providing a built-in backup battery charger (battery not included). With adjustable voltage compensation, LED status indicators, and selectable delay timers for AC failure supervision, the EAP-5D1Q is a comprehensive solution for safeguarding your premises. Dimensions are 14-13/16" x 14-5/16" x 41/8" (377 x 363 x 105 mm), and the unit includes a 6ft power cord and battery leads, making installation straightforward and efficient.

Access Control Power Supply in Enclosure, 110-240VAC Input, 12/24VDC Output at 5A/12VDC or 2.5A/24VDC

The EAP-5D1Q power supply is specifically designed for an access control system’s electronic locks and accessories. The power supply centralizes the power sources of access control equipment. It includes two supervision relays that can be used to integrate with other systems such as an alarm control panel. Robust fault response and indication also includes gradual shutdown on output overload as well as immediate shutdown on output short, signaled by flashing red LED and with auto-recovery once output short or overload is removed.

Features:

• AC Power failure supervision relay
• Battery failure / low battery supervision relay
• Auxiliary output relay
• Relays rated 3A@24VDC, 3A@120VAC
• Adjustable voltage range to compensate for voltage drop
• Built-in backup battery charger (battery not included)
• Selectable 2.2k 9 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays via DIP switch
• Selectable delay timer (5 seconds, 5 minutes, 5 hours) for AC failure supervision relay via DIP switch
• LED Status indicator for AC input, DC output and channel outputs

Power:

• Field selectable for 12VDC or 24VDC output
• Operating Input voltage: 110~240 VAC
• Field-selectable 12 or 24 VDC output
• Total continuous output current: 5A@12VDC, 2.5A@24VDC
• AC Input fuse rated at 3.15A

Enclosure:

• Heavy-duty steel case with ventilation holes
• Enclosure large enough to fit two (2) 12V/12Ah batteries
• Removable steel cover for easy access to power connections
• 6ft Power cord and battery leads included
• Dimensions: 14-13/16" x 14-5/16" x 41/8" (377 x 363 x 105 mm)

Specifications:

• Input Voltage: 110~240VAC
• Output Voltage: 12 or 24VDC selectable via DIP switch
• Adjustable Output Voltage Range: 12~13 @ 12VDC setting, via VR switch, 23~25 @ 24VDC setting, via VR switch
• Number of Outputs: 1
• Total Supply Current: 5A@12VDC / 2.5A@24VDC
• Input Fuse Rating: 3.15A (glass fuse, AC)
• LED Status Indicator: AC input (green), DC output (red)
• End-of-Line Resistor (EOL): Selectable on (2.2KΩ) or off via DIP switch
• AC-Fail Relay Delay Timer: Selectable @ 5sec, 5min or 5hr via DIP switch
• Supervision Relays: Contact rating: 3A@24VDC Dry relay output

Accessories:

• EAP-5D1MQ: Access control power supply module
