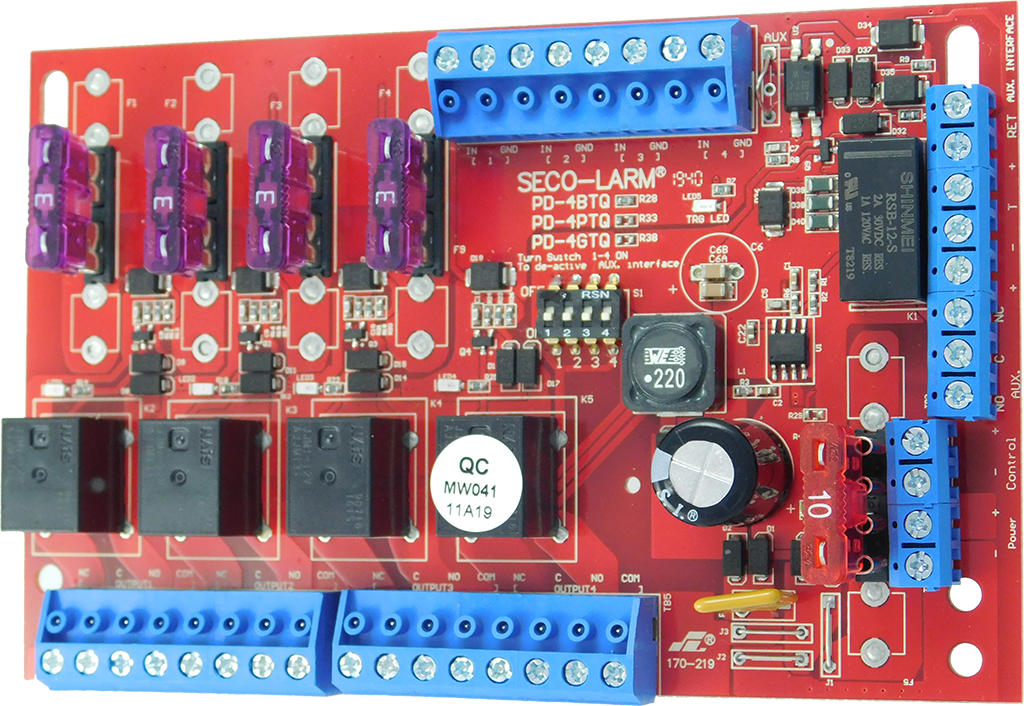

Seco-Larm PD-4BTQ 4-Channel Access Power Controller Board, 12-24V AC/DC, 10 Amp

Seco-Larm PD-4BTQ 4-Channel Access Power Controller Board offers a reliable solution for managing multiple access control devices from a single centralized power source. Designed to operate on 12-24V AC/DC with a robust 10 Amp capacity, this controller board is ideal for electromagnetic locks, electric shear locks, door strikes, and deadbolt locks, ensuring efficient functionality across various systems. This powerful controller features individually fused outputs, allowing for tailored control and safety. Each output can function in both fail-safe and fail-secure modes, while the status LEDs provide real-time feedback on the operation of each channel, including the emergency input. The auxiliary supervision relay enables additional functions like alarm monitoring and emergency egress, further enhancing security measures. With a compact size of 5-3/8" x 3-5/8" x 15/16" and weighing only 4.8 ounces, the PD-4BTQ is designed for easy installation in diverse environments. It operates in extreme conditions, with a temperature range of -40° to 167° F and humidity levels of 0-95%. For those needing more outputs, the PD-8BTQ model provides an 8-output option, making Seco-Larm's product line versatile for any access control application.

4-Channel Access Power Controller Board, 12-24V AC/DC, 10 Amp

Enforcer 4- and 8-output access power controller boards centralize the power sources and gives individual control for various access control locking devices, such as electromagnetic locks, electric shear locks, door strikes, deadbolt locks, and more.

Features:

• Each output individually fused
• Each output can operate in both fail-safe and fail-secure modes
• Each output individually controlled
• Individual output relays (10A@24VDC)
• Output fuses rated at 3.0A ([email protected])
• Individual status LEDs for each output and for emergency input
• Auxiliary supervision relay (1A@28VDC)
• Equipped with dry and wet trigger inputs
• Includes auxiliary interface to enable emergency egress, alarm monitoring, or to trigger other devices
• Includes auxiliary interface disconnect, individually selectable for each output
• Compatible with Enforcer access control power supplies

Specifications:

• Input voltage: 12/24 VAC/VDC
• Input current draw: 10A@24VAC
• Number of outputs: 4
• Output fuse type/rating: Blade 3.0A
• Output relays: Form C (10A@12VDC)
• Auxiliary interface output: DPDT (1A@28VDC)
• LED – Status: 4 (red, on when relay is energized)
• LED – Auxiliary Interface: 1 (green on when auxiliary input is triggered, alarm condition)
• Operating humidity: 0~95%
• Operating temperature: -40°~167° F (-40°~75° C)
• Dimensions: 5-3/8" x 3-5/8" x 15/16" (136 x 92 x 23mm)
• Weight: 4.8-oz (137g)

Accessories:

• PD-8BTQ: Access power controller board, 8-outputs
