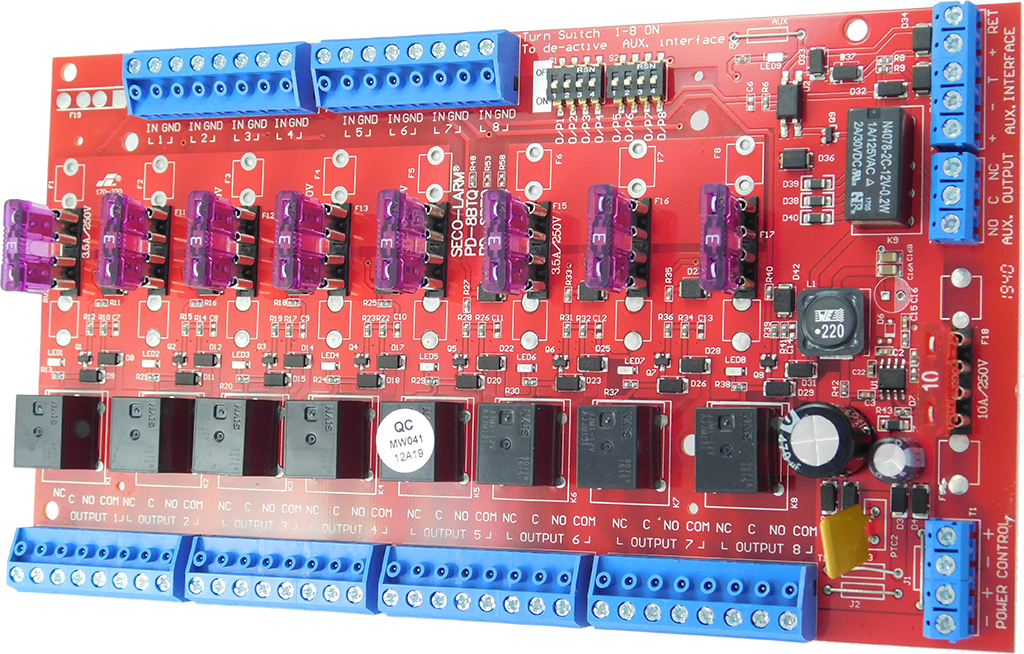

Seco-Larm PD-8BTQ-ISO 8-Channel Access Power Controller Board, 12-24V AC/DC, 10 Amp

Seco-Larm PD-8BTQ-ISO 8-Channel Access Power Controller Board provides a robust solution for centralized power management in access control systems. Designed to support various locking devices, including electromagnetic locks, electric shear locks, and door strikes, this controller board features eight individually controllable and fused outputs, making it ideal for both commercial and residential applications. Each output can function in failsafe or fail-secure modes, allowing for flexible security setups. The board supports a maximum input voltage of 1-2/24 VAC/VDC and can handle 10A at 24VAC, ensuring reliable operation under demanding conditions. Individual status LEDs for each output and emergency input provide real-time monitoring, while the auxiliary supervision relay adds an extra layer of security. With both wet and dry trigger inputs, the PD-8BTQ-ISO allows for emergency activation and integrates seamlessly with Enforcer access control power supplies. Its auxiliary interface can be customized for emergency egress, alarm monitoring, or triggering additional devices, enhancing the versatility of your security system. Operating effectively in temperatures ranging from -40°F to 167°F and humidity up to 95%, this compact board (8" x 5-1/16" x 1-5/16") is engineered for durability and performance. Choose the Seco-Larm PD-8BTQ-ISO for a reliable and efficient access control solution.

8-Channel Access Power Controller Board, 12-24V AC/DC, 10 Amp

The Enforcer 8-output access power controller board centralizes the power sources and gives individual control for various access control locking devices, such as electromagnetic locks, electric shear locks, door strikes, deadbolt locks, and more. Each output is individually controllable, individually fused, and with individual status LEDs. Each output can operate in failsafe or fail-secure modes. Each board includes wet and dry trigger inputs for emergency activation and includes power failure supervision relays and auxiliary supervision relays.

Features:

• Each output individually fused
• Each output can operate in both fail-safe and fail-secure modes
• Each output individually controlled
• Individual output relays (10A@24VDC)
• Output fuses rated at 3.0A ([email protected])
• Individual status LEDs for each output and for emergency input
• Auxiliary supervision relay (1A@28VDC)
• Equipped with dry and wet trigger inputs
• Includes auxiliary interface to enable emergency egress, alarm monitoring, or to trigger other devices
• Includes auxiliary interface disconnect, individually selectable for each output
• Compatible with Enforcer access control power supplies

Specifications:

• Input voltage: 1-2/24 VAC/VDC
• Input Current Draw: 10A@24VAC
• Number of Outputs: 8
• Output Fuse Type/Rating: Blade 3.0A
• Output Relays: Form C (10A@12VDC)
• Auxiliary Interface Output: DPDT (1A@28VDC)
• LED – Status: 8 (red, on when relay is energized)
• LED – Auxiliary Interface: 1 (green on when auxiliary input is triggered, alarm condition)
• Operating Humidity: 0~95%
• Operating Temperature: -40°~167° F (-40°~75° C)
• Dimensions: 8" x 5-1/16" x 1-5/16" (204 x 129 x 23mm)
• Weight: 8.9-oz (252g)

Accessories:

• PD-4BTQ: Access power controller board, 4-outputs
