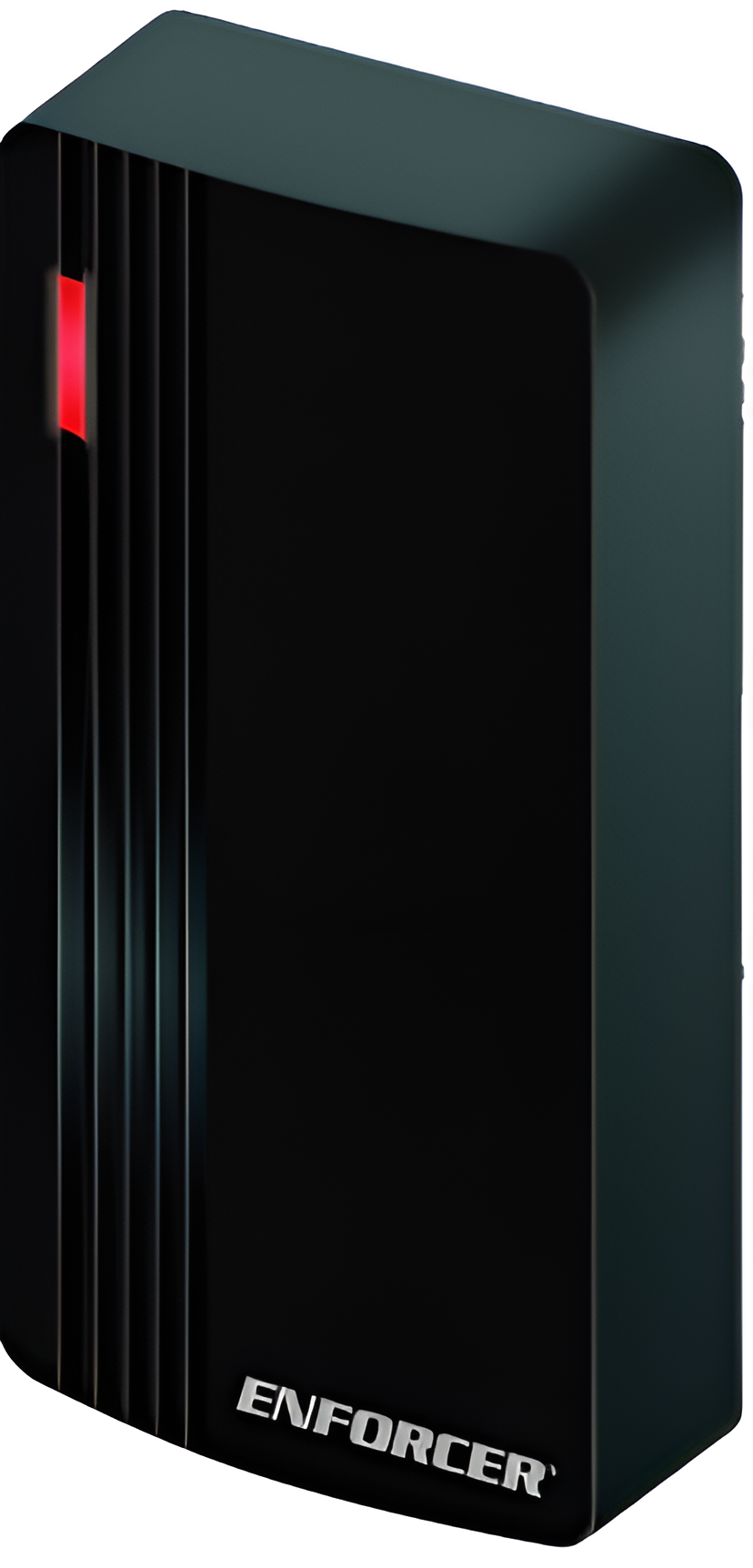

Seco-Larm PR-2121-PQ Mini Wiegand Prox, EM 26 Bit 125khz, 10 Cards Included, 9-24VDC, IP66

Seco-Larm PR-2121-PQ Mini Wiegand Prox is an advanced access control solution designed for both residential and commercial applications. This robust proximity reader operates with a voltage range of 9 to 24 VDC and features a low current draw of only 50mA at maximum load, ensuring energy efficiency. The PR-2121-PQ comes equipped with a built-in buzzer for external alarm input and a multicolor status LED for clear operational feedback. Designed to withstand the elements, this weatherproof unit boasts an IP66 rating, making it suitable for outdoor installations. With an extreme cold tolerance down to -40°F, it remains reliable even in harsh weather conditions. The reader supports EM 125 kHz technology and comes with 10 user proximity cards, providing immediate functionality upon installation. The dimensions of the PR-2121-PQ are compact, measuring 1-7/16" x 2-3/4" x 11/16" (37 x 70 x 17mm) and weighing just 1.7 oz (48g), making it easy to mount discreetly. Its sturdy black ABS plastic housing ensures durability while maintaining a sleek appearance. With a card read range of 0–2" (0–5 cm), this reader is perfect for high-security environments. Enhance your security system with the reliable performance of the Seco-Larm PR-2121-PQ Mini Wiegand Prox reader.

Mini Wiegand Prox, EM 26 Bit 125khz, 10 Cards Included, 9-24VDC, IP66

Features:

• 9~24 VDC Operation
• Low current draw – 50mA max.
• Built-in buzzer for external alarm input
• Multicolor status LED
• EM 125 kHz
• 10 User proximity cards included
• Weatherproof – IP66
• Extreme cold tolerance to -40° F (-40° C)
• Wiegand output reader – EM 26 bits
• Sturdy black ABS plastic housing

Specifications:

• Operating Voltage: 9~24 VDC
• Current Draw – Standby: 20mA@12VDC
• Current Draw – Active: 50mA@12VDC (max.)
• Outputs – Wiegand: EM – 26 bits
• Card type: 125kHz EM
• Card read range: 0~2" (0~5 cm)
• IP Rating: Weatherproof IP66
• Enclosure material: Black ABS plastic
• Operating temperature: -40°~140° F (-40°~60° C)
• Operating humidity: 10~98% non-condensing
• Dimensions: 1-7/16" x 2-3/4" x 11/16" (37 x 70 x 17mm)
• Weight: 1.7-oz (48g)

Accessories:

• PR-K1K1-AQ: Proximity keyfobs
• PR-K1S1-A: Proximity cards for prox readers
