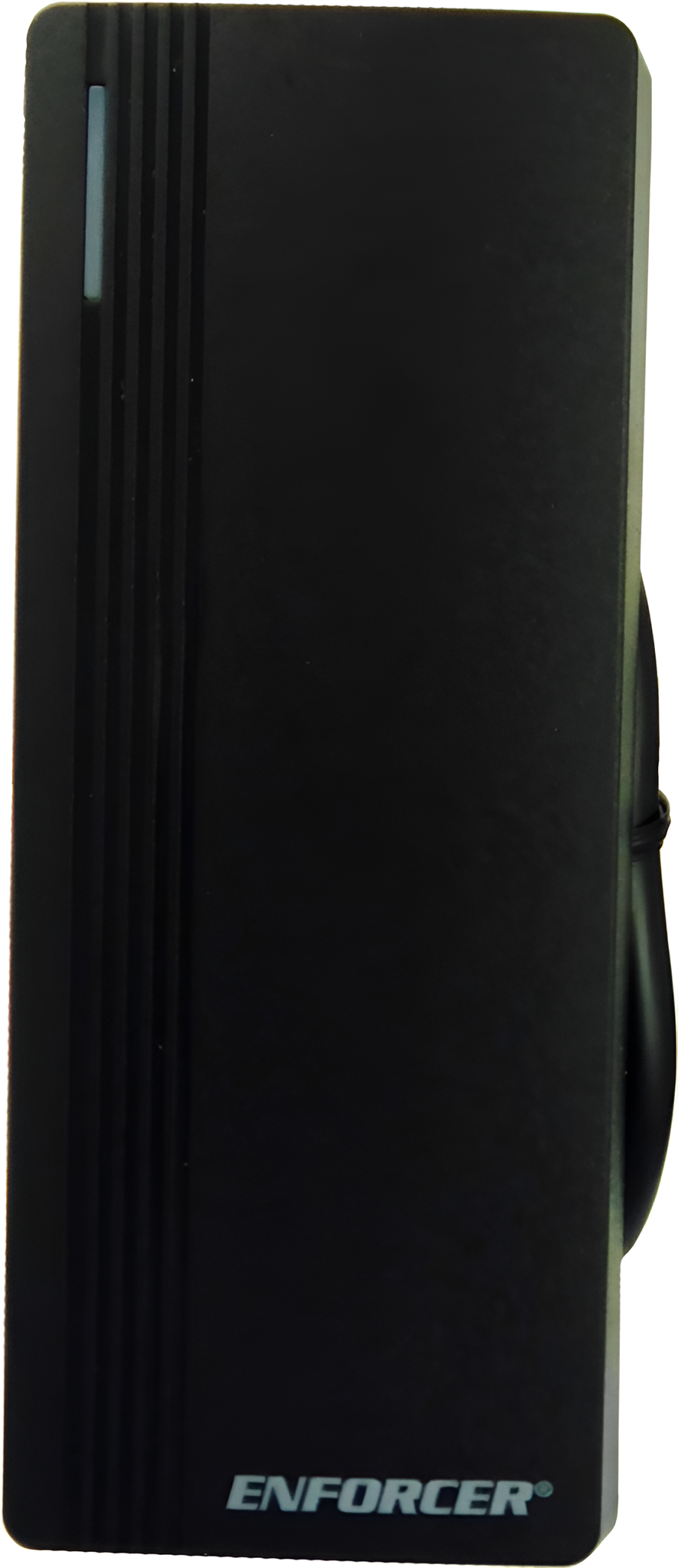

Seco-Larm PR-3123-PQ Mullion Wiegand Prox Reader, EM 26 Bit, 1000 Users, IP66, 9-24VDC

Seco-Larm PR-3123-PQ Stand-Alone Mullion Wiegand Prox Reader is a robust and efficient solution designed for modern access control systems. This versatile reader operates as both a stand-alone controller and a Wiegand reader, making it an ideal choice for a variety of security applications. With a capacity to support up to 1,000 users and the ability to bulk add multiple cards, managing access in large organizations becomes a seamless task. Featuring an IP66 weatherproof rating, the PR-3123-PQ is built to withstand outdoor conditions, ensuring reliable performance in any environment. The low current draw of 120mA max during active use and 30mA in standby mode allows for energy-efficient operation. Additionally, it includes a built-in tamper alarm and an external alarm output for enhanced security. This proximity reader supports EM 125kHz cards and offers a Form C relay output rated up to 2A@12VDC. Its compact dimensions (1-7/8" x 4-5/8" x 13/16") and lightweight design (5 oz) make installation easy. With an operating temperature range of -40° to 140°F and humidity tolerances of 0-98% non-condensing, the Seco-Larm PR-3123-PQ is engineered for durability and performance.

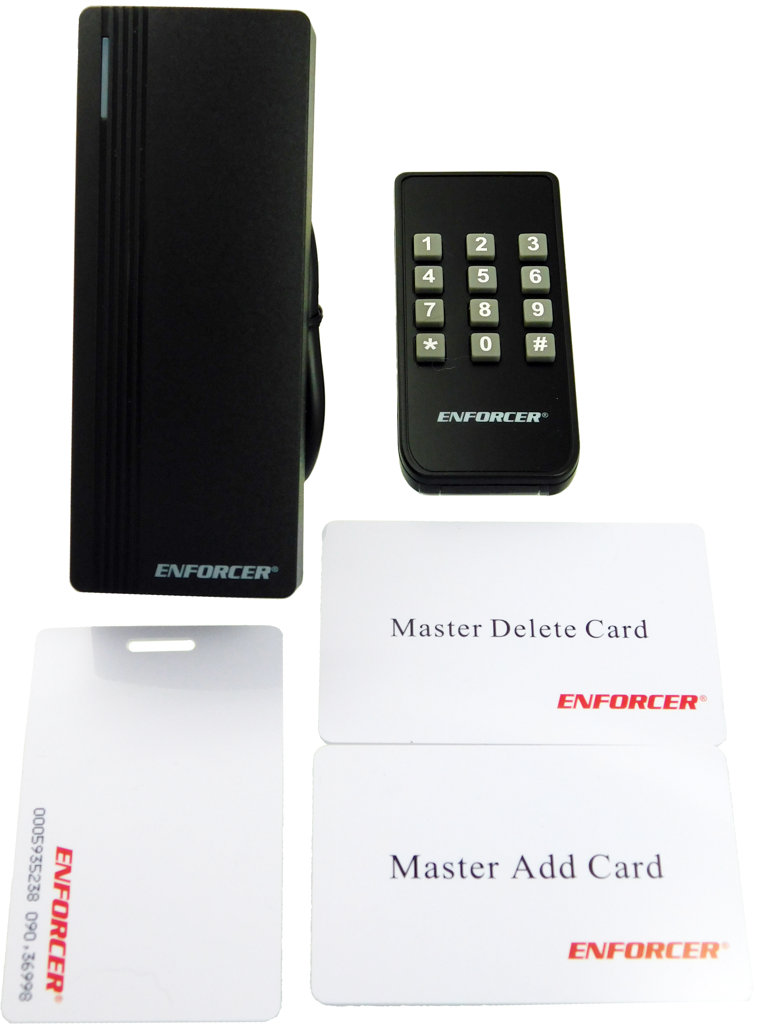

Stand-Alone Mullion Wiegand Prox Reader, EM 26 Bit 125khz, 1000 Users, 10 Cards Included, 9-24VDC, IP66

The Enforcer stand-alone / Wiegand proximity reader is an advanced security solution that offers both efficiency and convenience. This versatile device can function as a stand-alone controller or a Wiegand reader. The reader’s unique feature of adding multiple cards in bulk at once significantly streamlines access control management in large organizations.

Features:

• Low current draw – 120mA max.
• Form C relay output – 2A@12VDC
• Built-in tamper alarm and external alarm output
• Outdoor rated – IP66 weatherproof
• Can serve as Wiegand output reader or controller, output and input – 26~44 bits
• EM 125kHz Proximity card reader
• 2-Door interlock
• Easy duplication of users to additional devices
• Bulk adding of multiple cards at a time

Specifications:

• Operating Voltage: 12~18 VDC
• Current Draw – Standby: 30mA@12VDC
• Current Draw – Active: 120mA@12VDC (max.)
• Outputs – Form C: 2A@12VDC
• Outputs – Alarm: 2A@12VDC
• Outputs – Wiegand: 26~44 bits
• Inputs: Wiegand: 26~44 bits, pin input – 4, 8, or 10 bits
• Card type: 125kHz EM
• Enclosure material: Black ABS plastic
• Operating temperature: -40°~140° F (-40°~60° C)
• Operating humidity: 0~98% non-condensing
• Dimensions: 1-7/8" x 4-5/8" x 13/16" (48 x 117 x 20mm)
• Weight: 5-oz (140g)

Accessories:

• PR-K1K1-AQ: Proximity keyfobs
• PR-K1S1-A: Proximity cards for prox readers
