Seco-Larm PR-3125-PQ Single Gang Wiegand Prox Reader, EM 26 Bit, 1000 Users, IP66, 9-24VDC

Seco-Larm PR-3125-PQ Stand-Alone Single Gang Wiegand Prox Reader is an efficient and flexible security solution designed for modern access control needs. This versatile device can operate as both a stand-alone controller and a Wiegand reader, making it ideal for various applications, particularly in larger organizations where streamlined access management is crucial. With the capability to support up to 1,000 users and the convenience of bulk card addition, the PR-3125-PQ simplifies user management. The device operates on a voltage range of 9-24VDC and features a low current draw of just 120mA maximum, ensuring energy efficiency. Its outdoor-rated IP66 weatherproof design guarantees reliability in various environmental conditions, while the built-in tamper alarm and external alarm output enhance security measures. The reader is compatible with 125kHz EM proximity cards and supports Wiegand output of 26 to 44 bits, offering flexibility in integration with existing systems. With a form C relay output capable of handling 2A@12VDC, it provides robust control options. The operating temperature range of -40°F to 140°F (-40°C to 60°C) and high humidity tolerance of 0-98% non-condensing further ensure adaptability in diverse settings. The Seco-Larm PR-3125-PQ is a reliable choice for those seeking a high-performance access control solution.

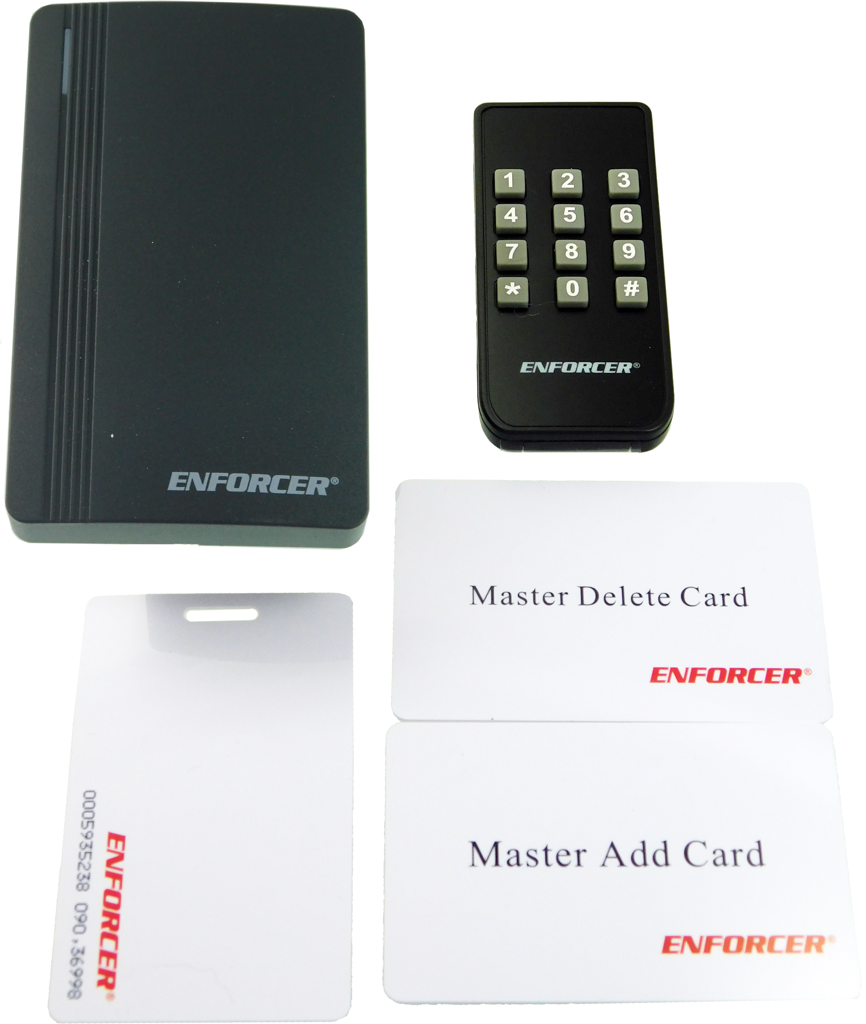

Stand-Alone Single Gang Wiegand Prox Reader, EM 26 Bit 125khz, 1000 Users, 10 Cards Included, 9-24VDC, IP66

The Enforcer stand-alone /Wiegand proximity reader is an advanced security solution that offers both efficiency and convenience. This versatile device can function as a stand-alone controller or a Wiegand reader. The reader’s unique feature of adding multiple cards in bulk at once significantly streamlines access control management in large organizations.

Features:

• Low current draw – 120mA max.
• Form C relay output – 2A@12VDC
• Built-in tamper alarm and external alarm output
• Outdoor rated – IP66 weatherproof
• Can serve as Wiegand output reader or controller, output and input – 26~44 bits
• EM 125kHz Proximity card reader
• 2-Door interlock
• Easy duplication of users to additional devices
• Bulk adding of multiple cards at a time

Specifications:

• Operating Voltage: 12~18 VDC
• Current Draw – Standby: 30mA@12VDC
• Current Draw – Active: 120mA@12VDC (max.)
• Outputs – Form C: 2A@12VDC
• Outputs – Alarm: 2A@12VDC
• Outputs – Wiegand: 26~44 bits
• Inputs: Wiegand: 26~44 bits, pin input – 4, 8, or 10 bits
• Card type: 125kHz EM
• Enclosure material: Black ABS plastic
• Operating temperature: -40°~140° F (-40°~60° C)
• Operating humidity: 0~98% non-condensing
• Dimensions: 2-15/16" x 4-5/8" x 13/16" (75 x 117 x 20mm)
• Weight: 7-oz (200g)

Accessories:

• PR-K1K1-AQ: Proximity keyfobs
• PR-K1S1-A: Proximity cards for prox readers
