Seco-Larm SA-025Q Programmable Timer with Case offers versatility for a variety of timed security and access control applications. This programmable timer module can be set from 1 second to a maximum of 60 minutes, making it adaptable for numerous operational needs. Featuring auto-sensing input voltage and user-friendly DIP switches for programming, the installation process is streamlined and efficient. The SA-025Q can be triggered by either a normally open (N.O.) positive trigger signal or a normally closed (N.C.) negative device, in addition to activating upon powering up the unit. Users can choose to have the relay activate at the start or end of the timing cycle, or even pulse for just one second at the end. A built-in reset function allows for manual resets of the timing cycle, enhancing its usability. Equipped with a Form-C relay rated for 10A at 24VDC or 250VAC, the timer runs on a 12-24VDC power supply and draws less than 1mA on standby, or 40mA when the relay is energized. Operating in a wide temperature range from -40°F to 185°F and humidity levels of 5-95% non-condensing, the SA-025Q is designed for durability. Its compact dimensions of 2-11/16" x 3-1/4" x 1-1/16" (68 x 83 x 27.5mm) ensure it fits seamlessly into any application.

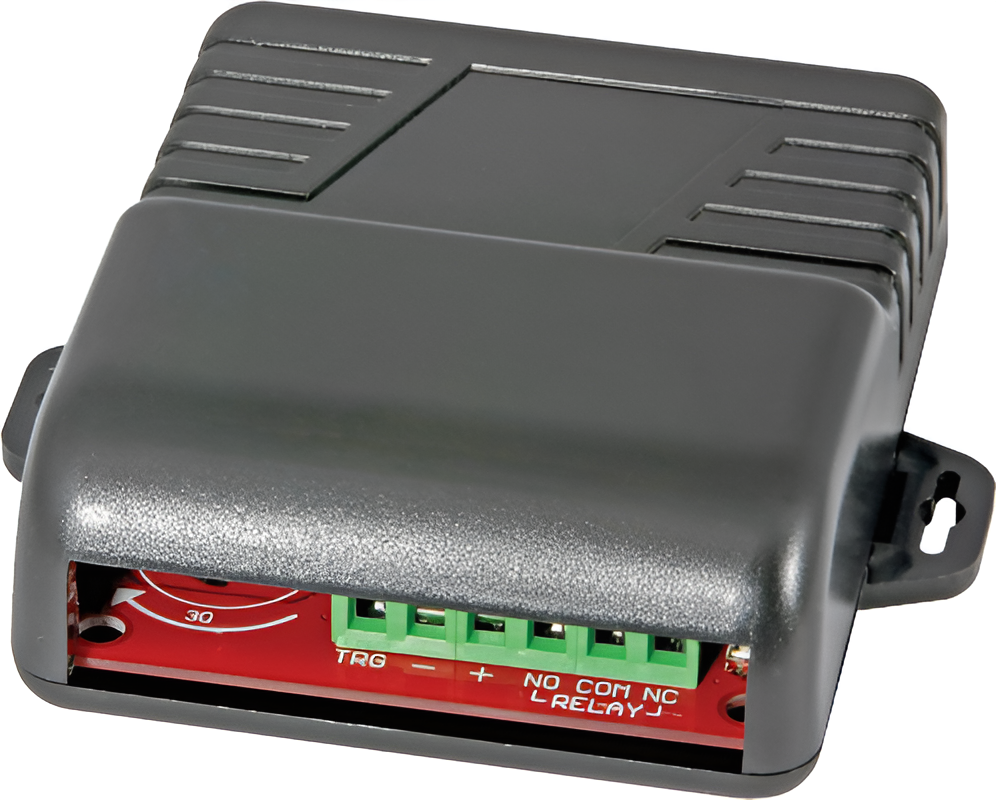

Programmable Timer with Case, 1 Second - 60 Minutes, 12/24VDC

The SA-025Q programmable timer module is suitable for a wide range of timed security and access control operations. Auto-sensing of input voltage and DIP switches for programming make installation easy.

Features:

• Timer can be set from 1 second to 60 minutes
• Can be triggered via an N.O. positive (+) trigger input signal or an N.C. negative (-) trigger device or by powering up the unit
• Relay can be programmed to activate at the start or at the end of the timing cycle
• Relay can also be set to activate for one second at the end of the timing cycle
• Relay can be programmed to pulse (flash) or be steady on
• Built-in reset function to manually reset timing cycle
• Form-C relay, contact rated 10A@24VDC/250VAC
• LED indicates relay is energized
• 12~24VDC operation (auto sensing)
• Current draw – Less than 1mA (standby) or 40mA (relay energized)

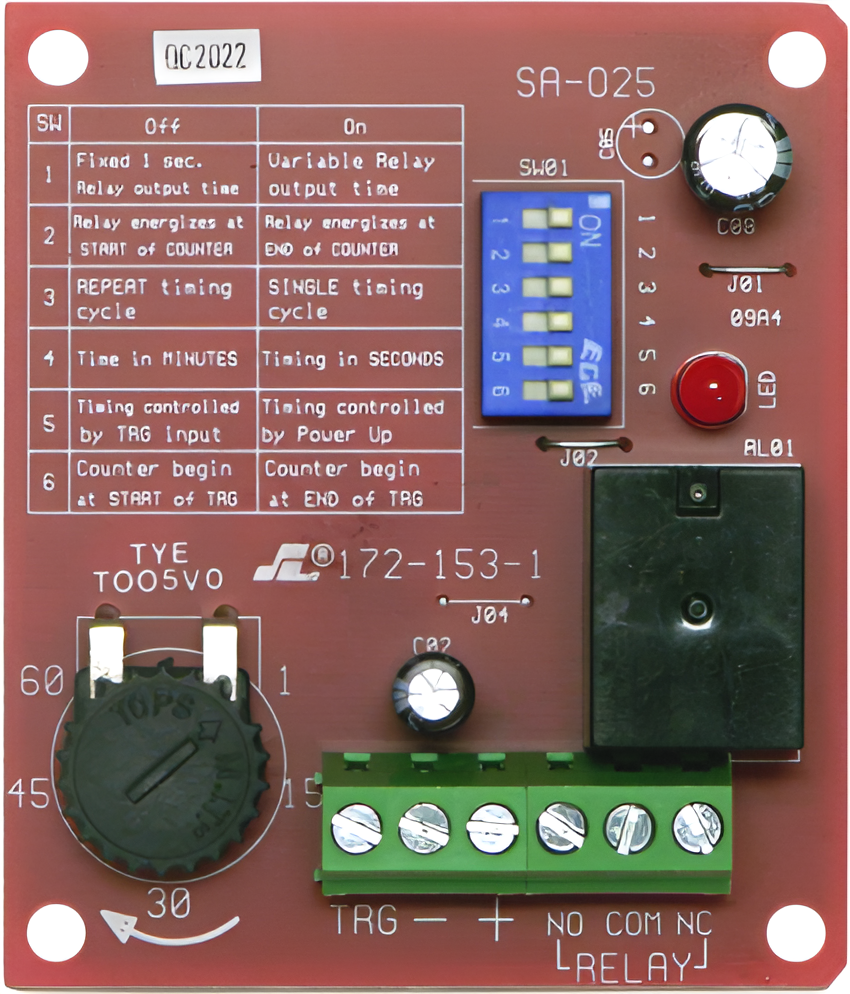

• Functions programmed via DIP switches – no jumpers to cut

Specifications:

• Operating Voltage: 12~24 VDC (auto sensing)
• Current Draw: Active: 40mA@12VDC, 80mA@24VDC
• Relay contact: 1x Form C NO/NC/COM, 10A@24VDC/250VAC
• LED Indicator: 1x, Indicates relay is triggered
• Operating humidity: 5~95% non-condensing
• Operating temperature: -40°~185° F (-40°~85° C)
• Dimensions: 2-11/16" x 3-1/4" x 1-1/16" (68 x 83 x 27.5mm)
• Weight: 3.2-oz (93g)
