Seco-Larm SA-027WQ 7-Day Programmable Timer, 1 Relay, LCD, 60 Events, 1-99 Secs

Seco-Larm SA-027WQ Programmable 7-Day Timer with 1 Relay is designed to enhance your security, access control, and environmental management solutions. This versatile timer allows for up to 60 programmable events, enabling daily, weekly, or hourly scheduling to meet diverse operational needs. Its wide operating voltage range of 10-48 VDC and 12-24 VAC ensures compatibility with various systems. The SA-027WQ features a single Form C relay rated for 10A@14VDC, ideal for controlling lighting or access points. A unique first-person-in function interrupts normal operations, offering flexibility in managing access. The built-in programmable holiday feature allows for a temporary pause in the timer’s operation, making it perfect for seasonal adjustments. With EEPROM memory, your settings are safeguarded against power failures, and a built-in super capacitor retains time and date for 5-10 days without the need for a clock battery. The large, alphanumeric backlit LCD display simplifies programming, while passcode protection enhances security. Additionally, the timer supports an easy 1-hour offset for daylight savings adjustments. Operating in temperatures from -4° to 167°F, the Seco-Larm SA-027WQ is a reliable choice for any professional looking to streamline their access control systems.

Programmable 7-Day Timer with 1 Relay, LCD Display, up to 60 Events, 1-99 Seconds

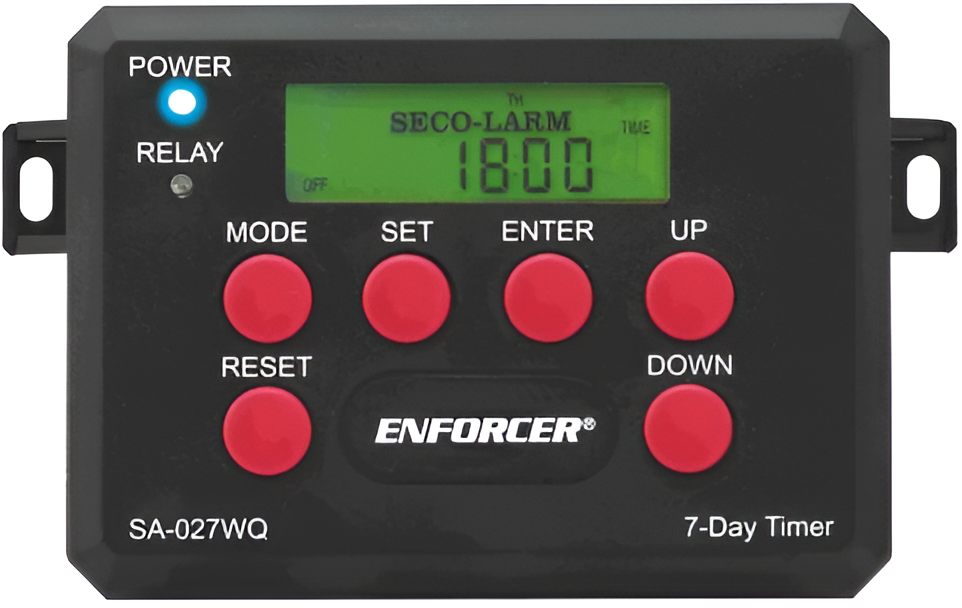

The Enforcer SA-027WQ 7-day timer can be programmed to operate a form C relay 24 hours a day on a weekly basis for various applications including security, access control, lighting, and environmental control. The relay can be programmed for up to 60 events with each event on a weekly or daily schedule. A programmable holiday disables the timer for a single day weekly.

Features:

• Wide operating voltage range – 10~48 VDC, 12~24 VAC
• One (1) N.O. or N.C. Form C relay, 10A@14VDC, with an egress input
• First-person-in (first-man-in, FM) function interrupts the normal operation of the timer
• 60 Programmable events set weekly, daily, or hourly, over a week
• Programmable holiday event – holiday from 1~31 days in duration
• EEPROM Memory for safe data protection in case of power failure
• No clock battery to replace – built-in super capacitor saves date/time 5-10 days after power loss
• Easy troubleshooting status checks – relay test, power input voltage
• Passcode protection can be turned on or off
• Event outputs can be programmed to disable, on, off, shunt, or momentary (1~99 seconds)
• Enable/disable 1-hour offset as a quick setting during daylight savings time
• Large alphanumeric white backlit LCD display for easy programming

Specifications:

• Operating Voltage: 10~48 VDC / 12~24 VAC
• Number of Relays: 2 Form C
• Relay Rating: 10A@14VDC
• Relay active current draw: 110mA@12VDC ±10% (per channel)
• Standby current draw: 14mA@12VDC ±10%
• Backup battery type: 12VDC (supports lead-acid compatible battery, not included)
• Battery charge: Smart charge, 50mA max., when battery is ≥11.5V and ≤12.8V
• Event capacity: 60 per relay
• Operating temperature: -4°~167° F (-20°~75° C)
• Dimensions: 4-1/8" x 3" x 15/16" (105 x 76 x 33mm)
• Weight: 5.6-oz (158g)
