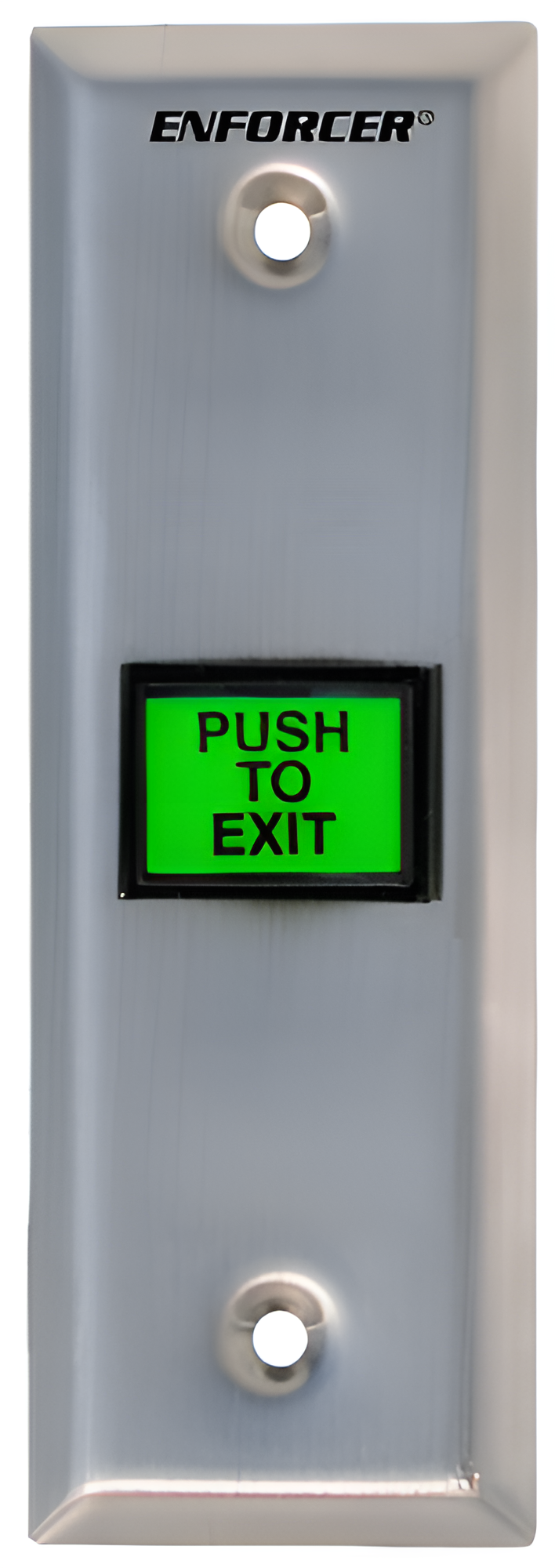

Seco-Larm SD-7103GC-PEQ Slim Illuminated Green Push-to-Exit Wall Plate, SPDT, 12-24V ACDC

Seco-Larm SD-7103GC-PEQ Slim Illuminated Green Push-to-Exit Wall Plate offers a reliable and user-friendly solution for access control. Designed for both commercial and residential applications, this push button features a clear "Push to Exit" caption, ensuring intuitive operation for users. The message can be easily changed to Spanish or French in the field, accommodating diverse environments. Constructed with a durable stainless-steel slimline plate, this wall plate is not only aesthetically pleasing but also built to withstand various conditions. The rubber-sealed switch is ETL and UL approved, providing excellent protection against liquid penetration, making it ideal for outdoor installations when properly mounted. With a long-life green LED rated for approximately 35,000 hours, users benefit from low maintenance and high visibility. The momentary switch features DPST, NO/NC contacts rated at 5A@24VAC maximum, ensuring reliable performance. The dimensions of the plate are 4-1/2" x 1-1/2" x 1-15/16" (114 x 38 x 49mm), and it comes with six colored 12-inch wire leads equipped with easy-to-attach spade lugs, facilitating quick installation. Enhance your security system with the dependable Seco-Larm SD-7103GC-PEQ.

Slim Illuminated Green Push-to-Exit Wall Plate, SPDT, 12-24V ACDC

Features:

• ETL, Conforms to UL Std. 294
• Square illuminated push button with caption "Push to Exit"
• Message language can be easily changed in the field to Spanish or French
• CE and UL approved switch is rubber-sealed to prevent liquid penetration
• Includes stainless-steel slimline plate
• Includes six colored 12-inch wire leads with easy to-attach spade lugs for fast installation
• Long-life green LED 12/24 VAC/VDC (~35,000hr)
• Weather resistant when properly installed
• Momentary switch, DPST, NO/NC contacts rated 5A@24VAC max.

Specifications:

• Contact Rating: NO/NC contacts rated 5A@24VAC
• Material: Stainless-steel
• Dimensions: 4-1/2" x 1-1/2" x 1-15/16" (114 x 38 x 49mm)
