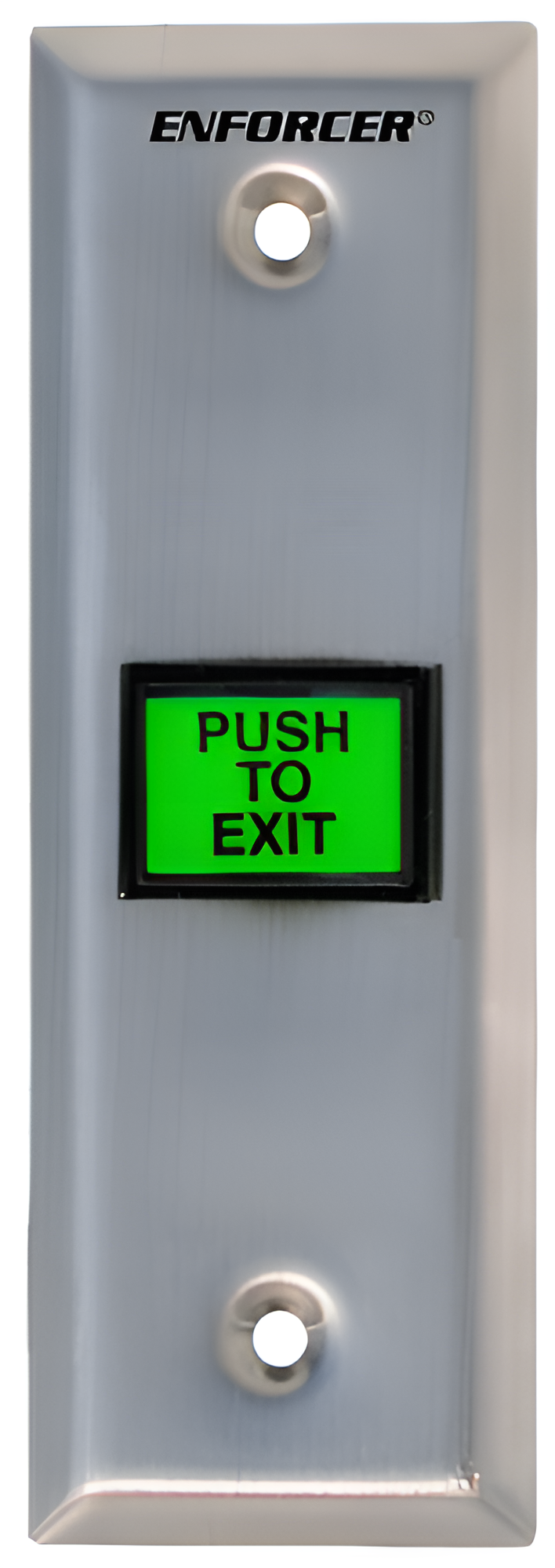

Seco-Larm SD-7103GC-PTQ Slim Green Push-to-Exit Wall Plate with Timer 1-180s, SPDT, 12-24V ACDC

Seco-Larm SD-7103GC-PTQ Slim Illuminated Green Push-to-Exit Wall Plate offers a reliable solution for secure access control in various environments. This ETL-certified device conforms to UL Std. 294 and features a square illuminated push button clearly marked with "push to exit." The message language can be effortlessly switched between English, Spanish, or French, ensuring accessibility for diverse user groups. Constructed with a durable stainless-steel slimline plate, the SD-7103GC-PTQ is designed to withstand the elements when properly installed, making it a weather-resistant option for both indoor and outdoor applications. The unit includes six colored 12-inch wire leads with easy-to-attach spade lugs, enabling swift installation. The push-to-exit plate is equipped with a built-in timer, allowing for adjustable output from 1 to 180 seconds, ensuring flexibility in various security scenarios. The SPDT switch is rated for 3A@24VDC and features a long-life green LED that lasts approximately 35,000 hours. For added functionality, a buzzer output provides an audio status alert, enhancing user awareness. With dimensions of 4-1/2" x 1-1/2" x 1-15/16" (114 x 38 x 49mm), the Seco-Larm SD-7103GC-PTQ is an excellent choice for professionals seeking a robust and efficient access control solution.

Slim Illuminated Green Push-to-Exit Wall Plate, With Timer 1-180 Seconds, SPDT, 12-24V ACDC

Features:

• ETL, Conforms to UL Std. 294
• Square illuminated push button with caption "push to exit"
• Message language can be easily changed in the field to Spanish or French
• CE and UL approved switch is rubber-sealed to prevent liquid penetration
• Includes stainless-steel slimline plate
• Includes six colored 12-inch wire leads with easy to-attach spade lugs for fast installation
• Long-life green LED 12/24 VAC/VDC (~35,000hr)
• Weather resistant when properly installed
• Timed output from 1~180 s
• SPDT Switch rated 3A@24VDC
• Buzzer output for audio status

Specifications:

• Contact Rating: SPDT Switch rated 3A@24VDC
• Built-in Timer: Yes (1~180 second)
• Material: Stainless-steel
• Dimensions: 4-1/2" x 1-1/2" x 1-15/16" (114 x 38 x 49mm)
