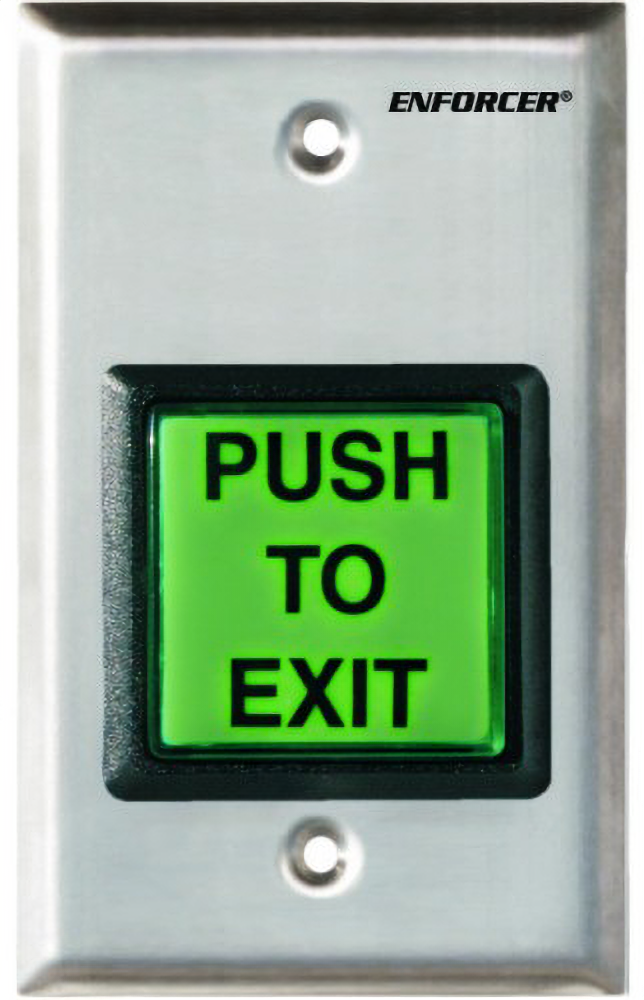

Seco-Larm SD-7202GC-PEQ Single Gang 2in Illuminated Green Exit Button, SPDT, 12-24V AC/DC

Seco-Larm SD-7202GC-PEQ Single Gang 2in Illuminated Green Exit Button offers a reliable and user-friendly solution for secure access control. Designed to enhance safety, this large illuminated pushbutton features a clear "Push to Exit" caption, ensuring visibility in various environments. The button's versatility is further enhanced by the ability to switch the message language between English, Spanish, and French, thanks to the three included interchangeable plates. Built to last, the SD-7202GC-PEQ is ETL certified and conforms to UL Standard 294, making it suitable for a range of applications. Its operational voltage spans from 12 to 24 VDC, with a robust current rating of 50A@24VAC. The button boasts an impressive LED lifespan, providing over 50,000 hours of illumination without the need for resistors. Installation is efficient with the inclusion of five colored 12-inch wire leads, each equipped with easy-to-attach spade lugs. The brushed stainless-steel faceplate enhances durability while maintaining a sleek appearance. With an IP65 rating, this exit button withstands harsh conditions, operating effectively in temperatures from -40°F to 167°F. The compact dimensions of 4-1/2" x 2-3/4" x 2-3/4" make it suitable for a variety of settings, ensuring security and ease of use.

Single Gang 2in Illuminated Green Exit Button, SPDT, 12-24V AC/DC

Features:

• ETL, Conforms to UL Std. 294
• Large illuminated pushbutton with caption "Push to Exit"
• Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
• Pushbutton rated 10A@125_250VAC
• Includes five colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
• LED Gives over 50,000 hours of illumination
• 12/24 VDC: No resistors required
• Includes stainless-steel single-gang plate

Specifications:

• Operating voltage: 12~24VDC
• Current rating: 50A@24VAC
• Faceplate: Brushed stainless
• Destructive attack level: Level I
• Line security: Level I
• Endurance level: Level I
• Standby power: Level I
• Timer and buzzer output: No
• LED status indicator: No
• IP rating: IP65
• Operating temperature: -40°~167° F (-40°~75° C)
• Dimensions: 4-1/2" x 2-3/4" x 2-3/4" (114 x 70 x 70mm)
• Weight: 3.7-oz (105g)

Resources

• Cut Sheet
