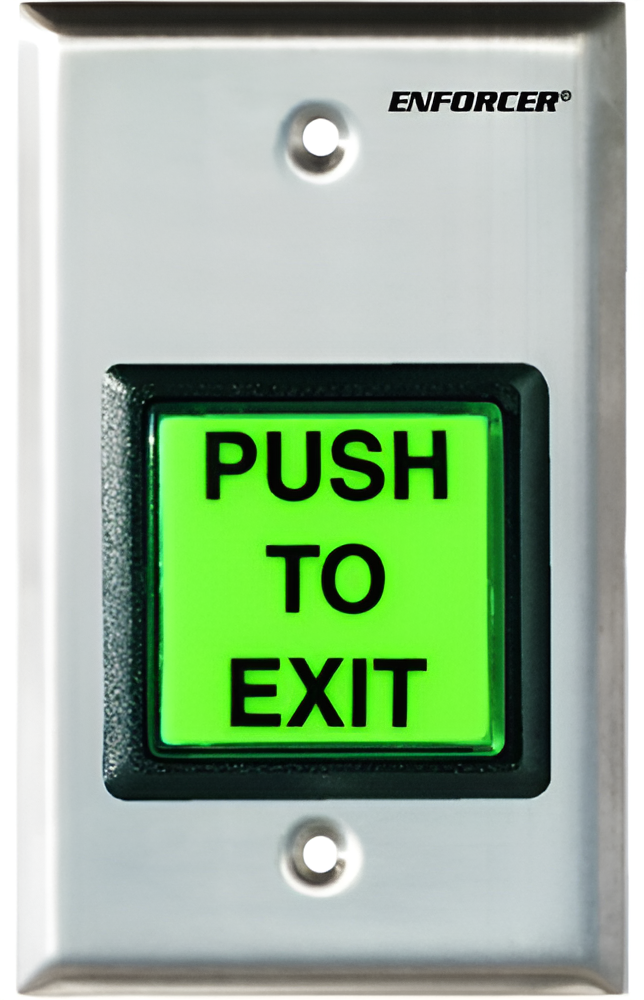

Seco-Larm SD-7202GC-PTQ Illuminated Green Push to Exit Button, Stainless Steel, Timer 1-180s, SPDT

Seco-Larm SD-7202GC-PTQ Single Gang 2in Illuminated Green Push/Request to Exit Button RTE is designed for seamless access control in commercial and residential settings. This illuminated pushbutton features a clear "push to exit" caption, ensuring easy visibility for users. It offers the versatility of switching message languages among English, Spanish, and French with three interchangeable plates included. With an operating voltage of 12-24VDC and a current rating of 3A@24VAC, this device is designed for efficient performance. The integrated timer allows for adjustable output from 1 to 180 seconds, enabling customizable exit delays to meet specific security needs. Additionally, the buzzer output provides an audible status alert, enhancing user awareness. Constructed with a brushed stainless steel faceplate, the SD-7202GC-PTQ not only meets ETL standards and conforms to UL Std. 294 but also ensures durability and a sleek appearance. Installation is straightforward thanks to the five colored 12-inch wire leads with easy-to-attach spade lugs. With a temperature range of -40° to 167°F and a weight of just 4.7 oz, this pushbutton is built to withstand various environments. Enhance your access control system with the reliable and user-friendly Seco-Larm SD-7202GC-PTQ.

Single Gang 2in Illuminated Green Push/Request to Exit Button RTE, Single Gang Wall Plate, Stainless Steel with Timer 1-180 Seconds, SPDT, 12-24V ACDC

Features:

• ETL, Conforms to UL Std. 294
• Large illuminated pushbutton with caption "push to exit
• Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
• Pushbutton rated 3A@24VDC
• Includes five colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
• LED Gives over 50,000 hours of illumination
• 12~24 VDC: No resistors required
• Includes stainless-steel single-gang plate
• Timed output adjustable from 1~180 seconds
• Buzzer output for audible status

Specifications:

• Operating voltage: 12~24VDC
• Current rating: 3A@24VAC
• Faceplate: Brushed stainless
• Destructive attack level: Level I
• Line security: Level I
• Endurance level: Level I
• Standby power: Level I
• Timer and buzzer output:Yes (1-180s)
• LED status indicator: No
• IP rating: N/A
• Operating temperature: -40°~167° F (-40°~75° C)
• Dimensions: 4-1/2" x 2-3/4" x 2-3/4" (114 x 70 x 70mm)
• Weight: 4.7-oz (133g)
