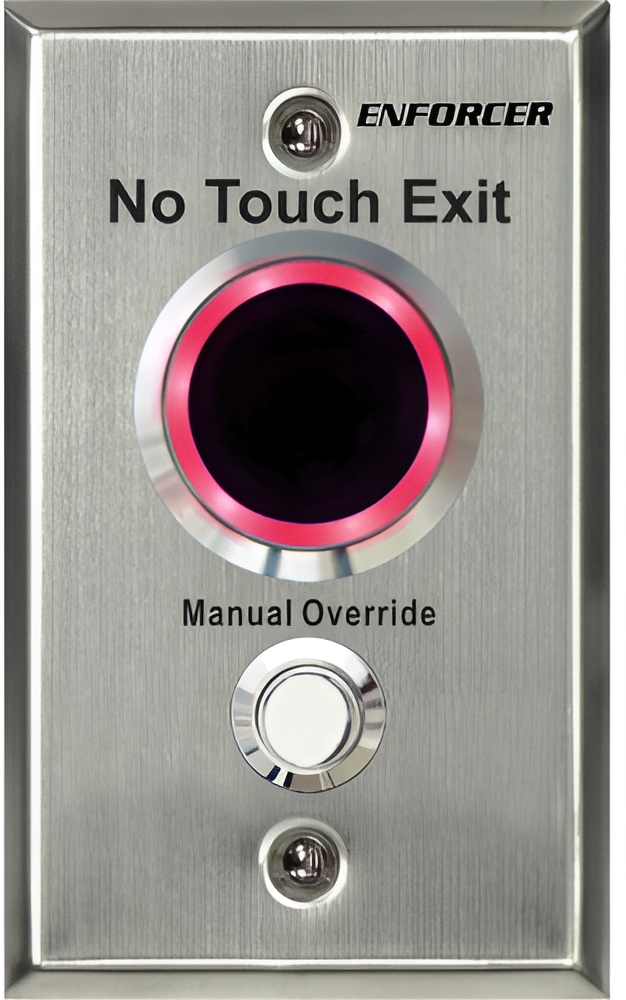

Seco-Larm SD-9263-KSVQ Single Gang Plate Wave-to-Open with Override Button, 12/24VDC

Seco-Larm SD-9263-KSVQ Single Gang Plate Wave-to-Open with Override Button, 12/24VDC offers a convenient, touchless access solution ideal for various environments, including hospitals, schools, and cleanrooms. Utilizing advanced IR technology, this exit plate allows users to activate it effortlessly with a simple wave of the hand, minimizing the risk of contamination and promoting hygiene. This outdoor sensor features an adjustable range of up to 7 inches, ensuring flexibility for different installation needs. Constructed from durable stainless steel, it is weatherproof with an IP65 rating, making it suitable for outdoor use when properly installed. The SD-9263-KSVQ also includes a 1.2A relay with customizable trigger durations ranging from 0.8 to 30 seconds or toggle options, providing tailored functionality for specific applications. The LED illuminated sensor area enhances visibility, while selectable LED colors indicate activation status-turning red to green or vice versa. Operating within a temperature range of -4°F to 131°F, this unit is built to withstand challenging conditions. Compact and lightweight, measuring 2-3/4" x 4-1/2" and weighing only 4.4 ounces, it is a versatile addition to any security setup.

Single Gang Plate Wave-to-Open with Override Button, 12/24VDC

The Enforcer outdoor wave-to-open sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.

Features:

• Adjustable sensor range up to 7" (18cm)
• Stainless steel plate
• Weatherproof (IP65) for outdoor use, when properly installed.
• 1.2A relay, adjustable trigger duration 0.8-30 seconds or toggle
• LED illuminated sensor area for easy identification
• Selectable LED colors (turns from red to green or green to red) to show sensor activated

Specifications:

• Operating temperature: 12~24 VDC
• Current draw (max. ±10%):
• Standby red (12/24 VDC): 18mA/23mA
• Triggered green (12/24 VDC): 23mA/29mA
• Standby green (12/24 VDC): 14mA/18mA
• Triggered red (12/24 VDC): 28mA/35mA
• Relay Type: SPDT dry contact, 1.2A@24VDC
• Response Time: 10ms
• LED: Standby: red, triggered: green
• Output Duration: 0.8~30 s, toggle
• Range: 2"~7" (5~18 cm)
• Destructive Attack Level: Level I
• Line Security: Level I
• Endurance Level: Level IV
• Standby Power: Level I
• IP Rating: Weatherproof, IP65
• Operating Temperature: -4°~131° F (-20°~55° C)
• Dimensions: 2-3/4" x 4-1/2" (70 x 115mm)
• Weight: 4.4-oz (125g)
